Evaporative Emission Standards for Boats

1
Evaporative Emission Standards for Boats

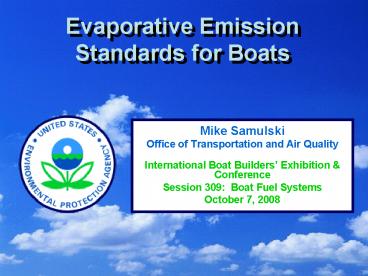

Evaporative EmissionStandards for Boats

• Mike Samulski
• Office of Transportation and Air Quality
• International Boat Builders Exhibition
  Conference
• Session 309 Boat Fuel Systems
• October 7, 2008

2
Outline

• Overview of new program
• Evaporative emission types
• New Standards
• Program details
• Small businesses
• Certification
• Questions

3
Final Rule

• On September 4, 2008, EPA Administrator Steve
  Johnson signed, into law, new exhaust and
  evaporative emission standards for spark-ignition
  marine engines and vessels.
• These standards apply only to new engines and
  vessels sold for use in the United States.
• The standards will help reduce harmful
  health effects of ozone and carbon
  monoxide from these products.

4
Final Standards Overview

• HCNOx exhaust emission standards for SI marine
  engines are similar in stringency to existing
  standards in California
• New CO exhaust emission standards for all SI
  marine engines
• New Not-to-Exceed provisions
• New evaporative emission standards

5
Evaporative Emission Types
Venting emissions (diurnal, hot soak, running
loss)
Refueling/spillage
Permeation (fuel tank, hoses, other)
6
Highway Evap Standards
Three decades of automotive evaporative emission
control (full vehicle test/standards)
Nonroad equipment are just now becoming subject
to evaporative emission control
7
Existing Nonroad Standards

• Component based standards
• Fuel and tank permeation
• Component test for diurnal control
• Design-based certification
• Existing standards
• Large SI equipment (2007)
• Recreational vehicles (2008)
• Portable gas cans (2009)

8
New Standards

• SI Marine
• Portable tanks
• Tank permeation
• Self-sealing vent
• Vessels
• Hose and tank permeation
• Diurnal emissions
• Refueling spillage
• Small SI as well
• Hose and tank permeation
• Running loss

9
Marine Evap Standards
Standard/ Category Hose Permeation Tank Permeation Diurnal
Standard level 15 g/m2/day 1.5 g/m2/day 0.40 g/gal/day
Portable tanks 2009a 2011 2010b
PWC 2009 2011 2010
Other tanks 2009a 2012 2011c,d
a 2011 for primer bulbs. Phase-in for under cowl
fuel lines, by length, on OB engines 30 2010,
60 2011, 90 2012, 100 2015. b Design
standard. c Fuel tanks installed in
nontrailerable boats (gt 26 ft. in length or gt8.5
ft. in width) may meet a standard of 0.16
g/gal/day over an alternative test cycle. d The
standard is effective July 31, 2011. For boats
with installed fuel tanks, this standard is
phased-in 50/100 over the first two years. As
an alternative, small manufacturers may
participate in a diurnal allowance program.
10
Program Details
Hose Permeation
Certification
Tank Permeation
Small Business Provisions
Diurnal
Refueling Spillage
11
Fuel Line Permeation

• Fuel line
• 15 g/m2/day, 2009
• Fuel CE10, 23C
• Boat and engine hose
• Phase-in for under cowl fuel line
• Primer bulbs, 2011
• Vent and fill lines
• Standards do not apply unless hose will hold
  standing fuel
• Fuel line manufacturers will certify

12
Technical Approaches

• Straight-run hose
• Low permeation hose widely available
• Fluoroelastomer/fluoroplastic barriers
• SAE J1527 includes specification for 15 g/m2/day
  hose
• Molded hose and other rubber components
• Fluoroelastomer construction
• Alternative primer bulb products

cover
rubber
barrier layer
reinforcement
13
Fuel Tank Permeation

• 1.5 g/m2/day
• E10 fuel, 28C
• Preconditioning
• Fuel soak
• Durability testing
• Design-based certification
• Metal tanks
• Automotive type multi-layer tanks
• Tank manufacturer will certify

14
Technical Approaches

• Multi-layer constructions
• Alternative materials
• Barrier treatments
• Barrier platelets
• Coatings
• Nanocomposites

15
Diurnal Standards

• Portable fuel tanks
• Self-sealing valve
• Installed tanks
• Trailerable boats (lt26 ft)
• 0.40 g/gal/day
• 25.6-32.2C
• Nontrailerable boats
• 0.16 g/gal/day
• 27.6-30.2C
• Tank manufacturer will certify

16
Technical Approaches

• Design-based certification
• Seal tank (up to 1.0 psi)
• Can use pressure mitigation (e.g. bladder)
• Passive-purge carbon canister
• Prevent fuel from entering canister
• Carbon and canister specifications

canister in boat
17
Refueling

• Fuel nozzle standards
• Marinas must use standard nozzles whenever they
  replace existing nozzles or install new ones
• Same to those already used for motor vehicle
  pumps
• Standardized dimensions
• Automatic shut-off
• System integration
• Fuel systems should be designed to allow flow to
  nozzle for automatic shut-off
• Will help with carbon canister installation
  designs and reduce spillage

18
System Integration

• Industry consensus standards
• SAE J1527 addresses hose permeation
• ABYC H24 potential vehicle for specifying best
  practices for fuel system designs
• NMMA certification
• Canister installation standards
• Industry is developing canister installation
  practices in context of EPA USCG standards
• ABYC is assessing fuel/air separators and fuel
  system designs for spillage control

19
Potential Canister Installation
20
Small Businesses

• Small Business Regulatory Enforcement Fairness
  Act
• Convened SBREFA Panels in 2001 and 2006
• Representatives from engine, boat, tank, and hose
  manufacturers
• Rule includes all recommendations from panel
  report
• Appropriate lead time
• Broad definition of emission family
• Compliance progress review for fuel tanks
• Engineering design-based certification for tanks
• Fuel tank credit program
• Hardship provisions

21
Certification Procedures

• The ABCs of getting a Certificate of Conformity
  with EPA emission regulations

22
Certification Procedures

• The basics
• If your product is subject to EPA emissions
  standards, you must obtain a Certificate of
  Conformity before you introduce it into US
  Commerce.
• Must demonstrate compliance with the applicable
  regulation.
• Certificates are issued by the Compliance and
  Innovative Solutions Division (CISD), Office of
  Transportation and Air Quality.
• CISDs Heavy-Duty and Nonroad Engines Group
  processes the Applications for Certification for
  Marine SI
• You must certify every model year or production
  period

23
How do I certify?

• To obtain a Certificate of Conformity
• Read the regulations!
• SD/I components 40 CFR Parts 1045, 1060, 1065
  and 1068
• OB/PWC add 40 CFR Part 91
• http//epa.gov/otaq/marinesi.htm
• Request an EPA Manufacturer Code
• http//epa.gov/otaq/verify/mfr-code.htm
• Contact Mr. Pete Petersen, 734.214.4204
  petersen.pete_at_epa.gov
• Determine
• Engine Families/Permeation Families
• The type of Certificate you need
• Exhaust, Evaporative (fuel lines, fuel tanks), or
  both

24
How do I certify?

• 4. Gather your data
• Pay your fee
• Per Application
• Information http//epa.gov/otaq/fees.htm
• Pay electronically at https//www.pay.gov/
• Contact
• Mr. Bill Vanden Broek
• 734.214.4468
• vandenbroek.willem_at_epa.gov

Type of Certificate Calendar Year Calendar Year Use Form
Type of Certificate 2008 2009 Use Form
Exhaust 694 562 3520-29
Evaporative 241 241 "Miscellaneous Payments"
The amount of the fee depends on the calendar
year in which the application is submitted, not
the engines model year. Pay a fee for each
application.
25
How do I certify?

• 5. Complete an Application for Certification
• Per engine or permeation family
• Download application template epa.gov/otaq/certda
  t2.htm
• Software required FileMaker Pro (versions 7.0
  to 9.0)
• www.filemaker.com
• Questions on completing/ submitting the
  application
• Exhaust Mike Marko, 202.343.9536
  marko.michael_at_epa.gov
• Evaporative Nick Flores 202.343.2800
  flores.nick_at_epa.gov
• Carry over, running changes, carry across
• Mark CBI
• Comments section

Additional Information
Application for marine SI components is not on
the website yet. Look for it here in the near
future.
26
How do I certify?

• Engine Family Names
• 12-character string
• Must follow EPAs family naming convention
• MY 2009 9 2010 A
• Marine SI (Exhaust)

• Evaporative
• (for MY 2009 only)

9XYZPTANKAB1
Industry Sector Code for Fuel Tanks
Model Year
9XYZM1.72AB1
EPA Mfr Code
Sequence Characters (Unique Identifier)
Industry Sector Code for Fuel Lines
Model Year
EPA Mfr Code
Sequence Characters
9XYZPLINEAB1
Engine Displacement (in Liters or Cubic Inches)
Industry Sector Code for Marine SI Engines
27
How do I certify?
Example of Engine (Exhaust) Certification
Template. Does not include SD/I yet.
28
How do I certify?
Not applicable for Marine SI fuel lines. Use
measured emission levels for certification.
This template will be used for both Marine SI and
Small SI components.
29
How do I certify?
This template will be used for both Marine SI and
Small SI components.
30
How do I certify?

• 5. Submit your application
• Complete application template signed
  Statement of Compliance
• To submit
• Email complete application to
  Application-SI_Cert_at_epa.gov
• Subject line MSI-Company name- of submissions
  Process Code
• Example MSI-BuyMyBoat-3 new submissions
• One industry and process code per e-mail
• May submit by mail
• Allow at least 60 days from the time EPA receives
  a complete application for processing

31
EPA Review

• Mike Marko or Nick Flores receive the
  applications and check them for completeness
• Contact them if you have questions about the
  templates or need to know where your cert is
• If you have a question about Marine SI
  regulations, contact Nydia Yanira Reyes
• reyes-morales.nydia_at_epa.gov (e-mail preferred)
• 202.343.9264
• Send special requests to
• Ms. Khesha Jennings, Manager, Heavy-Duty and
  Nonroad Engines Group
• jennings.khesha_at_epa.gov

32
EPA Review

• Please keep in mind that once you certify, you
  must comply with all parts of the regulation(s)
  that apply to your product, such as
• Labeling Requirements
• Average, Banking and Trading (ABT)
• Production-line Testing (PLT)
• In-use Testing
• Warranties
• Defect Reports Recalls
• Owners Manual requirements
• Selective Enforcement Audits
• Recordkeeping, etc

33
Other useful information

• Heavy-Duty and Nonroad Engines Group
• Regular Mail
• US EPA
• 1200 Pennsylvania Avenue, NW
• Mail Code 6403J
• Washington, DC 20460
• Courier Address
• US EPA
• 1310 L Street, NW,
• Mail Code 6405J
• Washington, DC 20005
• Fax [phone]

• To submit
• ABT abt_engine_at_epa.gov
• PLT (OB/PWC) plt_at_epa.gov
• Cert data available _at_ www.epa.gov/otaq/certdata.h
  tm
• Imports Line 734.214.4100
• Email-imports_at_epa.gov
• Exemptions David Hurlin
• 734.214.4098
• CBI Robert Doyle, 202.343.9258
• Doyle.robert_at_epa.gov

34
Questions
http//www.epa.gov/otaq/marinesi.htm
For general program questions Mike Samulski,
Samulski.Michael_at_epa.gov For questions regarding
certification Nydia Reyes-Morales,
Reyes-Morales.Nydia_at_epa.gov
