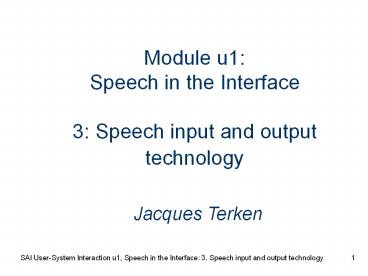

Module u1Speech in the Interface 3 Speech
input and output technology
Jacques Terken
2
contents

• Speech input technology
• Speech recognition
• Language understanding
• Consequences for design
• Speech output technology
• Language generation
• Speech synthesis
• Consequences for design
• Project

3
Components of conversational interfaces
Application
Speech Synthesis
Language Generation
Dialogue Manager
Natural Language Analysis
Speech recognition
Noise suppression
4
Speech recognition

• Advances both through progress in speech and
  language engineering and in computer technology
  (increases in CPU power)

5
Developments
6
State of the art
7
Why is generic speech recognition so difficult ?

• Variability of input due to many different
  sources
• Understanding requires vast amounts of world
  knowledge and common sense reasoning for
  generation and pruning of hypotheses
• Dealing with variability and with storage of/
  access to world knowledge outreaches
  possibilities of current technology

8
Sources of variation
9
No generic speech recognizer

• Idea of generic speech recognizer has been given
  up (for the time being)
• automatic speech recognition possible by virtue
  of self-imposed limitations
• vocabulary size
• multiple vs single speaker
• real-time vs offline
• recognition vs understanding

10
Speech recognition systems

• Relevant dimensions
• Speaker-dependent vs speaker-independent
• Vocabulary size
• Grammar fixed grammar vs probabilistic language
  model
• Trade-off between different dimensions in terms
  of performance choice of technology determined
  by application requirements

11
Command and control

• Examples controlling functionality of PC or PDA
  controlling consumer appliances (stereo, tv etc.)
• Individual words and multi-word expressions
• File, Edit, Save as webpage, Columns to
  the left
• Speaker-independent no training needed before
  use
• Limited vocabulary gives high recognition
  performance
• Fixed format expressions (defined by grammar)
• Real-time
• ?User needs to know which items are in the
  vocabulary and what expressions can be used
• ?(Usually) not customizable

12
Information services

• Examples train travel information, integrated
  trip planning
• Continuous speech
• Speaker-independent Multiple users
• Mid size vocabulary, typically less than 5000
  words
• Flexibility of input extensive grammar that can
  handle expected user inputs
• Requires interpretation
• Real time

13
Dictation systems

• Continuous speech
• Speaker-dependent requires training by user
• (Almost) unrestricted input
• Large vocabulary gt 200.000 words
• Probabilistic language model instead of fixed
  grammar
• No understanding, just recognition
• Off-line (but near online performance possible
  depending on system properties)

14
State of the art ASR Statistical approach

• Two phases
• Training creating an inventory of acoustic
  models and computing transition probabilities
• Testing (classification) mapping input onto
  inventory

15
Speech

• Writing vs speech
• Writing see eat break lake
• Speaking si it brek
  lek
• Alphabetic languages appr. 25 signs
• Average language approximately 40 sounds
• Phonetic alphabet
• (11 mapping character-sound)

16
Speech and sounds Waveform and spectrogram of
How are you Speech is made up of nondiscrete
events

17
Representation of the speech signal

• Sounds coded as successions of states (one state
  each 10-30 ms)
• States represented by acoustic vectors

Freq
Freq
time
time
18
Acoustic models

• Inventory of elementary probabilistic models of
  basic linguistic units, e.g. phonemes
• Words stored as networks of elementary models

19
Training of acoustic models

• Compute acoustic vectors and transition
  probabilities from large corpora
• each state holds statistics concerning parameter
  values and parameter variation
• The larger the amount of training data, the
  better the estimates of parameter values and
  variation

20
Language model

• Defined by grammar
• Grammar
• Rules for combining words into sentences
  (defining the admissible strings in that
  language)
• Basic unit of analysis is utterance/sentence
• Sentence composed of words representing word
  classes, e.g.
• determiner the
• noun boy
• verb eat

21

• noun boy verb eat determiner the
• rule 1 noun_phrase ? det n
• rule 2 sentence ? noun_phrase verb
• Morphology base forms vs derived forms
• eat stem, 1st person singular
• stem s 3rd person singular
• stem en past participle
• stem er substantive (noun)
• the boy eats
• the eats
• boy eats
• eats the boy

22

• Statistical language model
• Probabilities for words and transition
  probabilities for word sequences in corpus
• unigram probability of individual words
• bigram probability of word given preceding word

• trigram probability of word given two preceding
  words
• Training materials
• language corpora (journal articles
  application-specific)

23
Recognition / classification
24

• Compute probability of sequence of states given
  the probabilities for the states, the
  probabilities for transitions between states and
  the language model
• Gives best path
• Usually not best path but n-best list for further
  processing

25
Caveats

• Properties of acoustic models strongly determined
  by recording conditions
• recognition performance dependent on match
  between recording conditions and run-time
  conditions
• Use of language model induces word bias for
  words outside vocabulary the best matching word
  is selected
• Solution use garbage model

26
Advances

• Confidence measures for recognition results
• Based on acoustic similarity
• Or based on actual confusions for a database
• Or taking into consideration the acoustic
  properties of the input signal
• Dynamic (state-dependent) loading of language
  model
• Parallel recognizers
• e.g. In Vehicle Information Systems (IVIS)
  separate recognizers for navigation system,
  entertainment systems, mobile phone, general
  purpose
• choice on the basis of confidence scores
• Further developments
• Parallel recognizer for hyper-articulate speech

27
State of the art performance

• 98 - 99.8 correct for small vocabulary
  speaker-independent recognition
• 92 - 98 correct for speaker-dependent large
  vocabulary recognition
• 50 - 70 correct for speaker-independent mid
  size vocabulary

28
Recognition of prosody

• Observable manifestations pitch, temporal
  properties, silence
• Function emphasis, phrasing (e.g. through
  pauses), sentence type (question/statement),
  emotion c.
• Relevant to understanding/interpretation, e.g.
• Mary knows many languages you know
• Mary knows many languages, you know
• Influence on realisation of phonemes Used to be
  considered as noise, but contains relevant
  information

29
contents

• Speech input technology
• Speech recognition
• Language understanding
• Consequences for design
• Speech output technology
• Consequences for design
• project

30
Natural language processing

• Full parse or keyword spotting (concept spotting)
• Keyword spotting
• ltanygt keyword ltanygt
• e.g. ltanygt DEPARTURE ltanygt DESTINATION ltanygt
• can handle
• Boston New York
• I want to go from Boston to New York
• I want a flight leaving at Boston and arriving
  at New York
• Semantics (mapping onto functionality) can be
  specified in the grammar

31
contents

• Speech input technology
• Speech recognition
• Language understanding
• Consequences for design
• Speech output technology
• Consequences for design
• project

32
coping with technological shortcomings of ASR

• Shortcomings
• Reliability/robustness
• Architectural complexity of always open system
• Lack of transparency in case of input limitations
• Task for design of speech interfaces
• induce user to modify behaviour to fit
  requirements (restrictions) of technology

33
Solutions

• Always open ideal
• push-to-talk button recognition window
• spoke-too-soon problem
• Barge in (requires echo cancellation which may be
  complicated depending on reverberation properties
  of environment)
• Make training conditions (properties of training
  corpus) similar to test conditions
• E.g. special corpora for car environment

34

• Good prompt design to give clues about required
  input

35
contents

• Speech input technology
• consequences for design
• Speech output technology
• Technology
• Human factors in speech understanding
• Consequences for design
• project

36
Components of conversational interfaces
Application
Speech Synthesis
Language Generation
Dialogue Manager
Natural Language Analysis
Speech recognition
37
demos

• http//www.ims.uni-stuttgart.de/moehler/synthspee
  ch/examples.html
• http//www.research.att.com/ttsweb/tts/demo.php
• http//www.acapela-group.com/text-to-speech-intera
  ctive-demo.html
• http//cslu.cse.ogi.edu/tts/
• Audiovisual speech synthesis
• http//www.speech.kth.se/multimodal/
• http//mambo.ucsc.edu/demos.html
• Emotional synthesis (Janet Cahn)
• http//xenia.media.mit.edu/7Ecahn/emot-speech.ht
  ml

38
Applications

• Information Access by phone
• news / weather, timetables (OVR), reverse
  directory, name dialling,
• spoken e-mail etc.
• Customer Ordering by phone (call centers)
• IVR ASR replaces tedious touch-tone actions
• Car Driver Information by voice
• navigation, car traffic info (RDS/TMC), Command
  Control (VODIS)

39

• Interfaces for the Disabled
• MIT/DECTalk (Stephen Hawking)
• In the office and at home (near future?)
• Command Control, navigation for home
  entertainment

40
Output technology
LangGeneration
Speech Synthesis
Dialogue Manager
Application (e.g. E-mail)
Application (Information service)
41
Language generation

• Eindhoven Amsterdam CS
• Vertrektijd 0832 0847 0902 0917 0932
• Aankomsttijd 0952 1010 1022 1040 1052
• Overstappen 0 1 0 1 0

42

• If nr_of_records gt1
• I have found n connections
• The first connection leaves at time_dep from
  departure and arrives at time_arr at
  destination
• The second connection leaves at time_dep from
  departure and arrives at time_arr at
  destination

43

• If the user also wants information about whether
  there are transfers, either other templates have
  to be used, or templates might be composed from
  template elements

44
speech output technologies

• canned (pre-recorded) speech
• Suited for call centers, IVR
• fixed messages/announcements

45
Concatenation of pre-recorded phrases

• Suited for bank account information, database
  enquiry systems with structured data and the like
• Template-based, e.g.
• your account is ltaccountgt
• the flight from ltdeparturegt to ltdestinationgt
  leaves at ltdategt at lttimegt from ltgategt
• the number of customer is telephone_number
• Requirements database of phrases to be
  concatenated
• Some knowledge of speech science required
• words are pronounced differently depending on
• emphasis
• position in utterance
• type of utterance
• differences concern both pitch and temporal
  properties (prosody)

46

• Compare different realisations of Amsterdam in
• do you want to go to Amsterdam ? (emphasis,
  question, utterance-final)
• I want to go to Amsterdam (emphasis, statement,
  utterance -final)
• Are there two stations in Amsterdam ? (no
  emphasis, question, utterance-final)
• There are two stations in Amsterdam (no emphasis,
  statement, utterance-final)
• Do you want to go to Amsterdam Central Station?
  (no emphasis, statement, utternace-medial)
• Solution
• have words pronounced in context to obtain
  different tokens
• apply clever splicing techniques for smooth
  concatenation

47
text-to-speech conversion (TTS)

• Suited for unrestricted text input all kinds of
  text
• reading e-mail, fax (in combination with optical
  character recognition)
• information retrieval for unstructured data
  (preferably in combination with automatic
  summarisation)
• Utterances made up by concatenation of small
  units and post-processing for prosody, or by
  concatenation of variable units

48
TtS technology

• Distinction between
• linguistic pre-processing and
• synthesis
• Linguistic pre-processing
• Grapheme-phoneme conversion mapping written text
  onto phonemic representation including word
  stress
• Prosodic structure (emphasis, boundaries
  including pauses)

49
TtS Linguistic pre-processinggrapheme-phoneme
conversion

• To determine how a word is pronounced
• consult a lexicon, containing
• a phoneme transcription
• syllable boundaries
• word accent(s)
• and/or develop pronunciation rules
• Output
• Enschede . En-sx_at_-de .
• Kerkrade . kErk-ra-d_at_ .
• s-Hertogenbosch . sEr-to-x_at_n- bOs .

50

• Pros and cons of lexicon
• phoneme transcriptions are accurate
• (high) risk of out-of-vocabulary words because
  the lexicon
• often contains only stems, no inflections, nor
  compounds
• is never up to date / complete
• but usually the application includes a user
  lexicon

51

• Pros and cons of pronunciation rules
• no out-of-vocabulary words
• transcription results are often wrong for
• (longer) combinations of words / morphemes
• exceptions and loan-words from other languages
• Best solution is a combination of the two
  methods
• develop a list of words incorrectly transcribed
  by the rules and put these words in an exception
  lexicon
• words not occurring in the exception list are
  then transcribed by rule

52

• Complications
• Words with same written form but different
  pronunciations and different meaning record vs
  record
• requires parsing or statistical approach
• Proper names and other specialized vocabularies,
  acronyms/abbreviations (small announcements in
  journals!)
• Need to be included in (user) lexicon
• Different kinds of numbers (telephone numbers,
  amounts, credit card numbers etc.)
• Require number grammars

53
TtS Linguistic pre-processingprosody

• Emphasis, boundaries (including pauses), sentence
  type
• Observable manifestations pitch, temporal
  properties, silence
• Requires analysis of linguistic structure
  (parsing) and (ideally) discourse level
  information (cf. the earlier Amsterdam example)

54
TtS synthesis

• Concatenation from words and phrases practically
  impossible
• database too large (especially if you need
  several versions for each word) and
• no full coverage (out-of-vocabulary words)
• Approaches
• sub-word units
• data-oriented approach

55
Synthesis by subword units

• Common approach diphone synthesis
• linking together pre-recorded diphones, i.e.
  short segments (transitions between two
  successive phonemes), extracted from natural
  speech
• s Hertogenbosch
• phonemes . s E r t o x _at_
  n b O s .
• diphones .s sE Er rt to ox x_at_ _at_n
  nb bO Os s.
• In all, 1600 transitions per language (40 40)

56

• Synthesis
• concatenate diphones in the correct order
• perform some (intensity) smoothing at the
  diphone borders
• adjust phoneme duration and pitch course,
  according to prosody rules

57
Data-oriented approach

• Generalization of diphone approach
• Store a large database of speech (running text)
• Run-time
• generate structure representing phoneme sequence
  and prosodic properties needed
• Search algorithm
• find the largest possible fragments containing
  the required properties in the database

58

• frei-burg
• nürn-berg
• frei-berg
• /fr/ also for fr-iedrichshaven
• items in database re-usable
• Concatenate the fragments as they are, without
  post-processing for pitch and duration
• ? in this way, not only phoneme parameters and
  transitions are taken from data, but also pitch
  and temporal properties

59

• Advantage natural speech quality preserved (but
  may not always be desirable maybe it should be
  made clear to people that they are talking to a
  system)
• Disadvantage no explicit control of voice
  characteristics and prosodic characteristics such
  as pitch and speaking rate (which you might want
  to manipulate for synthesis of emotional speech
  or conveying a certain personality)

60

• Difficult or impossible to modify speaker
  characteristics
• Other speaker new database required
• Other speaking style new database required
• Research post-processing of result with
  preservation of speech quality

61

• hybrid synthesis
• Combination of phrase concatenation and TTS
• suited for template-based synthesis with fixed
  message structure and variable slots
• the flight from ltdeparturegt to ltdestinationgt
  leaves at ltdategt at lttimegt from ltgategt
• ? in dialogue systems the system has knowledge
  of message structure and can select the proper
  tokens from the database on the basis of this
  knowledge

62
Future markup languages

• structured text
• current tts-systems strip text annotations
  (plain ascii standard)
• draft proposal for xml for synthesis, SALT

63
Contents

• Speech input technology
• consequences for design
• Speech output technology
• Technology
• Human factors in speech understanding
• Consequences for design
• project

64
issues in comprehension

• Speech quality
• reduced quality slows down feature extraction
  and mapping input onto feature vectors will
  increase number of matching vectors.
• ? requires compensation by top-down
  processing, taking more time and effort and
  practice
• Text-to-speech, but written text is often
  difficult to understand when read aloud due to
  complex structures, high information density etc.

65
application to synthetic speech

• substandard quality of synthetic speech requires
  compensation by (resource-limited) top-down
  processing
• ? potential overload of system due to time
  constraints
• slowing down speaking rate very effective way to
  give the listener more processing time

66
Case study picking up information from speech

• study on auditory exploration of lists (pitt
  edwards, 1997)
• recall of list of 48 file names
• presented in groups
• groups size varied (2, 3 or 4)
• presentation of groups listener-paced
• recall immediately after each group

67
(No Transcript)
68
adjustments

• analysis of list speaking style
• ? grouping principles
• always try to group
• grouping by filenames and extensions
• large groups first
• mnemonic links between groups
• ? prosodic structuring

69

• evaluation
• directory with four subdirectories, each
  containing files with four different names,
  corresponding to the modules of a programming
  project, and with three different extensions
• task find most recent version of the four files
  containing the source code for the modules and
  copy them into a new directory
• measures objective (task completion) and
  subjective
• results for task completion new algorithm 10.39
  min, old version 24.12 min

70
Contents

• Speech input technology
• Consequences for design
• Speech output technology
• Technology
• Human factors in speech understanding
• Consequences for design
• Project

71
Design implications

• choice of technology can be made dependent on
  needs of application
• for restricted domains very high quality can be
  achieved through canned speech or phrase
  concatenation with multiple tokens
• for concatenation with unit selection there is a
  relation between quality and size of database
  for good systems usually there is no problem with
  intelligibility even with inexperienced listeners

72

• high quality for diphone speech, needed for
  uncommon forms such as proper names or company
  names that are unlikely to be available from a
  corpus, requires still much effort
• importance of learning effects
• general finding is that acceptance of synthetic
  speech depends strongly on voice quality
• if trade-off between quality and added value is
  negative, prospects for acceptance of the speech
  interface are poor

73
speech as output modality speech vs text/graphics

• Text/graphics
• an image may be worth a thousand words
• image/written text is persistent
• image is (at least) two-dimensional temporal and
  spatial organisation
• visual expression of hierarchical structure
• receiver paced
• but non-adaptive (until recently).
• now adaptive hypertext

74

• speech
• one-dimensional extends only in time
• ? spatial issues better dealt with in other
  modality
• sender-paced
• poor medium, yet popular
• large amount of speech-based communication serves
  primarily a social function
• no need for supporting aids such as paper and pen
• no special motoric abilities needed
• speaking is fast

75
heuristicsspeech output preferred when

• message is simple
• message is short
• message need not be referred to later
• message deals with events in time
• message requires an immediate response
• visual channels are overloaded
• environment is brightly lit, poorly lit, subject
  to severe vibration or otherwise adverse to
  transmission of visual information
• user must be free to move around
• (from michaelis wiggins)
• pronunciation is subject of interaction

76
but speech output preferably not used when

• message is complex or uses unfamiliar terms
• message is long
• message needs to be referred to later
• message deals with spatial topics
• message is not urgent
• auditory channels are overloaded
• environment is too noisy
• user has easy access to screen
• system output consists of many different kinds of
  information which must be available
  simultaneously and be monitored and acted upon by
  the user
• (from michaelis wiggins)
• ? environmental variation and mixed
  interaction call for multimodal interfaces

77
contents

• Speech input technology
• consequences for design
• Speech output technology
• Main points
• Project

78
Main points

• Database approach, requiring large databases for
  individual languages and speaking styles,
  dominant both for speech input and output
• Input databases for training acoustic models and
  language model
• Output concatenation of segments and phrases
  taken from database
• Large differences concerning performance of
  speech recognition and quality of output for
  different languages and target groups (e.g.
  recognition for children)
• Speech input three major classes of
  applications commandcontrol, information
  services, dictation systems
• Major parameters speaker-dependent/independent,
  vocabulary size (small, medium, large), rigid vs.
  free-format input

79

• Dialogue management
• Finite-state or frame-based approach for
  task-oriented dialogue acts
• Verification strategies and repair mechanisms for
  dialogue control
• Pragmatic approaches to language understanding
  and language generation
• Input directly mapped onto application
  functionality
• Output template-based approaches
• Not covered speech monitoring, speech data
  mining applications and technology

80

• Exercises with CSLU toolkit and other
  demonstrators
• Try out your name, telephone numbers, dates,
  e-mail addresses, abbreviations etc.
• Project
• Protocol development
• Dialogue structure
• Strategies and prompts
• Tomorrow
• Wizard of Oz test
