Introduction to Monte Carlo Methods

1

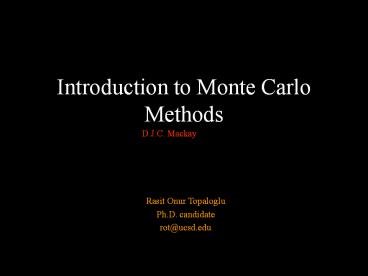

Introduction to Monte Carlo Methods
D.J.C. Mackay
Rasit Onur Topaloglu Ph.D. candidate rot_at_ucsd.edu
2
Outline

• Problems Monte Carlo (MC) deals with

• Uniform Sampling
• Importance Sampling
• Rejection Sampling
• Metropolis
• Gibbs Sampling
• Speeding up MC Hybrid MC and Over-relaxation

3
Definition of Problems

• Problem1 Generate samples from a distribution

Problem2 Estimate expectation of a function
given probability distribution for a variable
4
Monte Carlo for High Dimensions

• Solving first problem gt solving second one
• Just evaluate function using the samples and
  average them out

• The accuracy is independent of the dimensionality
  of the space sampled

5
Sampling from P(x)

• Assume we can evaluate P(x) within a
  multiplicative constant

• If P(x) can be evaluated, still a hard problem
  as
• Z is not known
• Not easy to draw at high dimensions (except
  Gaussian)
• ex A sample from univariate Gaussian can be
  calculated as

u1 and u2 are uniform in 0,1
6
Difficulty of Sampling at High Dimensions

• Can discretize the function (figure on right) and
  sample the discrete samples

• This is costly at high dimensions BN for B bins
  and N dimensions

7
Uniform Sampling

• Tries to solve the 2nd problem

• Draw samples uniformly from state space

• ZR is the normalizing constant

• Estimate by

• For distributions that have peaks at a small
  region, lots of points must be sampled so that
  ?(x) is calculated a number of times gt requires
  lots of samples
• Thus, uniform distribution seldom useful

8
Importance Sampling

• Tries to solve the 2nd problem

• Introduce a simpler density Q

• Values of x where Q(x)gtP(x) are over-represented
  values of x where Q(x)ltP(x) are
  under-representedgt
• introduce weights

9
Reliability of Importance Sampling
The estimate ? vs number of samples Gaussian
sampler Cauchy Sampler

• An importance sampler should have heavy tails in
  problems where infrequent samples might be
  influential

10
Rejection Sampling

• Again, a Q (proposal density) assumed

• Also assume we know a constant c s.t.

• Generate x using Q(x)

• Find r.v. u uniformly in interval 0,cQ(x)

• If ultP(x), accept and add x to the random
  number list

11
Transition to Markov Chain MC

• Importance and rejection sampling work well if Q
  is similar to P
• In complex problems, it is difficult to find a
  single such Q over the state space

12
Metropolis Method

• Proposal density Q depends on current state
  x(t)Q(xx(t))

Accept new state if a?1, Else accept with
probability a

• In comparison to rejection sampling, the rejected
  points are not discarded and hence influential
  on consequent samples gt samples correlated

gt Metropolis may have to be run more to generate
independent samples from P(x)!
13
Disadvantages of Large Step Size

• Useful for high dimensions

• Uses a length scale ? much smaller than state
  space L

• Because
• Large steps are highly unlikely to be accepted
• gt Limited or no movement in space! gt biased

14
A Lower Bound for Independent Samples

• Metropolis will explore using a random walk

• Random walks take a long time
• After T steps of size ?, state only moves T?
• As Monte Carlo is trying to achieve independent
  samples, requires (L/ ?)2 samples to get a
  sample independent of the initial condition
• This rule of thumb be used for a lower bound

15
An Example using this Bound
100th iteration
time
400th iteration
1200th iteration

• Takes 102100 steps to reach an end state

• Metropolis still provides biases estimates even
  after a large number of iterations

16
Gibbs Sampling

• As opposed to previous methods, at least 2
  dimensional distributions required
• Q defined in terms of conditional distributions
  of joint distribution P(x)
• The assumption is P(x) complex to evaluate but
  P(xixjj?i) is tractable

17
Gibbs Sampling on an Example

• Start with x(x1,x2), fix x2(t) and sample x1
  from P(x1x2)
• Fix x1 and sample x2 from P(x2x1)

18
Gibbs Sampling with K Variables

• In comparison to Metropolis, every proposal is
  always accepted

• In bigger models, groups of variables jointly
  sampled

19
Comparison of MC Methods in High Dimensions

• Importance and rejection sampling result in high
  weights and constants respectively, resulting in
  inaccurate or length simulations gt not practical

• Metropolis requires at least (?max/ ?min)2
  samples to acquire independent samples gt might
  be lengthy

• Gibbs sampling has similar properties with
  Metropolis. No adjustable parameters gt most
  practical

20
Practical Questions About Monte Carlo

• Can we predict how long it takes for equilibrium
• Use the simple bound proposed

• Can we determine convergence in a running
  simulation yet another difficult problem

• Can we speed up convergence time and time
  between independent samples?

21
Reducing Random Walk in Metropolis Hybrid MC

• Most probabilities can be written in the form

• Introduce a momentum variable p

• K is kinetic energy

• Create asymptotic samples from joint distribution

• Pick p randomly from

• Update x and p

• This results in linear time convergence

22
An Illustrative Example for Hybrid MC
Hybrid
Hybrid
Random walk
Random walk

• Over a number of iterations, hybrid trajectories
  indicate less
• correlated samples

23
Reducing Random Walk in Gibbs Over-relaxation

• Use former value x(t) as well to calculate x(t1)


• Suitable to speed up the process when variables
  are highly correlated

• Useful for Gaussians, not straightforward for
  other types of conditional distributions

24
An Illustrative Example for Over-Relaxation

• State space for a bi-variate Gaussian for 40
  iterations

• Over-relaxation samples better covers the state
  space

25
Reducing Random Simulated Annealing

• Introduce a parameter T (temperature) and
  gradually reduce it to 1

• High T corresponds to being able to make
  transitions easier

• As opposed to its use in optimization, T is not
  reduced to 0 but 1

26
Applications of Monte Carlo
Differential Equations
Ex Steady-state temperature distribution of an
annulus
The finite difference approximation using grid
dimension h

• With ¼ probability, one of the states is selected

• The value when a boundary is reached is kept, the
  mean of many such runs gives the solution

27
Applications of Monte Carlo
Integration
To evaluate

• Bound the function with a box

• Ratio of points under function to all points
  within the box gives the ratio of the areas of
  the function and the box

28
Applications of Monte Carlo
Image Processing Automatic eye-glass removal

• MCMC used instead of a gradient-based methods to
  solve
• MAP criterion that is used to locate points of
  eye-glasses

C. Wu, C. Liu, H.-Y. Shum, Y.-Q. Xu and Z.
Zhang, Automatic Eyeglasses Removal from Face
Images, IEEE Tran. On Pattern Analysis and
Machine Intelligence, Vol.26, No.3, pp. 322-336,
Mar.2004
29
Applications of Monte Carlo
Image segmentation

• Data-driven techniques such as edge detection,
  tracing and clustering combined with MCMC to
  speed up the search

Z. Tu and S.-C. Zhu, Image Segmentation by
Data-Driven Markov Chain Monte Carlo, IEEE Tran.
On Pattern Analysis and Machine Intelligence,
Vol.24, No.5, pp. 657-673, May 2002
30
Forward Discrete Probability Propagation
Rasit Onur Topaloglu Ph.D. candidate rot_at_ucsd.edu
31
The Problem
Lowest Level
Ex gm?(2kId)
High level

• The tree relates physical parameters to circuit
  parameters

• Structured according to SPICE formula hierarchy

• Given pdfs for lowest level parameters find
  pdfs at highest level

32
Motivation for Probability Propagation

• Estimation of distributions of high level
  parameters needed to examine effects of process
  variations

• Gaussian assumption attributed to these
  parameters no longer accurate in current
  technologies

Find a novel propagation method
GOALS
Determinism a stochastic output using known
formulas
Algebraic tractability enabling manual
applicability
Speed Accuracy be comparable or outperform
Monte Carlo and other parametric methods
33
Parametric Belief Propagation
Calculations handled at each node

• Each node receives and sends messages to parents
  and children until equilibrium

• Parent to child (?) causal information

• Parent to parent (?) diagnostic information

34
Parametric Belief Propagation

• When arrows in the hierarchy tree indicate linear
  addition operations on Gaussians, analytic
  formulations possible

• Not straightforward for other distributions or
  non- standard distributions

35
Shortcomings of Monte Carlo

• Non-determinism Not manually applicable

• Limited for certain distributions Random number
  generators in most CAD packages only provide
  certain distributions

• Accuracy May miss points that are less likely
  to occur due to random sampling unless very large
  number of samples used limited by the
  performance of random number generator

36
Monte Carlo FDPP Comparison
one-to-many relationships and custom pdfs

• Non-standard pdfs not possible without a custom
  random number generator

P1

• Monte Carlo overestimates in one-to-many
  relationships as same sample is used

P2
P3
P4
37
Operations Necessary to Implement FDPP
Analytic operation on continuous distributions
difficult instead operations on discrete
distributions implemented

• F (Forward) Given a function, estimates the
  distribution of next node in the formula
  hierarchy

• Q (Quantize) Discretize a pdf to operate on its
  samples

• B (Bandpass) Decrements number of samples for
  computational efficiency

• R (Re-bin) Reduces number of samples for
  computational efficiency

38
Necessary Operators (Q, F, B, R) on a
Hierarchical Tree

• Repeated until we acquire the high level
  distribution (ex. G)

39
Probability Discretization Theory QN Operator
p and r domains
pdf(X)
p-domain
r-domain
Certain operators easy to apply in r-domain
40
Characterizing an spdf
spdf(X) or ?(X)
r-domain
41
F Operator

• F operator implements a function over spdfs

• Function applied to individual impulses

• Individual probabilities multiplied

42
Band-pass, Be, Operator
43
Re-bin, RN, Operator
Resulting spdf(X)
44
Error Analysis

• If quantizer uniform and ? small, quantization
  error random variable Q is uniformly distributed

45
Algorithm Implementing the F Operator
While each random variable has its spdf computed
For each rv. which has all ancestor spdfs
computed
For each sample in X1
For each sample in Xr
Place an impulse with height p1,..,pr at
xf(v1,..,vr)
Apply B and R algorithms to this rv.
46
Algorithm for the B and R Operators
Find maximum and minimum values wi within impulses
Divide this range into M bins
For each bin
Place a quantizing impulse at the center of the
bin with a height pi equal to the sum of all
impulses within bin
Find maximum probability, pi-max, of quantized
impulses within bins
Eliminate impulses within bins which have a
quantized impulse with smaller probability than
error-ratepi-max
Find new maximum and minimum values wi within
impulses
Divide this range into N bins
For each bin
Place an impulse at the center of the bin with
height equal to sum of all impulses within bin
47
Monte Carlo FDPP Comparison
Pdf of Vth
Pdf of ID
solid FDPP dotted Monte Carlo

• A close match is observed after interpolation

48
Monte Carlo FDPP Comparison with a Low Sample
Number
Pdf of ?F
Pdf of ?F
solid FDPP,100 samples
noisy Monte Carlo, 1000 and 100000 samples
respectively

• Monte Carlo inaccurate for moderate number of
  samples

• Indicates FDPP can be manually applied without
  major accuracy degradation

49
Monte Carlo FDPP Comparison
Pdf of n7
Benchmark example
solid FDPP dotted Monte Carlo
trianglesbelief propagation

• Edges define a linear sum, ex n5n2n3

50
Faulty Application of Monte Carlo
Pdf of n7
Benchmark example
solid FDPP dotted Monte Carlo
trianglesbelief propagation

• Distributions at internal nodes n4, n5, n6 should
  be re-sampled using Monte Carlo

• Not optimal for internal nodes with non-standard
  distributions

51
Conclusions

• Forward Discrete Probability Propagation is
  introduced as an alternative to Monte Carlo
  based methods

• FDPP should be preferred when low probability
  samples are important, algebraic intuition
  needed, non-standard pdfs are present or
  one-to-many relationships are present
