Weak Lensing Measurement of Galaxy Clusters in CFHTLS Wide W1 Fields

1

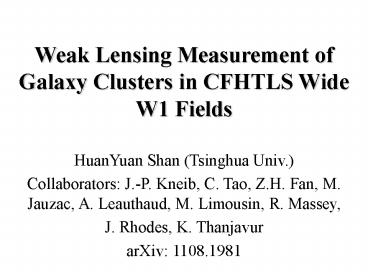

Weak Lensing Measurement of Galaxy Clusters in
CFHTLS Wide W1 Fields
HuanYuan Shan (Tsinghua Univ.) Collaborators
J.-P. Kneib, C. Tao, Z.H. Fan, M. Jauzac, A.
Leauthaud, M. Limousin, R. Massey, J. Rhodes, K.
Thanjavur arXiv 1108.1981
2
Outline

• Backgrounds
• Galaxy shape measurement
• Mass reconstructions
• Optical/X-ray counterparts
• Tomography analysis of lensing peaks
• Conclusions

3
Galaxy Clusters

• Observe clusters Optical, X-ray, SZ effects,
  Lensing
• Why gravitational lensing?
• Independent of cluster mass model, purely
  geometrical method
• Independent of the cluster physics

4
Weak Gravitational Lensing
- Weak distortions caused by LSS of the
universe common/weak - Clusters of galaxies are
important targets for weak-lensing studies
Individual
Statistical abundances mass
distribution
cosmological probes
Clowe et al. 2006
Hamana et al. 2004
5
e.g., w123
CFHTLS-Wide T0006 release - 171 sq. degree
W1 72 sq. degree - multi-band u', g', r', i',
z'
6
Shear Measurement Pipelines

• Our shear measurement pipelines are based on
  KSBf90 (Heymans et al. 2006)
• Objects detection and masking
• PSF modeling
• Galaxy shape measurement
• Calibration of the shear measurement pipeline

7
CFHTLS-Wide W1 pointing W123 with
masking Effective sky coverage 58 sq. degree

8
Star selection criteria - rh vs. Mag ?max
vs. Mag (?max Peak surface brightness) - S/N
gt100 elt2e (Stars number vs. S/N)
9
PSF modeling - KSB Polynomial
model
Left Projection of the stellar ellipticities
before and after PSF anisotropy
correction. Right PSF ellipticity variation with
half light radius before and after PSF anisotropy
correction.
10
Galaxy selection criteria - 4gt r gt1.1 rpsf,
S/Ngt10, 21.5lt maglt 24.5, elt1, d gt 3 arcsec
Galaxy number density of i' band
data ng 10.2 galaxies/arcmin2
I' band black R' band red Solid star-galaxy
separation Dotted all lensing cuts
11
Calibration of Shear Measurement Pipelines
- Simulations STEP (Heymans et al. 2006 Massey
et al. 2007) Great08 (Bridle et al. 2009
2010) Disadvantage Shear and PSF do not vary
across an image - Real Data ACS-COSMOS vs.
CFHTLS-Deep 2 Space-based vs. Ground-based,
Cover the same sky area
- Matched shear P? fit P? (rh) vs. P?
(mag, rh)
Fu et al. (2008)
12
- Real Data r' band vs. i' band data
13
- Mean shear measurements from galaxies in
i'-band observations of the entire CFHTLS-Wide W1
field.
14
- Shear signals vs. Star-galaxy correlation
function
15
Mass Inversion
- KS inversion (Kaiser Squires 1993)
Positive and negative peaks (solid and dashed
contours 3, 4, 5 sigma)
16
(No Transcript)
17
The probability distribution function (PDF) of
the peak height. a bimodal distribution
asymmetric excess at high S/N

Positive peaks

Negative peaks Different smoothing scales
0.5/1/2 arcmin blue/black/red lines
18
The cumulative number of positive and negative
peaks

Positive peaks

Negative peaks
Pure
noise
Analytical
predictions (Fan, Shan Liu. 2010) circles

Different smoothing scales

1/2 arcmin-black/red
lines
19
Comparison with Optical/X-ray counterparts
WL 301 positive peaks with S/Ngt3.5 I. Compare
with optical detection (Thanjavur et al. 2009
K2) - Bright Central Galaxy vs. WL peaks II.
Compare with X-ray detection (Adami et al. 2010)
- 6 sq. degree, XMM-LSS - 66 spectroscopically
confirmed clusters (0.05 lt z lt 1.5) - 31 X-ray
clusters are within W1 field
20
/squares WL peaks with smoothing scale 1/2
arcmin Triangles K2 detection X X-ray
detection
The convergence S/N map of the w123 field
21
Optical/X-ray counterparts
WL 301 positive peaks with
SNRgt3.5 I. Compare with optical detection
(Thanjavur et al. 2009) 126 candidate clusters
with SNRgt3.5 (purity 42) II. Compare with
X-ray detection (Adami et al. 2010) - 31 X-ray
clusters are within W1 field 7
counterparts offsets between X-ray and WL
center much larger than offset between optical
and WL measurements.
22
Cluster redshift distribution for the matched
clusters

WL black solid
histogram
K2 red dashed
histogram
23
Lens tomography
- SIS NFW mass model - Chi-square fitting
analysis with the error
(Hoekstra et
al. 2000) - Photometric redshift of source
galaxies (Arnouts et al. 2011)
24
Results of a tomographic weak lensing analysis
SIS/NFW(solid/dashed)
E-mode black

B-mode red
25
(No Transcript)
26
Scaling relations between velocity dispersion and
weak lensing mass
27
Left Lens tomography redshift vs. photometric
redshift Right Matched velocity dispersion
X-ray vs. WL method
28
Conclusions
1. We measure the galaxy shapes using KSB method,
and calibrate with HST image/other imaging
bands. 2. A 72 sq. degree DM map has been
reconstructed. 3. Considering the noise effects,
we get peak counts in the CFHTLS fields with
prediction from a ?CDM Universe 4. 85
groups/clusters have been confirmed 5. The good
agreement on the clusters redshift and velocity
dispersion implies no evidence of selection bias
compared to these other techniques
