Beyond Lists: Other Data Structures

1

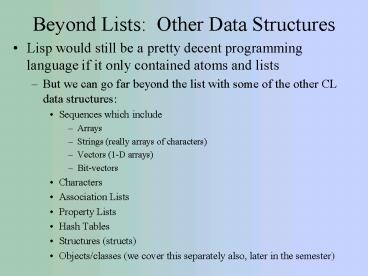

Beyond Lists Other Data Structures

• Lisp would still be a pretty decent programming
  language if it only contained atoms and lists
• But we can go far beyond the list with some of
  the other CL data structures
• Sequences which include
• Arrays
• Strings (really arrays of characters)
• Vectors (1-D arrays)
• Bit-vectors
• Characters
• Association Lists
• Property Lists
• Hash Tables
• Structures (structs)
• Objects/classes (we cover this separately also,
  later in the semester)

2
Characters

• We will start with characters because we will
  need to understand characters to understand
  strings
• Do not confuse characters with symbols of one
  character
• Characters are denoted as \character where
  character is the single character (such as \a or
  \A)
• In the event that the character does not have a
  single character on the keyboard, we denote it by
  name
• \space \tab \control-a \bel (for the bell)
• Note that case is immaterial when specifying a
  character by name but matters when specifying a
  single letter
• So \SPACE \space \Space, but \a ! \A
• Characters are ordered alphabetically and
  numerically, but not necessarily ordered by ASCII
  values
• A lt Z a lt z 0 lt 9 but in ordinary ASCII, A lt a
  and A lt 0, but not necessarily in CL, this is a
  machine dependent situation
• However on the PCs, the characters do follow the
  ASCII table, 0 lt 9 lt A lt Z lt a lt z

3
Character Functions

• char-code char returns chars code
• ASCII value for PCs
• Predicate functions
• alpha-char-p, upper-case-p, lower-case-p,
• both-case-p
• t if the char is in one case and there is a
  character in the other case, therefore this is
  true if it is a letter
• digit-char-p, alphanumericp
• Comparison functions
• charlt, chargt, charlt, chargt, char/, char
• Note that these can accept multiple arguments and
  compares them in order such that (charlt \a \b
  \c) is t whereas (charlt \3 \5 \4) is nil
• char-equal, char-not-equal, char-lessp,
  char-greaterp, char-not-greaterp, char-not-lessp
  case insensitive versions of the previous group
  of functions
• (char \a \A) is nil whereas (char-equal \a
  \A) is t

4
Character Conversion Functions

• char-upcase, char-downcase returns the
  character in a changed case if the character is a
  letter, otherwise the character is unchanged
• character coerces the given argument into a
  character if possible, otherwise will signal an
  error
• digit-char coerce the given digit into a
  character digit
• (character a) ? \a
• (character ab) ? error
• (character 5) ? error
• (digit-char 5) ? \5
• (digit-char 12) ? nil
• (digit-char a) ? error
• char-name returns the name of the character if
  you supply the characters abbreviation
• (char-name \bel) ? bell
• name-char returns the character of a given name
• (name-char newline) ? \Newline

5
Hash Tables

• Hash tables, sometimes also called dictionaries,
  are data structures that store values along with
  identification keys for easy access
• supply the key, the structure returns the data
• often, these use a hash function (covered in CSC
  364)
• In CL, the hash table data structure is available
  for this task
• there are three variants of hash tables based on
  whether keys are matched using eq, eql or equal
• The two basic operations for a hash table are to
  insert a new item and to access an item given its
  key both are accomplished using gethash
• (gethash key hashtable) ? returns the item
  referenced by key or nil
• (setf (gethash george a) smith) ? places the
  datum smith in the table indexed by the key
  george
• (gethash george a) ? smith
• You can delete an entry from a hash table using
  remhash
• (remhash key hashtable)

6
Hash Table Sizes

• Hash Tables are often implemented as very large
  arrays
• for instance, a hash table that stores 10 items
  might be stored in an array of 100 elements
• hash tables can therefore be very wasteful of
  memory space
• in CL to get around this problem, hash tables can
  grow automatically and so you can specify an
  original size and a growth size when you create
  the hash table
• (make-hash-table size x rehash-size y
  rehash-threshold z) the hash table will start
  off with size x, and when needed, will increase
  in size by increments of y, and z denotes at what
  point the hash table should change in size
• (make-hash-table size 100 rehash-size 90
  rehash-threshold 80) when the table has 80
  elements added to it, it will become 90 greater
• these values default to implementation-specific
  values if you do not specify them yourself

7
Successful and Failed Accesses

• The gethash function actually returns two values
• the value matching the key
• and whether the access was successful or not (t
  or nil)
• if the key is not in the hash table, the first
  response is usually nil and the second one is
  nil, however you can alter the first response by
  providing a default return value
• (gethash key hashtable defaultvalue) as in
• (gethash x a error) ? returns the symbol error
  if x is not found in a
• If you use setf to place a new entry into the
  hash table, and an entry already exists for that
  key, the entry is replaced by the new one and no
  error is indicated
• therefore, you must be careful when inserting
  elements into a hash table
• you could test to see if an entry exists first
• (if (gethash key hashtable) error (setf (gethash
  key hashtable) value))

8
Other Hash Table Functions

• maphash a mapping function that maps every
  entry of the hash table onto the given function
• each entry in the hash table is actually a pair,
  the key and the datum, so your function that you
  are applying must accept two arguments
• Example (defun print-hash-items (x y) (print
  (list x y)))
• (maphash print-hash-items a) ? prints all
  entries in the hash table a
• clrhash clears all entries in the hash table
  and returns the table, now empty
• hash-table-count returns the number of entries
  currently in the hash table (0 if empty)
• because hash tables are opaque with respect to
  how they work, an alternative approach is to
  implement an association list, which we look at
  in a little while

9
Sequences

• Sequences are generic types in Common Lisp that
  have several subtypes
• Lists
• Arrays
• Vectors (1-D arrays)
• Strings (vectors of characters)
• Bit-arrays (arrays of bits)
• Association and Property Lists (not all sequence
  functions operate as you might expect on these
  types of lists)
• While each of these has specific functions, there
  are also functions that can be applied to any
  sequence
• We start by looking at sequence functions keeping
  in mind that these are applicable to any of the
  above types of sequences
• For many of these, the more specific function for
  that particular type of sequence will be more
  efficient
• for instance, using the sequence function to
  access the ith element is less efficient than
  using the specific access function such as nth
  for lists and aref for arrays
• you are free to use whichever you prefer

10
Sequence Functions

• elt return the requested element of the
  sequence
• (elt seq i) returns the ith value in seq where
  the first element is at i 0 (same as nth for
  lists)
• length return the size of the sequence
• for lists, this is the number of top-level
  elements, for strings it is the number of
  characters but for arrays, it is the number of
  array cells, not the number of elements currently
  in the array
• position return the location in the sequence of
  the first occurrence of the given item
• (position item seq) like elt, the first item is
  at position 0, if the item does not appear,
  returns nil
• remove remove all occurrences of the given item
  from the seq
• (remove item seq)
• delete is the destructive version of remove
• substitute replace all occurrences of a given
  item with a new item in the sequence
• (substitute new old seq)
• nsubstitute is a destructive version of substitute

11
More Sequence Functions

• count number of occurrences of an item in the
  seq
• (count item seq)
• reverse, nreverse same as with lists
• find finds and returns an item in the sequence
• (find item seq) this may not be useful, you
  already know the value of item, there are other
  versions of find that we will find more useful
• remove-duplicates, delete-duplicates remove any
  duplicated items in the given sequence (delete is
  the destructive version)
• (remove-duplicates (1 2 3 4 2 3 5 2 3 6)) ? (1
  4 5 2 3 6)
• subseq return the subsequence starting at the
  index given and ending at the end of the sequence
  or at the location before an (optional) ending
  index
• (subseq (1 2 3 4 5) 2) ? (3 4 5)
• (subseq (1 2 3 4 5) 2 4) ? (3 4)

12
And A Few More

• copy-seq
• return a copy of a sequence (not just a pointer)
• copies are true when tested with equalp but not
  eq since the copy does not occupy the same memory
• make-sequence create a sequence of a given type
  and size, optionally with a given initial value
• (make-sequence vector 10 initial-element 0)
• concatenate combines two or more sequences,
  must be supplied a return-type even if that type
  is equal to the sequences type
• (concatenate vector abc (3 4 5)) ? the vector
  of a b c 3 4 5
• search find the first occurrence of subsequence
  in the sequence
• (search sub seq) such as (search abc
  abacabcdabac) ? 4
• mismatch the opposite of search, returns the
  index of the first mismatch, nil if the two
  sequences match exactly

13
Functions That Apply Functions

• We will hold off on covering these in detail
  until later in the semester when we look at how
  to apply functions
• Each of these takes a function and one or more
  sequences, and applies the function to the
  sequence(s) returning either a new sequence or a
  single value
• map a mapping function that returns a new
  sequence of a specified type after the given
  function has been applied to each element of the
  sequence
• (map vector - (1 2 3 4)) ? vector of -1 -2
  -3 -4
• (map list char-upcase hello) ? (\H \E \L
  \L \O)
• merge merge two into a new sequence of a
  specified type
• (merge vector(1 3 5) (2 6) lt ) ? vector of 1
  2 3 5 6
• notice that in map and merge, the new type can
  differ from the original type
• reduce similar to map but reduces the result to
  a single item
• (reduce (1 2 3 4)) ? 10
• sort, some, every, notany, notevery to be
  covered later

14
Using Keywords

• Most sequence functions permit optional
  parameters
• start provide a starting index
• remember, sequences start at index 0
• end provide an ending index
• this is the index of the element after the last
  one you want involved, that is, end is an
  excluded element
• from-end if set to t, then the sequence
  function works from the end of the sequence to
  the front
• start2 and end2 where to start and end in a
  second sequence if the function calls for two
  sequences (such as in search)
• test provide a function to test, used in some
  of the functions, we wont bother exploring it
  yet
• key another function that can be applied to
  each sequence element
• consider a list of lists as in ((a b) (c d) (a
  c) (d e) (a d)) and we want to count how many of
  the second items are equal to d
• (count d seq key cadr) ? 2 (two of the cadrs
  are d)

15
Arrays

• Arrays are a specific type of sequence which have
  attributes that go beyond the sequence such as
  being
• able to store multiple types of elements
• multi-dimensional
• flexible in size if desired
• this attribute might lead to less efficient array
  operations
• To create an array, use make-array
• it accepts an integer specifying the size of the
  array
• or a list of integers that represents the size of
  each array dimension
• optionally you can include
• initial-element followed by a value to
  initialize all array elements
• element-type followed by a type to restrict the
  array to elements of the given type this makes
  the array more efficient to use
• (setf a (make-array 10 initial-element 0))
• (setf b (make-array (10 20 50))) 3-d array
• (setf c (make-array 100 element-type ratio)

16
Arrays As Lists

• Arrays are indicated in CL by (items) as in
• (1 2 3 4 5)
• so if you do (setf a (make-array 4)) then a is
  (nil nil nil nil)
• We can directly manipulate arrays as if they were
  lists that start with a , so for instance, we
  can create and initialize an array
• (setf a (1 2 3 4 5))
• using initial-element only permits you to
  initialize to the same value
• There are several ways to create multidimensional
  arrays
• (setf a (make-array (4 5)) a is a 2-D array
• (setf a (make-array 4 initial-element
  (make-array 5 initial-element)))
• (setf a 2A((nil nil nil nil nil) (nil nil nil
  nil nil) (nil nil nil nil nil) (nil nil nil nil
  nil)))
• (setf a ((nil nil nil nil nil) (nil nil nil
  nil nil) (nil nil nil nil nil) (nil nil nil nil
  nil))))
• in the latter three cases, the array is an array
  of arrays
• we can use this last approach to create jagged
  arrays

17
Accessing Array Elements

• To access an element of the array, use aref
• or elt
• recall that arrays start at element 0
• (aref x 0) ? 0th element or x0
• (aref y 0 1 6) ? element y016
• We can assign an array to equal a section of
  another array using displaced-to
• (setf a (make-array (4 3)))
• (setf b (make-array 8 displaced-to a
  displaced-index-offset 2))
• (aref a 0 2) (aref b 0), (aref 2 1) (aref b
  5)
• Aref is setf-able that is, you assign values
  into an array using (setf (aref array
  subscript(s)) value)
• (setf (aref a 2 2) 10) for the 2D array above

18
Array Functions

• array-rank returns the number of dimensions for
  an array
• array-dimension, when given an array and a
  dimension number, returns the size of that
  dimension
• (setf a 3a((() () ()) (() () ())))
• (array-rank a) ? 2 (2-dimensional)
• (array-dimension a 1) ? 3 (dimension 1 has 3
  elements)
• array-dimensions returns a list of all of the
  dimensions number of elements
• (array-dimensions a) ? (x 3) depending on how
  many elements make up
• array-total-size the total number of elements
  in the array (which is calculated as a product of
  the dimensions from array-dimensions)
• Note that these work only if the array is
  rectangular, not jagged
• array-in-bounds-p given an array and
  subscripts, returns t if the subscripts are
  within legal bounds, nil otherwise
• good for error checking prior to an aref operation

19
Adjustable Arrays

• One unique aspect of Common Lisp arrays is that
  you can make them adjustable
• If you declare an array to be of some size XxY
  and later find that you need to expand it to be
  (Xm)x(Yn), you can do that if the array is
  adjustable
• notice that this is not like in Java where you
  create a new array, copy the old into the new,
  and then reassign your array pointer variable
• you can similarly do array resizing in CL like
  you do in Java, but this can be inefficient
  takes time to copy the old array over
• Instead, if you specify your array as adjustable
  t when you use make-array, then the array is
  adjustable
• This means that you can arbitrarily change the
  size of the array without having to do array
  copying
• Adjustable arrays might be less efficiently
  accessed than ordinary arrays especially if you
  are adjusting them often

20
How To Adjust An Array

• Use the function adjust-array
• (adjust-array array new-dimensions)
• new-dimensions will be a single integer for a
  one-dimensional array, or a list of integers for
  multi-dimensional arrays
• new dimensions must have the same rank as the
  array had originally (you can change size, but
  not dimensions)
• the changed size can be smaller or larger than
  the original array
• if smaller, obviously some elements are chopped
  out of the array
• if larger, the original elements will remain
  where they were in the array (although not
  necessarily where they were in memory)
• Adjust-array returns an array of the new size, if
  we want our array effected, we have to do (setf
  array (adjust-array array ))

21
Example

• (setf a 2a((1 2 3) (4 5 6) (7 8 9) (10 11 12)))
• (array-rank a) ? 2
• (array-dimensions a) ? (4 3)
• (setf a (adjust-array a (5 3))) ? a is now reset
  to be 2a((1 2 3) (4 5 6) (7 8 9) (10 11 12) (nil
  nil nil))
• (setf a (adjust-array a (5 4))) ? a is now reset
  to be 2a((1 2 3 nil) (4 5 6 nil) (7 8 9 nil) (10
  11 12 nil) (nil nil nil nil))
• (setf a (adjust-array a (4 4))) ? a is now reset
  to be 2a((1 2 3 nil) (4 5 6 nil) (7 8 9 nil) (10
  11 12 nil))
• (setf a (adjust-array a 4)) ? error, a is
  unaffected
• (setf a (adjust-array a (4 4 2)) ? error, a is
  unaffected

22
Strings

• Strings are vectors of characters
• You could create a string using (make-array size
  element-type character) where size is the size
  of the string
• Alternatively, you could create a string using
  as you do in Java as in (setf a hello)
• And a third alternative is to specify the
  individual characters in an array such as (\a
  \b \c)
• note that (abc) is not the same, this would be
  an array of strings where the array currently
  only has 1 string
• A fourth alternative is to use (make-string size)
  which has an optional initial-element
• The second and fourth mechanisms will provide the
  most efficient string and the second mechanism is
  probably the easiest

23
String Comparison Functions

• string compares two strings to see if their
  corresponding characters are equal (i.e., equal
  instead of eq) and will always be false if the
  two strings are of different lengths
• string-equal same except that it ignores case
  (equalp instead of equal)
• stringlt, stringgt, stringlt, stringgt, string/
  again, case-sensitive
• string-lessp, string-greaterp, string-not-greaterp
  , string-not-lessp case-insensitive
• all of these permit start, end, start2, end2
  optional keyword parameters
• (equallt s1 s2 start 5 end 9 start2 2 end2 6)

24
String Manipulation Functions

• string-trim given a sequence of characters and
  a string, it returns the string with all of the
  characters in the sequence trimmed off of the
  beginning and the ending of the string
• (string-trim '(\0 \1 \2 \3 \4 \5 \6 \7
  \8 \9) 853 Pine Street Apt. 34) ? Pine
  Street Apt.
• (string-trim '(\0 \1 \2 \3 \4 \5 \6 \7
  \8 \9) 853 Pine Street Apt. 34A) ? Pine
  Street Apt. 34A
• there are also functions to trim only the left or
  right side (string-trim-left, string-trim-right)
• string-upcase, string-downcase, string-capitalize
  returns the string with all letters in
  uppercase, lowercase, or starting letters in
  uppercase, all other characters are unaffected
• nstring-upcase, nstring-downcase,
  nstring-capitalize are destructive versions
• All of these functions permit start and end
  parameters
• string returns a string unaffected if the
  parameter is a string, otherwise converts the
  argument to a string (if possible)
• (string \a) ? a, (string 392) ? error

25
Association Lists

• Recall that a cons cell whose cdr does not point
  to a list but instead to an item creates a dotted
  pair
• The association list (a-list or assoc-list) uses
  this to store a key/value pair in the form (key .
  value)
• the car of any cons cell is the key, the cdr is
  the value
• A list of dotted pairs is an association list
• We could create the a-list by hand, or use some
  of the association list built-in functions
• The association list gives us the ability to see
  whats going on inside of the dictionary-style
  data structure, but if the association list
  becomes lengthy, searching it leads to poorer
  performance than using the hash table
• So, for small sets of data, or for sets of data
  where you have no idea how big your hash table
  should be, you can use the association list
• Or, for data where you want to do more than what
  is offered by the hash table, you can use the
  association list
• Otherwise, it is best to use the hash table for
  both efficiency and simplicity

26
Adding to an A-List

• To add a new dotted pair to an A-list, use acons
  (similar to cons)
• (acons key datum alist)
• this is equivalent to (cons (cons x y) a)
• note for this to be a true a-list, neither x nor
  y should be a list
• To create pairs, you can use pairlis
• (pairlis lis1 lis2) ? this creates a group of
  dotted pairs with corresponding elements from
  both lists
• (pairlis (a b) (1 2)) ? ((b . 2) (a . 1))
• the two lists must be of the same length
• you can optionally supply an a-list as a third
  argument, then the new pairs are consed to the
  original list
• (setf alist (pairlis (newkeys) (newdata) alist))
  ? adds to alist the new pairs
• Note a-lists should mimic the usage of hash
  tables, but there is nothing to prevent you from
  adding a duplicate key to an a-list!

27
Accessing Into an A-List

• The access command is assoc followed by the key
  of the item desired, and the alist
• (assoc fred students) ? returns the dotted pair
  whose car is fred (note this returns the
  entire cons cell, not just the cdr)
• The function is basically doing this (defun
  assoc (a lis) (if (equal a (caar lis)) (car lis)
  (assoc a (cdr lis))))
• If you know the item and want the key, use rassoc
• (rassoc smith students) ? the dotted pair whose
  cdr is smith
• This function is the same as the above function
  except that we have (equal a (cdar lis))
  notice, this is not (cadr!)
• You can change entries using rplaca and rplacd
  with assoc or rassoc
• (rplaca (assoc key lis) newkey) rplaca to
  replace the key
• (rplacd (assoc key lis) newdatum) rplacd to
  replace the datum
• (rplaca (rassoc datum lis) newkey) rplaca to
  replace the key
• (replacd (rassoc datum lis) newdatum) rplacd to
  replace the datum

28
Property Lists

• A hold-over from early lisp is the property list
• The property list is a group of properties (or
  attributes) attached to a symbol (instead of a
  variable), and is used to describe that symbolic
  entity
• the p-list, like an a-list, stores pairs of items
• unlike the a-list, no key can be duplicated in
  the p-list
• and there is no variable that points to the list,
  only a symbol
• P-list operations are usually destructive
• most often, a-list operations are non-destructive
  and require that you use setf to alter the a-list
• The p-list does not use dotted pairs, but instead
  pairs of values in a list so that the first item
  is the key and the second is the property of the
  key
• therefore, p-lists will always have an even
  number of elements
• Get is used to access the p-list (get plist key)
  and returns keys associated property (notice
  that we use the symbol, not a variable, to access
  it)
• Example the property list Zappa contains (name
  Frank job musician status dead)
• (get Zappa job) returns musician
• (get Zappa salary) returns nil
• (get Zappa salary unknown) returns unknown

29
P-list Functions

• Aside from get, we use setf to add to a p-list
• (setf (get zappa name) Frank)
• (setf (get zappa job) musician)
• (setf (get zappa status) dead)
• notice unlike an A-list, we cannot just create
  the list as (setf zappa (name Frank job musician
  status dead)) because this would treat zappa as a
  variable pointing to a list, not a p-list
• remprop removes a property pair from the p-list
• (remprop zappa status) remember, this is
  destructive, so you dont have to reassign zappa
  to be the list that this returns
• symbol-plist returns the plist for us to use in
  other functions rather than the symbol
• it also returns the list in a somewhat readable
  format
• (symbol-plist zappa) would return
• (PKGSYMBOL-NAME-STRING "ZAPPA" STATUS DEAD JOB
  MUSICIAN NAME FRANK

30
Using Plists

• Since you are attaching a group of properties to
  a symbol, you cannot directly access the list
• In the previous example, the symbol was Zappa
• now Zappa is not a variable, so you cant get
  access to the p-list like you would with arrays,
  a-lists or others
• To get ahold of the p-list, use symbol-plist as
  we saw on the previous slide
• Operations getf and remf are like get and remprop
  but operate on the p-lists themselves
• (getf plist key) (get name key) where
  (symbol-plist name) ? plist
• Finally, get-properties can return all of the
  properties from a list of properties requested
• (get-properties (symbol-plist zappa) (name job
  status)) ? (name Frank job musician status dead)

31
Structures

• Structures allow you to create non-homogenous
  data structures
• In C, these are called structs
• In Java, there is no equivalent, although objects
  are like this
• Unlike C and Java however, structures in CL have
  a lot of short-cut options and accessing
  functions which are automatically generated for
  you
• To define a structure
• (defstruct name slots)
• Slots are just names that you want to call each
  item/member of the structure
• (defstruct person name sex age occupation)
• You can supply your defstruct a variety of
  keyword arguments for any/every slot such as
• type limit the slot to containing a specific
  type of datum
• read-only restrict a slot to be a constant set
  to the initialization value
• and/or provide default values (wrap the name and
  value in ( )s)

32
Generated Functions

• Once you have defined your structure, you can now
  generate instances of the structure and access
  the slots
• make-name generates an instance of a structure
  called name
• If you named it person, then (make-person)
  creates the instance
• You can specify initial values in your function
  call by using slot value
• (make-person name Frank age 53) just returns
  the struct
• (setf a (make-person name Frank age 53))
  stores the struct in a variable
• Slots without default values, or without
  initialized values, will be nil
• the make-name function is automatically generated
  when you do defstruct
• Another function is of the form
  structname-slotname, which accesses that
  particular slot (also generated when you do
  defstruct)
• (person-name a) ? returns the value of as name
  slot
• Slots are setf-able
• (setf (person-age a) 50)
• Structures also have type-checking predicate
  functions generated
• (person-p a) ? t, alternatively you can do (typep
  a person)

33
Other Structure Comments

• As with arrays, you can instantiate a structure
  on your own using the form s(type values) as in
• (setf b s(person name jim age 44 sex m))
• fields not listed in such a statement default to
  their default values or nil
• You can also have other functions generated for
  you in your defstruct statement
• define a constructor function
• define a copier function (to make a copy of a
  structure)
• define a prediction function
• the predicate function is automatically created
  for you, but this permits you to change the name
  of the function
• To do any of these, you wrap the structure name
  and these commands in a layer of ( )s, we will
  see details on the next slides
• Finally, you can specify include struct-type
  which builds upon struct-type, providing you a
  form of inheritance
• Again, the syntax differs, see the next slide

34
Example

• Lets flesh out our person example
• (defstruct person name (sex m) age (occupation
  unknown))
• (setf p1 (make-person name Bob age 20))
• (setf p2 (make-person name Sue sex f age 33
  occupation professor))
• (print (list enter occupation for (person-name
  p1)))
• (setf (person-occupation p1) (read))
• (defstruct (doctor (include person))
  medical-school (done-interning t))
• notice here that the name of this structure and
  its parent are placed inside of parens, and
  then we list the additional slots
• (setf p3 (make-doctor name Fred age 49
  occupation doctor medical-school OSU))
• we can similarly define a print-function to
  specify how the structure should be printed out,
  and conc-name if we want to alter the slot names
  to not have to include the structures name
• for instance change (person-name p1) to be (p-n
  p1)
• details for both of these are given in
  http//www.psg.com/dlamkins/sl/chapter06.html

35
More on Structure Inheritance

• Notice in the previous example we had to specify
  the occupation in p3 to give it an initial value
• we would normally prefer to include (occupation
  doctor) in the defstruct for doctor so that all
  doctors have a default occupation of doctor, but
  unfortunately that would override part of
  persons definition
• for structures, the form of inheritance that we
  see is not controllable, unlike in OOP, so we
  cant override what we inherit
• we similarly cannot use any form of multiple
  inheritance for structures
• we can get around both of these problems by using
  classes, something we will study later in the
  semester
• If a variable points to a structure that inherits
  from another, which structure do you use to
  specify the slots?
• Either
• So p1s slots are accessed by (person-slot p1)
  but p3s slots can be accessed either by
  (person-slot p3) or (doctor-slot p3)
• with the exception of those slots only defined by
  the doctor structure, they can only be accessed
  as doctor-slot
• (person-p p1), (person-p p2) and (doctor-p p2)
  return t and (doctor-p p1) is nil as we might
  expect

36
Using the Constructor

• The constructor slot allows you to specify the
  name of a default constructor along with the
  parameters that the constructor expects
• You can only use this option if you have placed
  the structures name inside of parens
• (defstruct (foobar (constructor construct-foobar
  ())) ) rather than (defstruct foobar
  (constructor))
• The parameters listed should be the same names as
  the slots
• You can use key or optional as desired
• So, we change our person as follows
• (defstruct (person (constructor construct-person
  (name optional age sex occupation))) name age
  (sex m) (occupation unknown))
• Now we can do (make-person) or (make-person
  name) or we can do (construct-person fred),
  etc.
• This prevents us from having to initialize slots
  by using the clunky slot-name value format
