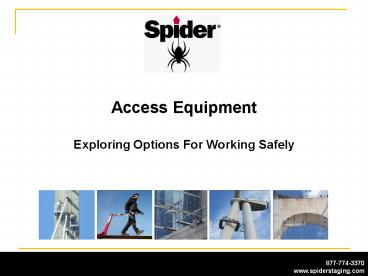

Access Equipment

1
Access Equipment

• Exploring Options For Working Safely

2
Agenda

• Methods to get to work
• Responsibilities
• Code Requirements
• Quality training
• Accident prevention programs

3
Access Equipment Choices

• ST17 Single Point Suspended Scaffold
• The industry standard for work in refineries,
  tank farms, shipyards, offshore platforms and
  heavy construction
• Lowering cost of ownership, improving the
  reliability
• Drum hoist
• Swing stages
• Boom and scissor lifts
• Rope access
• Supported scaffold
• Ground up scaffold

4
Responsibilities

• Employer / Employee Relationship
• OSHA governs the Employer/Employee relationship
• Employer / Supplier Relationship
• OSHA does not govern the Employer/Supplier
  relationship

5
Requirements

• Manufacturers need to provide equipment that
  complies with OSHA codes
• 1910.28 (i)(1)
• 1926.451(d)(13)
• UL1323 Design Criteria
• Recognized Testing lab
• UL Underwriters Laboratory
• FM Approvals
• Canadian Standards Associations (CSA)
• TUV Rheinland

6
Check Before You Buy

• Verify UL standards
• www.UL.com
• Not all manufactures invests in UL
• Meets or exceeds the applicable OSHA and ANSI
  standards
• Protect your interests by educating yourself
  before you buy

7
UL Certifications Directory Example

• UL Online Certifications Directory
• Home Quick Guide Contact Us UL.com
• TUFV.SA5062Equipment, Scaffolding
• Page Bottom
• Equipment, Scaffolding
• See General Information for Equipment,
  Scaffolding
• SAFEWORKS L L CSA5062365 UPLAND DR TUKWILA, WA
  98188-3802 USA
• Air-powered drum type hoists Model(s) ST-17 (max
  rated load 1000 lbs), ST-17-1 (max rated load
  1000 lbs), ST-19A (max rated load 1000 lbs),
  ST-26 (max rated load 1000 lbs)
• Electrically operated hoists, "Series 10"
  Model(s) 1000E (max rated load 1000 lbs), 1500E
  (max rated load 1500 lbs)
• Electrically operated hoists, "Series PC1"
  Model(s) PC1-1000E (max rated load 1000 lbs),
  PC1-1000EC (max rated load 1000 lbs), PC1-1000EDV
  (max rated load 1000 lbs), PC1-750E (max rated
  load 750 lbs), PC1-750EC (max rated load 750
  lbs), PC1-750EDV (max rated load 750 lbs)
• Electrically operated hoists, "Series PCN"
  Model(s) PCN-1000E (max rated load 1000 lbs),
  PCN-1000EC (max rated load 1000 lbs), PCN-1000EDV
  (max rated load 1000 lbs), PCN-750EC (max rated
  load 750 lbs), PCN-750EDV (max rated load 750
  lbs)
• Electrically operated hoists Model(s) Astro
  85-3E1500 (max rated load 1500 lbs), Astro
  85-3E1500M (max rated load 1500 lbs), Astro
  85-3E2000 (max rated load 2000 lbs), Astro
  85-E1000 (max rated load 1000 lbs), Astro
  85-E1000M (max rated load 1000 lbs), Astro
  85-E1500M (max rated load 1500 lbs), Astro
  85-E600 (max rated load 600 lbs), Astro 85-E750
  (max rated load 750 lbs), Astro 85-EDV1000M (max
  rated load 1000 lbs), Astro 85-EDV1500M (max
  rated load 1500 lbs), Astro-85-E1500 (max rated
  load 1500 lbs), PC3-1000 (max rated load 1000
  lbs), PC3-1500 (max rated load 1500 lbs),
  SC1000 (max rated load 1000 lbs), SC1500 (max
  rated load 1500 lbs), ST-180 (max rated load 1250
  lbs), ST-180-1 (max rated load 1250 lbs),
  ST-180-4 (max rated load 1250 lbs), ST-180-5 (max
  rated load 1250 lbs), ST-19-E (max rated load
  1000 lbs)
• ST-27 consisting of component parts 27-1 thru
  27-6 (max rated load 1500 lbs)
• Pneumatically operated hoists, "Series 10"
  Model(s) 1000A (max rated load 1000 lb at 100
  psi), 1000A (max rated load 1250 lbs at 120 psi)
• Pneumatically operated hoists, "Series PC1"
  Model(s) PC1-1000A (max rated load 1000 lbs at
  120 psi)
• PC1-750A (max rated load 1000 lbs at 120 psi)
• PC1-750A (max rated load 750 lbs at 90 psi)
• Pneumatically operated hoists, "Series PCN"
  Model(s) PCN-1000A (max rated load 1000 lbs at
  120 psi)

8
Equipment Qualification

• ISO 90012008
• Sustainable quality system in production of
  equipment - an added layer of protection and 3rd
  party auditing
• UL 3rd Party Certification
• UL examiners regularly inspect equipment during
  production to verify consistent sustained
  production as designed and originally tested and
  listed, driving a safer, more reliable product.
• Standard Work Instructions (SWI)
• Investment in reliable customer experience
  regardless of which Spider location provides the
  equipment - only Spider invests in this

9
Equipment Sourcing
Look for

• Multiple locations with a large inventory to rent
  equipment and the capability to support
  fleet-owned equipment with local parts and repair
  services
• ISO 90012008 audited certification of the
  manufacturer of the equipment independent
  verification of quality
• Manufacturer as direct supplier for best
  responsiveness
• Certified trainers, technicians and field labor
  crews to provide project support ranging from
  supervision only to turnkey labor

10
Equipment Sourcing Cont.

• Products that are 3rd party inspected, such as by
  Underwriters Laboratory or CUL for better safety
• Rental fleet that is thoroughly serviced
  following each rental to extensively documented
  standard work instruction for best total value
• Versatile products that stretch your budget to
  allow repurposing equipment to other jobs
• Reputation ask about supplier performance, talk
  to current customers
• Longevity theres no better credential for the
  suppliers into a risk-intense environment.
  Staying power matters

11
Use Appropriate Safety Systems

• Each type of access equipment has unique safety
  requirements
• Example Drum hoist and ST17
• Every hoist is required to have both an Overload
  and an Overspeed safety system
• Brakes must be dual action
• 1926.451 requirement for brakes to engage when
  either an accelerated overspeed or a shock force
  is applied
• Fall Protection is required with man-lifts/boom
  lifts
• Suspended scaffolds must have a PFAS
  Independent Lifelines

12
Quality training

• Competent Person Training
• Need to meet OSHA standards provides suspended
  scaffold operations training on hazard awareness
  mitigation, fall protection, rigging
• Industrial courses focus on rigging hoist
  operation use in industrial applications

13
Accident Prevention Programwith Pre- planning

• Worker training
• Hazard recognition
• Safe rigging practices
• Communication
• Basic self-rescue
• Understand assisted rescue concept
• Mitigate Risk 100 Fall Protection
• Qualified and Competent Person
• roles clearly defined and followed
• Scheduled daily inspections
• Regular maintenance of all equipment
• Site-specific rescue plan prior to starting

14
Prompt Response is Criticalfor Risk at Heights

• What is your current plan?
• Account for specific job site rules
• Be proactive - site specific fall protection plan
• Plans must be in place before start work
• Find out if theres compliance space or
  restricted access area
• Be prepared for remote area that you can not rely
  on 911
• Typically a quality accident and training program
  will include initial training CPT
• Have a formal written safety plan
• Pre-Task Planning Form (JHA)

15
Questions?

• FREE white paper Seven New Ideas for Working
  Safely at Height http//www.spiderstaging.com/Tec
  hDocWhite.aspx
