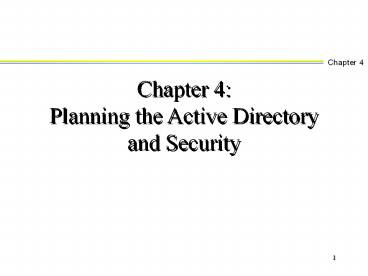

Chapter 4: Planning the Active Directory and Security

1
Chapter 4 Planning the Active Directory and
Security
2
Learning Objectives

• Explain the contents of the Active Directory
• Plan how to set up Active Directory elements such
  as organizational units, domains, trees, forests,
  and sites
• Plan which Windows 2000 security features to use
  in an organization, including interactive logon,
  object security, and services security

3
Learning Objectives (continued)

• Plan how to use groups, group policies, and
  security templates
• Plan IP security measures

4
Windows NT Domain Structure

• Security Accounts Manager (SAM) database holds
  data on user accounts, groups, and security
  privileges
• One primary domain controller (PDC) has master
  copy of the SAM
• One or more backup domain controllers (BDCs) have
  regularly backed up copies of the SAM
• If PDC Fails, BDC is promoted

5
Using a PDC, BDCs, and the SAM database
Figure 4-1 Windows NT SAM architecture
6
Windows 2000 Active Directory

• Domain objects including user accounts,
  computers, servers, printers, groups, security
  policies, domains, and other objects compose the
  Active Directory

7
Windows 2000 Active Directory

• Made up of the following files
• NTDIS.DIT single file of the database
• EDB.LOG Log files associated with database
  transactions
• EDB.CHK error tracking/correction info for
  database
• RES1.LOG and RES2.LOG reserve disk space

8
Active Directory Objects
Figure 4-2 Domain objects in the Active Directory
9
Active Directory Objects

• Object Types
• User Account
• Computer Account
• Domain Controller
• Groups
• Organizational Unit
• Printers

10
Multimaster Replication

• Multimaster replication In Windows 2000 there
  can be multiple servers, called domain
  controllers (DCs), that store the Active
  Directory and replicate it to each other. Because
  each DC acts as a master, replication does not
  stop when one is down. Each DC is a master in its
  own right.

11
Multimaster Replication

• Can create account on any of the DCs
• Other DCs automatically updated
• Can be done for changed data only, dont have to
  replicate whole file
• If one DC fails, others are up-to-date and system
  systems up
• Dont have to stop to promote a BDC

12
Schema

• Schema Elements used in the definition of each
  object contained in the Active Directory,
  including the object class and its attributes

13
Example Schema Characteristics of the User
Account Class

• Unique object name
• Globally unique identifier (GUID) associated with
  each object name
• Required attributes
• Optional attributes
• Syntax of how attributes are defined
• Pointers to parent entities

14
Example User Account Attributes

• Username
• Users full name
• Password

15
Schema Example
Figure 4-4 Sample schema information for user
accounts
16
Default Object Classes

• Domain
• User account
• Group
• Shared drive
• Shared folder
• Computer
• Printer

17
Object Naming

• Common name (CN) The most basic name of an
  object in the Active Directory, such as the name
  of a printer
• E.g. HPLaserMain
• Distinguished name (DN) A name in the Active
  Directory that contains all hierarchical
  components of an object, such as that objects
  organizational unit and domain, in addition to
  the objects common name
• CNltobject Namegt, OUltorganizatoional unit,
  OltOrganizationgt, CltCountryCodegt

18
Namespace

• Namespace Can be set up as a DNS server

19
Active Directory Elements

• Domains
• Organizational units (OUs)
• Trees
• Forests
• Sites

20
Active Directory Architecture
Figure 4-5 Active Directory hierarchical
containers
21
Functions of a Domain

• Provide a security boundary for objects in a
  common relationship
• Establish a set of data to be replicated among
  DCs
• Expedite management of a set of objects

22
Using a Single domain
Figure 4-6 Single domain
23
Using Multiple Domains
Figure 4-7 Using multiple domains
24
Domain Creation Dos and Donts
25
Domain Creation Dos and Donts (continued)
26
Functions of an OU

• Group related objects, such as user accounts and
  printers, for easier management
• Reflect the structure of an organization
• Group objects to be administered using the same
  group policies

27
Using OUs to Reflect Organizational Structure
Figure 4-8 OUs used to reflect the divisional
structure of a company
28
Design Tips for Using OUs

• Limit OUs to 10 levels or fewer
• OUs use less CPU resources when they are set up
  horizontally instead of vertically
• Each request through an OU level requires CPU
  time in a search

29
OU Creation Dos and Donts
30
OU Creation Dos and Donts (continued)
31
Characteristics of a Tree

• Member domains are in a contiguous namespace
• chi.devry.edu tp.devry.edu under devry tree
• Member domains can compose a hierarchy
• Member domains use the same schema for common
  objects
• Member domains use the same global catalog
  (encyclopedia of info about object)

32
Global Catalog

• Global catalog A grand repository for all
  objects and the most frequently used attributes
  for each object in all domains. Each tree has one
  global catalog.

33
Global Catalog Functions

• Authenticating users
• Providing lookup and access to resources in all
  domains
• Providing replication of key Active Directory
  elements
• Keeping a copy of the most attributes for all
  objects

34
Hierarchical Domains in a Tree
Figure 4-9 Tree with hierarchical domains
35
Kerberos Transitive Trust

• Kerberos Transitive Trust Relationship A set of
  two-way trusts between two or more domains in
  which Kerberos security is used.

36
Trusted and Trusting Domains

• Trusted domain A domain that has been granted
  security access to resources in another domain
• Trusting domain A domain that allows another
  domain security access to its resources and
  objects, such as servers

37
Tree Creation Dos and Donts
38
Tree Creation Dos and Donts (continued)
39
Planning Tip

• Make sure each tree has at least one DC that is
  also configured as a global catalog
• Locate global catalog servers in a network design
  architecture that enables fast user
  authentication (so that authentication does not
  have to be performed over a WAN link, for
  example)

40
Characteristics of a Forest

• Member trees use a disjointed namespace (but
  contiguous namespaces within trees)
• Member trees use the same schema
• Member trees use the same global catalog

41
Single Forest

• Single forest An Active Directory model in which
  there is only one forest with interconnected
  trees and domains that use the same schema and
  global catalog

42
Single Forest Architecture
Figure 4-10 A forest
43
Separate Forest

• Separate forest An Active Directory model that
  links two or more forests in a partnership, but
  the forests cannot have Kerberos transitive
  trusts or use the same schema

44
Separate Forest Architecture
Figure 4-11 Separate forest model
45
Forest Creation Dos and Donts
46
Forest Creation Dos and Donts (continued)
47
Design Tip

• When you create a separate forest structure
  remember that
• Replication cannot take place between forests
• The forests use different schema and global
  catalogs
• The forests cannot be easily blended into a
  single forest in the future

48
Site

• Site An option in the Active Directory to
  interconnect IP subnets so that it can determine
  the fastest route to connect clients for
  authentication and to connect DCs for replication
  of the Active Directory. Site information also
  enables the Active Directory to create redundant
  routes for DC replication.

49
Characteristics of a Site

• Reflects one or more interconnected subnets (512
  Kbps or faster)
• Reflects the same boundaries as the LAN
• Used for DC replication
• Enables clients to access the closest DC
• Composed of servers and configuration objects

50
Site Links

• Site link object An object created in the Active
  Directory to indicate one or more physical links
  between two different sites
• Site link bridge An Active Directory object
  (usually a router) that combines individual site
  link objects to create faster routes when there
  are three or more site links

51
Site Link Architecture
Figure 4-12 Site link bridge
52
Site Creation Dos and Donts
53
Site Creation Dos and Donts (continued)
54
Design Tip

• Define sites in the Active Directory on networks
  that have multiple global catalog servers that
  reside in different subnets
• Use sites to enhance network performance by
  optimizing authentication and replication

55
Active Directory Guidelines

• Keep the Active Directory implementation as
  simple as possible
• Implement the least number of domains possible
• Implement only one domain on most small networks
• Use OUs to reflect the organizational structure
  (instead of using domains for this purpose)

56
Active Directory Guidelines (continued)

• Create only the number of OUs that are necessary
• Do not create OUs more than 10 levels deep
• Use domains for natural security boundaries
• Implement trees and forests only as necessary

57
Active Directory Guidelines (continued)

• Use trees for domains that have a contiguous
  namespace
• Use forests for multiple trees that have
  disjointed namespaces between them
• Use sites in situations where there are multiple
  IP subnets and geographic locations to improve
  performance

58
Basic Types of Active Directory Security

• Account or interactive logon security
• Object security
• Services security

59
Interactive Logon Security

• DC checks that the user account is in the Active
  Directory
• DC verifies the exact user account name and
  password

60
Object Security

• Security descriptor An individual security
  property associated with a Windows 2000 Server
  object, such as enabling the account MGardner
  (the security descriptor) to access the folder,
  Databases
• Access control list (ACL) A list of all security
  descriptors that have been set up for a
  particular object, such as for a shared folder or
  a shared printer

61
Typical ACL Types of Information

• User account(s) that can access an object
• Permissions that determine the type of access
• Ownership of the object

62
Typical Object Permissions

• Deny No access to the object
• Read Access to view or read the objects
  contents
• Write Permission to change the objects contents
  or properties
• Delete Permission to remove an object
• Create Permission to add an object
• Full Control Permission for nearly any activity

63
Example Special Permissions
Figure 4-13 Special permissions for a folder
64
Troubleshooting Tip

• Deny permission supercedes other permissions,
  thus if there is a permissions conflict for one
  of your users, check the deny permissions
  associated with that users account

65
Services Security

• Windows 2000 enables you to set up security on
  individual services, such as DHCP

66
Setting Services Security
Figure 4-14 DHCP security
67
Using Groups

• Set up security groups of user accounts as a way
  to more easily manage security

68
Setting Up Members of a Group
Figure 4-15 DHCP Administrators group
69
Group Policies

• Use group policies to manage security for local
  servers, OUs, and domains
• Employ security templates when you need to manage
  several different group policies

70
Example Areas Covered by Group Policies

• Account polices
• Local server and domain policies
• Event log tracking policies
• Group restrictions
• Service access security
• Registry security
• File system security

71
Setting Up Security Templates
Figure 4-16 Security Templates snap-in
72
IP Security

• IP security (IPSec) A set of IP-based secure
  communications and encryption standards created
  through the Internet Engineering Task Force (IETF)

73
IP Security Policies

• IP security (IPSec) can function in three roles
  relative to a client
• Client (Respond Only) in which the server uses
  IPSec, if the client is using it first
• Server (Request Security) in which the server
  uses IPSec by default, but will discontinue using
  IPSec if it is not supported by the client
• Secure Server (Require Security) in which the
  server only communicates via IPSec

74
Configuring IPSec
Figure 4-17 IP Security Policy Wizard
75
Troubleshooting Tip

• On a network that uses IPSec, if you are having
  trouble gathering network performance information
  from some older devices that do not support
  IPSec, omit the SNMP communications protocol from
  IPSec

76
Chapter Summary

• Active Directory and security implementation are
  interrelated
• The Active Directory is a set of services for
  managing Windows 2000 servers
• Use Active Directory elements such as OUs,
  domains, trees, and forests to help manage server
  objects and resources

77
Chapter Summary

• Use sites to configure network communications for
  better performance through taking advantage of
  existing subnets
• Groups and group policies enable you to manage
  security
