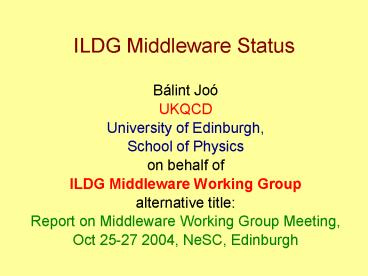

ILDG Middleware Status

1
ILDG Middleware Status

• Bálint Joó
• UKQCD
• University of Edinburgh,
• School of Physics
• on behalf of
• ILDG Middleware Working Group
• alternative title
• Report on Middleware Working Group Meeting, Oct
  25-27 2004, NeSC, Edinburgh

2
Working Assumptions (v1)

• Gauge Connection-esque but decentralised
• ILDG Services are read only
• Publication, deletion and modification are
  local issues (within collaborations)
• File name management is a local issue
• Local issues not standardised
• Middleware WG may go on to standardise
  publication etc in a future version once this
  simple one is in production

3
Working Assumptions (v1)

• Collaborations track their data in other
  collaborations grid
• Ties data to producing collaboration
• Data only appears in producing collaboration's
  Replica Catalog (RC)
• BUT data may still live physically near a
  consumer
• Allows easy location of RC if producing
  collaboration is known.

4
Working Assumptions (v1)

• Data has UNIX like access permissions
• Owner, group, world
• Owner and group access authenticated through
  certificates
• Anonymous world access
• no certificate required

5
Architecture Overview

• Client / Server model
• Services (Standardised)
• will be Stateless Web Services
• communicating through SOAP messages
• will have MINIMAL interfaces
• Minimal amount of standardisation
• Clients/Applications (Local issue)
• May be complex
• Maximal amount of local flexibility

6
The obvious...

• Clients/Applications are a local issue BUT
• member collaborations may of course collaborate
  on writing clients
• Can share effort/code
• Outside current Middleware WG remit
• ILDG may consider setting up an Applications WG
  to coordinate effort on clients ?

7
Overview of Services

• Metadata Catalogue (MDC)
• Maps metadata query to
• Metadata document AND/OR
• Global File Name (GFN)
• Replica Catalogue (RC)
• Maps GFN to one or more URLs
• URL can be
• SURL for use with SRM
• Normal URL for download without SRM

8
Overview of Services

• Storage Resource Manager (SRM)
• Already standardised, and in version 2
• SRM standardisation body to become GGF working
  group
• SRM maps SURL to Transfer URL (TURL)
• SRM can negotiate transfer protocol
• SRM can manage a large collection of storage
  devices, deal with certificates etc
• Version 2 reference implementation available from
  Jlab.

9
Overview of Services

• SRM can be highly beneficial for managing storage
• Non SRM based data grids will need to add SRM web
  service interface over their datagrid
  implementation
• But this may be time consuming, so initially RC
  can return TURLs directly and SRM implementation
  is not mandated until everyone has one

10
MDC Interface Definition

• Mandated 4 functions
• doMetadataQuery()
• queries both ensemble and configuration metadata
• doEnsembleQuery()
• queries only ensemble metadata
• doConfigurationQuery()
• queries only configuration metadata
• getSupportedQueryTypes()
• return types of query supported by server

11
MDC Interface Definition

• Query language choice
• Lots to choose from (SQL, Xpath, XQuery, XSLT)
• ILDG must support lowest common denominator...
  (Xpath v1.0?)
• SQL and XML Schema mapping difficult/inefficient
• map only leaf nodes (automatic mapping)?
• potential maintenance nightmare for all eternity
  as Schema changes?

12
MDC Interface Definition

• Adopted M. Sato's working prototype MDC spec
• Asked him to support mandated functions and
  produce WSDL definition.
• Definition and MDC Demo Service are now ready
• http//www.lqa.ccs.tsukuba.ac.jp/WS
• there is a new RC WS prototype there too

13
RC Interface Definition

• Mandated 2 functions
• getURL( GFN )
• returns URL for a given GFN
• returned URL may be stale
• addURL( GFN, URL)
• inform RC that a replica of data for GFN exists
  at URL.
• information may be queued in server for later
  processing
• always succeeds.

14
RC Interface Definition

• Associations in RC may be stale
• local implementation may periodically check all
  associations (consistency agent?)
• Non-mandated management functions
• setProtection(GFN, Protection)
• createGFN(GFN)
• adviseStaleURL(URL)
• Y. Chen has produced WSDL definition and
  reference implementation
• see http//lqcd.jlab.org/rc for details

15
Middleware Technologies
16
GFN Structure

• GFN to be a URI
• gfn//collaboration/local-name
• Control over local-name up to collaboration
• may be flat/opaque strings, may have directory
  like semantics,may or may not support reservation
• Collaboration part can be used to identify
  service instances.
• GFNs are unique persistent - forever

17
(No Transcript)
18
?lt?xml version"1.0"?gt ltILDGGroup
xmlns"http//www.ildg.org/ILDG-Group"gt ltusersgt
ltcertificategt Bag Attributes localKeyID 01
00 00 00 subject/CUK/OeScience/OUEdinburgh/LN
eSC/CNbalint joo issuer/CUK/OeScience/OUAutho
rity/CNCA/emailAddressca-operator_at_grid-support.a
c.uk -----BEGIN CERTIFICATE----- ... -----END
CERTIFICATE----- lt/certificategt lt/usersgt ltgroup
sgt lturlgthttp//www.ph.ed.ac.uk/bj/DummyGroup.xm
llt/urlgt lt/groupsgt ltadministratorsgt
ltemailgtbj_at_ph.ed.ac.uklt/emailgt
ltemailgtcmaynard_at_ph.ed.ac.uklt/emailgt lt/administrato
rsgt lt/ILDGGroupgt
19
ILDG Service Description File

• File on ILDG Web site
• Maintained by hand for now
• Only O(10) participating collaborations envisaged
  for now, can automate later if necessary
• Contains location of ILDG services
• Indexed by collaboration name from GFN

20
lt?xml version"1.0"?gt ltILDGServiceDescription
xmlns"http//www.ildg.org/ILDG-ServiceDescription
" gt ltcollaboration name"ukqcd"gt
ltmdcgthttp//www.ph.ed.ac.uk/Grid/Services/MDClt/mdc
gt lt/collaborationgt ltcollaboration
name"usqcd"gt ltmdcgthttp//www.jlab.org/jlabse
rvices/mdclt/mdcgt ltrcgthttp//lqcd.jlab.org/rc/
services/RC1_0lt/rcgt ltsrmgthttp//www.jlab.org/
jlabservices/srmlt/srmgt lt/collaborationgt
ltcollaboration name"jlqcd"gt
ltmdcgthttp//www.ccs.tsukuba.ac.jp/service/MDClt/mdc
gt ltrcgthttp//www.lqa.ccs.tsukuba.ac.jp/RC1_0lt
/rcgt lt/collaborationgt lt/ILDGServiceDescriptiongt
21
Metadata Envelopes

• Ownership Access not part of physics metadata
• How to add this information to metadata
  non-intrusively ?
• Metadata contains some (but not full) revision
  information?
• Can encapsulate metadata within an envelope

22
lt?xml version1.0?gt ltenvelopegt ltQCDMLgt
... Your QCDML Metadata goes Here
lt/QCDMLgt ltownergtsubject/CUK/OeScience/O
UEdinburgh/LNeSC/ CNbalint joolt/ownergt
ltgroupgthttp//www.ph.ed.ac.uk/WWW/group_file.xmllt/
groupgt ltownerReadgttruelt/ownerReadgt
ltownerWritegttruelt/ownerWritegt
ltgroupReadgttruelt/groupReadgt
ltgroupWritegtfalselt/groupWritegt
ltworldReadgttruelt/worldReadgt
ltworldWritegtfalselt/worldWritegt
ltdateStampgtThu Dec 2 231557 GMT
2004lt/dateStampgt lt/envelopegt
23
Envelopes not Mandated

• Whether to use or not is a local issue
• an implementation hint if you like
• solve problem of dressing metadata
• when Metadata is modified, old revision can be
  kept. Envelope can hold revision information
• Queries/Query results may need to be transformed
  to take account of envelope

24
Timeline (Plans)

• Production middleware by Dec 2005
  (optimistically) or June 2006 (realistically).
• EPCC committed in early 2005 to work on UKQCD
  local implementation...
• Jlab efforts focussed on cluster building
• Participants to cooperate on implementation
• Another middleware meeting between May 2005 Dec
  2005 (in Japan?)
