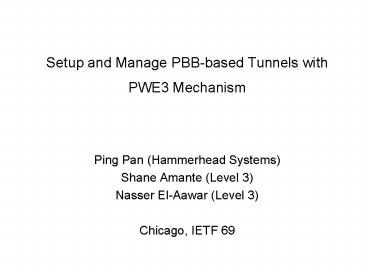

Setup and Manage PBB-based Tunnels with PWE3 Mechanism

1
Setup and Manage PBB-based Tunnels with PWE3
Mechanism

• Ping Pan (Hammerhead Systems)
• Shane Amante (Level 3)
• Nasser El-Aawar (Level 3)
• Chicago, IETF 69

2
What Problem are We Trying to Solve?
Aggregator
Ethernet Circuits in Mac-in-Mac
Encapsulation (dotted red lines)
PBB Tunnels (green tubes)
Ethernet VLAN Circuits (solid red lines)

• Conditions
• All-Ethernet network
• The access/aggregation nets are Q-in-Q
• The core is PBB-based

How to aggregate Ethernet flows into PBB tunnels?
?
3
Observation

• Due to operational reasons, the carriers have a
  good reason in deploying MAC-in-MAC Ethernet core
• Interconnecting Q-in-Q access networks with
  MAC-in-MAC core
• Due to operational reasons, MPLS LERs may not be
  desirable to be used at the edge right now
• Network operation may take a while to migrate
  baby steps!
• There are ways to setup edge-to-edge tunnels
• Existing practice static configuration
• Other proposals dynamic signaling protocols etc.
• Outside of the scope of our proposal
• The scenario is almost identical to that PWE3 has
  a solution for
• Aggregating ACs through PSN tunnels
• Instead of PW header with label, its Mac-in-Mac
  header

4
What does the header look like?
ProviderBackboneBridge (PBB) frame format
Provider Bridge (PB) frame format
Customer frames
Payload
Payload
Payload
Ethertype
Ethertype
Ethertype
C-VID
C-VID
C-VID
C-Tag
Ethertype
Ethertype
Ethertype
C-SA
S-VID
S-VID
S-Tag
802.1
C-DA
Ethertype
Ethertype
C-SA
C-SA
802.1Q
C-DA
C-DA
I-SID
802.1ad
Ethertype
Same formatand Ethertype as an S-Tag
B-VID
C-SA Customer Source MAC address C-DA
Customer Destination MAC address VID VLAN
ID C-VID Customer VID (12 bits) S-VID Service
VID (12 bits) I-SID Service ID (24 bits) B-VID
Backbone VID (12 bits) B-DA Backbone DA B-SA
Backbone SA
Ethertype
B-SA
B-DA
802.1ah
Mac-in-Mac Header
5
Our Proposal

• Target LDP (RFC4447)
• FEC 129
• Encode Mac-in-Mac data in AII and AGI

Aggregator
Ethernet Circuits in Mac-in-Mac Encapsulation
PBB Tunnels
Ethernet VLAN Circuits
6
Operation Overview
Aggregator
A
B
IP-B MAC-B I-SID-B B-VID-B
IP-A MAC-A I-SID-A B-VID-A

• There are PSN tunnels interconnecting node A and
  B
• Operators configure IP, I-SID and B-VID etc. at
  edge
• From node A, send Label Mapping message to node B
  with
• SAII MAC-A, I-SID-A, B-VID-A
• TAII MAC-B, I-SID-B, B-VID-B
• Upon reception, run the standard RFC4447 on Node
  B, then A
• Program the data path for encapsulation and
  aggregation
• Ethernet flows will go through the PBB networks

7
What to be standardized?

• New AII Type
• A new AII format

8
In Conclusion

• PBB is a viable option for Ethernet deployment at
  core
• Aggregating Ethernet VLAN circuits over the core
  is important
• PWE3 has defined a simple mechanism for data
  aggregation at network edge
• Simple means that there is no need for
  extensive IP routing etc.
• By allocating a new AII Type (and associated
  format), we can achieve Ethernet circuit
  aggregation over PBB networks
• Please consider this as a WG document
