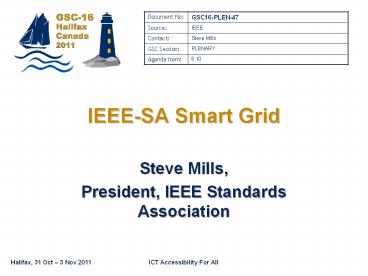

IEEE-SA Smart Grid

1
IEEE-SA Smart Grid
Document No GSC16-PLEN-47
Source IEEE
Contact Steve Mills
GSC Session PLENARY
Agenda Item 6.10

• Steve Mills,
• President, IEEE Standards Association

2
IEEEs Role in Smart Grid

• IEEE utilizes the global expertise and synergy of
  the 44 IEEE societies and technical councils in
  technical development, education, publication,
  and standards community
• IEEE baseline standards in diverse fields
  uniquely position IEEE-SA to integrate these
  technologies into a forward-looking platform
• power, communications
• digital information management controls
  technology
• networking
• security
• reliability assessment
• interconnection of distributed resources
  including
• renewable energy sources to the grid
• sensors, electric metering
• broadband over power line
• systems engineering

3
Global Standards Development Trusted Partner for
Smart Grid..

• ..an Enabler and Catalyst
• Provide leadership to develop consensus
• Provide environment for collaboration
• Enable expeditious standards development
• Ensure integration across all involved
  communities to address future technology
  deployment
• Speed interoperable technology to market
• Ensure certification and compliance for end user
  adoption

3
4
Background Information
More than 100 standards spanning smart grid
spectrum http//standards.ieee.org/announcements/s
ginfo.html Examples Communications IEEE 802
Series (Ethernet, WiFi, WiMax) Interoperability IE
EE P2030 System interoperability
guidelines IEEE P2030.1 Electric-sourced
transportation infrastructure IEEE P2030.2
Storage systems IEEE P2030.3 Testing of storage
systems IEEE C37.238 Time synchronization IEEE
C37.237 Event reporting accuracy IEEE
PC37.118.1 and PC37.118.2 Synchronized phasor
measurements IEEE P1686 Substation Intelligent
Electronic Devices Cyber Security
Capabilities IEEE 1815 Standard information
protocol IEEE P1815.1 IEEE/IEC protocol
mapping IEEE 1901 Broadband IEEE and IEEE P1901.2
Narrowband PLC Green Energy IEEE 1547 Series
(distributed resources, wind power, solar)
4
5
IEEE 2030 Smart Grid Generic Framework

• Methodological Interoperability
• Framework composed of
• Three Interoperability
• Architecture Perspectives
• (IAP)
• Power System (PS)
• Communications
• Technology (CT)
• Information
• Technology (IT)
• IAPs Interoperability Tables

5
