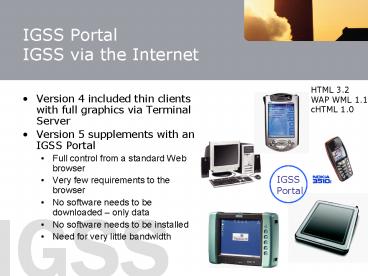

IGSS PortalIGSS via the Internet
HTML 3.2 WAP WML 1.1 cHTML 1.0

• Version 4 included thin clients with full
  graphics via Terminal Server
• Version 5 supplements with an IGSS Portal
• Full control from a standard Web browser
• Very few requirements to the browser
• No software needs to be downloaded only data
• No software needs to be installed
• Need for very little bandwidth

IGSS Portal
2
IGSS Portal Functions

• Objects
• Show actual value/state
• Send command / setpoint
• Alarms
• Online alarms
• Historical Data
• LOG, BCL, Alarm
• Reports
• Manual Report Editor
• Configurable Quick buttons
• Operate with a minimum of clicks
• Protected by IGSS login

3
Login
http//minPc/IgssPortal
4
Object Values
5
Quick buttons
6
Alarms
7
Historical Data

• Object Historian in a browser

8
Reports

• Output from IGSS standard reports

9
MRE - Manual Report Editor
10
Security
IGSS server
IGSS OP
IGSS OP
Terminal server IGSS OP
IIS IGSS Portal IGSS OP
VPN and/or FireWall
802.11 Access Point
Internet
Wireless
Encryption
Internet Browser
802.11 Clients
Terminal Client
