Compiler and Runtime Support for Efficient Software Transactional Memory

1

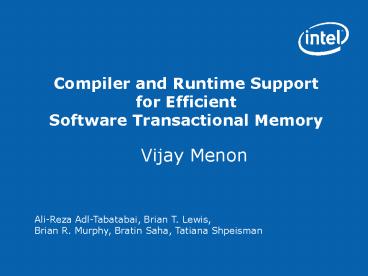

Compiler and Runtime Supportfor
EfficientSoftware Transactional Memory

• Vijay Menon

Ali-Reza Adl-Tabatabai, Brian T. Lewis, Brian R.
Murphy, Bratin Saha, Tatiana Shpeisman
2
Motivation

• Multi-core architectures are mainstream
• Software concurrency needed for scalability
• Concurrent programming is hard
• Difficult to reason about shared data
• Traditional mechanism Lock-based Synchronization
• Hard to use
• Must be fine-grain for scalability
• Deadlocks
• Not easily composable
• New Solution Transactional Memory (TM)
• Simpler programming model Atomicity,
  Consistency, Isolation
• No deadlocks
• Composability
• Optimistic concurrency
• Analogy
• GC Memory allocation TM Mutual exclusion

3
Composability

• class Bank
• ConcurrentHashMap accounts
• void deposit(String name, int amount)
• synchronized (accounts)
• int balance accounts.get(name) // Get
  the current balance
• balance balance amount // Increment
  it
• accounts.put(name, balance) // Set the
  new balance
• Thread-safe but no scaling
• ConcurrentHashMap (Java 5/JSR 166) does not help
• Performance requires redesign from scratch
  fine-grain locking

4
Transactional solution

• class Bank
• HashMap accounts
• void deposit(String name, int amount)
• atomic
• int balance accounts.get(name) // Get
  the current balance
• balance balance amount // Increment
  it
• accounts.put(name, balance) // Set the
  new balance
• Underlying system provide
• isolation (thread safety)
• optimistic concurrency

5
Transactions are Composable
Scalability on 16-way 2.2 GHz Xeon System
6
Our System

• A Java Software Transactional Memory (STM) System
• Pure software implementation
• Language extensions in Java
• Integrated with JVM JIT
• Novel Features
• Rich transactional language constructs in Java
• Efficient, first class nested transactions
• Risc-like STM API
• Compiler optimizations
• Per-type word and object level conflict detection
• Complete GC support

7
System Overview
Polyglot
StarJIT
8
Transactional Java

• Java new language constructs
• Atomic execute block atomically
• atomic S
• Retry block until alternate path possible
• atomic retry
• Orelse compose alternate atomic blocks
• atomic S1 orelseS2 orelseSn
• Tryatomic atomic with escape hatch
• tryatomic S catch(TxnFailed e)
• When conditionally atomic region
• when (condition) S
• Builds on prior research
• Concurrent Haskell, CAML, CILK, Java
• HPCS languages Fortress, Chapel, X10

9
Transactional Java ? Java

• Standard Java STM API
• while(true)
• TxnHandle th txnStart()
• try
• S
• break
• finally
• if(!txnCommit(th))
• continue

• Transactional Java
• atomic
• S
• STM API
• txnStartNested
• txnCommitNested
• txnAbortNested
• txnUserRetry
• ...

10
JVM STM support

• On-demand cloning of methods called inside
  transactions
• Garbage collection support
• Enumeration of refs in read set, write set undo
  log
• Extra transaction record field in each object
• Supports both word object granularity
• Native method invocation throws exception inside
  transaction
• Some intrinsic functions allowed
• Runtime STM API
• Wrapper around McRT-STM API
• Polyglot / StarJIT automatically generates calls
  to API

11
Background McRT-STM

• STM for
• C / C (PPoPP 2006)
• Java (PLDI 2006)
• Writes
• strict two-phase locking
• update in place
• undo on abort
• Reads
• versioning
• validation before commit
• Granularity per type
• Object-level small objects
• Word-level large arrays
• Benefits
• Fast memory accesses (no buffering / object
  wrapping)
• Minimal copying (no cloning for large objects)
• Compatible with existing types libraries

12
Ensuring Atomicity Novel Combination
Memory Ops ? Mode ? Reads Writes
Pessimistic Concurrency
Optimistic Concurrency
In place updates Fast commits Fast reads
Caching effects Avoids lock operations
Quantitative results in PPoPP06
13
McRT-STM Example
atomic B A 5
stmStart() temp stmRd(A) stmWr(B,
temp 5) stmCommit()

• STM read write barriers before accessing memory
  inside transactions
• STM tracks accesses detects data conflicts

14
Transaction Record

• Pointer-sized record per object / word
• Two states
• Shared (low bit is 1)
• Read-only / multiple readers
• Value is version number (odd)
• Exclusive
• Write-only / single owner
• Value is thread transaction descriptor (4-byte
  aligned)
• Mapping
• Object slot in object
• Field hashed index into global record table

15
Transaction Record Example

• Every data item has an associated transaction
  record

Extra transaction record field
class Foo int x int y
Object granularity
Object words hash into table of TxRs Hash is
f(obj.hash, offset)
class Foo int x int y
Word granularity
16
Transaction Descriptor

• Descriptor per thread
• Info for version validation, lock release, undo
  on abort,
• Read and Write set ltTi, Nigt
• Ti transaction record
• Ni version number
• Undo log ltAi, Oi, Vi, Kigt
• Ai field / element address
• Oi containing object (or null for static)
• Vi original value
• Ki type tag (for garbage collection)
• In atomic region
• Read operation appends read set
• Write operation appends write set and undo log
• GC enumerates read/write/undo logs

17
McRT-STM Example
Class Foo int x int y Foo bar, foo
T2
atomic t1 bar.x t2 bar.y

• T1 copies foo into bar
• T2 reads bar, but should not see intermediate
  values

18
McRT-STM Example
T2
stmStart() t1 stmRd(bar.x) t2
stmRd(bar.y) stmCommit()

• T1 copies foo into bar
• T2 reads bar, but should not see intermediate
  values

19
McRT-STM Example
T1
7
5
foo
bar
Abort
hdr
Commit
x 9
x 0
y 7
y 0
T2
stmStart() t1 stmRd(bar.x) t2
stmRd(bar.y) stmCommit()
T2 waits
ltbar, 7gt
Reads
ltbar, 5gt
Reads
ltfoo, 3gt
ltfoo, 3gt
Writes
ltbar, 5gt

• T2 should read 0, 0 or should read 9,7

Undo
ltbar.x, 0gt
ltbar.y, 0gt
20
Early Results Overhead breakdown

• Time breakdown on single processor
• STM read validation overheads dominate
• ? Good optimization targets

21
System Overview
Polyglot
StarJIT
22
Leveraging the JIT

• StarJIT High-performance dynamic compiler
• Identifies transactional regions in JavaSTM code
• Differentiates top-level and nested transactions
• Inserts read/write barriers in transactional code
• Maps STM API to first class opcodes in STIR
• Good compiler representation ?
• greater optimization opportunities

23
Representing Read/Write Barriers
Traditional barriers hide redundant
locking/logging

• stmWr(a.x, t1)
• stmWr(a.y, t2)
• if(stmRd(a.z) ! 0)
• stmWr(a.x, 0)
• stmWr(a.z, t3)

• atomic
• a.x t1
• a.y t2
• if(a.z 0)
• a.x 0
• a.z t3

24
An STM IR for Optimization

• txnOpenForWrite(a)
• txnLogObjectInt(a.x, a)
• a.x t1
• txnOpenForWrite(a)
• txnLogObjectInt(a.y, a)
• a.y t2
• txnOpenForRead(a)
• if(a.z ! 0)
• txnOpenForWrite(a)
• txnLogObjectInt(a.x, a)
• a.x 0
• txnOpenForWrite(a)
• txnLogObjectInt(a.z, a)
• a.z t3

• Redundancies exposed
• atomic
• a.x t1
• a.y t2
• if(a.z 0)
• a.x 0
• a.z t3

25
Optimized Code
Fewer cheaper STM operations

• atomic
• a.x t1
• a.y t2
• if(a.z 0)
• a.x 0
• a.z t3

• txnOpenForWrite(a)
• txnLogObjectInt(a.x, a)
• a.x t1
• txnLogObjectInt(a.y, a)
• a.y t2
• if(a.z ! 0)
• a.x 0
• txnLogObjectInt(a.z, a)
• a.y t3

26
Compiler Optimizations for Transactions

• Standard optimizations
• CSE, Dead-code-elimination,
• Careful IR representation exposes opportunities
  and enables optimizations with almost no
  modifications
• Subtle in presence of nesting
• STM-specific optimizations
• Immutable field / class detection barrier
  removal (vtable/String)
• Transaction-local object detection barrier
  removal
• Partial inlining of STM fast paths to eliminate
  call overhead

27
Experiments

• 16-way 2.2 GHz Xeon with 16 GB shared memory
• L1 8KB, L2 512 KB, L3 2MB, L4 64MB (per four)
• Workloads
• Hashtable, Binary tree, OO7 (OODBMS)
• Mix of gets, in-place updates, insertions, and
  removals
• Object-level conflict detection by default
• Word / mixed where beneficial

28
Effective of Compiler Optimizations

• 1P overheads over thread-unsafe baseline

Prior STMs typically incur 2x on 1P With
compiler optimizations - lt 40 over no
concurrency control - lt 30 over synchronization
29
Scalability Java HashMap Shootout

• Unsafe (java.util.HashMap)
• Thread-unsafe w/o Concurrency Control
• Synchronized
• Coarse-grain synchronization via SynchronizedMap
  wrapper
• Concurrent (java.util.concurrent.ConcurrentHashMap
  )
• Multi-year effort JSR 166 -gt Java 5
• Optimized for concurrent gets (no locking)
• For updates, divides bucket array into 16
  segments (size / locking)
• Atomic
• Transactional version via AtomicMap wrapper
• Atomic Prime
• Transactional version with minor hand
  optimization
• Tracks size per segment ala ConcurrentHashMap
• Execution
• 10,000,000 operations / 200,000 elements
• Defaults load factor, threshold, concurrency
  level

30
Scalability 100 Gets
Atomic wrapper is competitive with
ConcurrentHashMap Effect of compiler
optimizations scale
31
Scalability 20 Gets / 80 Updates
ConcurrentHashMap thrashes on 16 segments Atomic
still scales
32
20 Inserts and Removes
Atomic conflicts on entire bucket array - The
array is an object
33
20 Inserts and Removes Word-Level
We still conflict on the single size field in
java.util.HashMap
34
20 Inserts and Removes Atomic Prime
Atomic Prime tracks size / segment lowering
bottleneck No degradation, modest performance gain
35
20 Inserts and Removes Mixed-Level

• Mixed-level preserves wins reduces overheads
• word-level for arrays
• object-level for non-arrays

36
Scalability java.util.TreeMap
100 Gets
80 Gets
Results similar to HashMap
37
Scalability OO7 80 Reads
Operations traversal over synthetic database
Coarse atomic is competitive with medium-grain
synchronization
38
Key Takeaways

• Optimistic reads pessimistic writes is nice
  sweet spot
• Compiler optimizations significantly reduce STM
  overhead
• - 20-40 over thread-unsafe
• - 10-30 over synchronized
• Simple atomic wrappers sometimes good enough
• Minor modifications give competitive performance
  to complex fine-grain synchronization
• Word-level contention is crucial for large arrays
• Mixed contention provides best of both

39
Research challenges

• Performance
• Compiler optimizations
• Hardware support
• Dealing with contention
• Semantics
• I/O communication
• Strong atomicity
• Nested parallelism
• Open transactions
• Debugging performance analysis tools
• System integration

40
Conclusions

• Rich transactional language constructs in Java
• Efficient, first class nested transactions
• Risc-like STM API
• Compiler optimizations
• Per-type word and object level conflict detection
• Complete GC support

41
(No Transcript)
