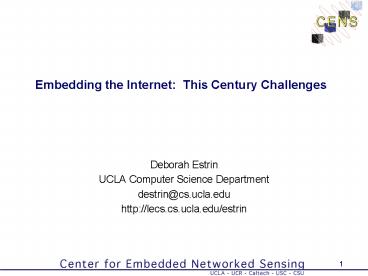

Embedding the Internet: This Century Challenges

1
Embedding the Internet This Century Challenges

• Deborah Estrin
• UCLA Computer Science Department
• destrin_at_cs.ucla.edu
• http//lecs.cs.ucla.edu/estrin

2
Embedded Networked Sensing Potential

• Micro-sensors, on-board processing, and wireless
  interfaces all feasible at very small scale
• can monitor phenomena up close
• Will enable spatially and temporally dense
  environmental monitoring
• Embedded Networked Sensing will reveal previously
  unobservable phenomena

Seismic Structure response
Contaminant Transport
Ecosystems, Biocomplexity
Marine Microorganisms
3
Enabling Technologies
Embed numerous distributed devices to monitor and
interact with physical world
Network devices to coordinate and perform
higher-level tasks
Embedded
Networked
Exploitcollaborative Sensing, action
Control system w/ Small form factor Untethered
nodes
Sensing
Tightly coupled to physical world
Exploit spatially and temporally dense, in situ,
sensing and actuation
4

• The network is the sensor (Oakridge National
  Labs)
• Requires robust distributed systems of thousands
  of physically-embedded, often untethered,
  devices.
• Technical Challenges
• Energy constraints imposed by unattended,
  untethered, micro-scale systems.
• Level of dynamics ( Environmental obstacles,
  weather, terrain System large number of nodes,
  failures.)
• Scaling challenges due to very large numbers of
  distributed nodes.

5
New Design Themes

• Massively distributed, untethered, and unattended
  systems to cover spatially distributed phenomena
  in natural, obstructed, environments
• In-network procesing
• Thousands or millions of operations per second
  can be done using energy of sending a bit over 10
  or 100 meters (Pottie00)
• Exploit computation near data sources to reduce
  communication
• Self configuring systems that can be deployed ad
  hoc
• Un-modeled dynamics of physical world cause
  systems to operate in ad hoc fashion
• Measure and adapt to unpredictable environment
• Exploit spatial diversity and density
  (redundancy) of sensor/actuator nodes
• Adaptive localized algorithms to achieve desired
  global behavior
• Dynamic, messy (hard to model), environments
  preclude pre-configured behavior
• Cant afford to extract dynamic state information
  needed for centralized control or even
  Internet-style distributed control

6
From Embedded Sensing to Embedded Control

• Embedded in unattended control systems
• Different from traditional Internet, PDA,
  Mobility applications that interface primarily
  and directly with human users
• More than control of the sensor network itself
• Critical applications extend beyond sensing to
  control and actuation
• Transportation, Precision Agriculture, Medical
  monitoring and drug delivery, Battlefied
  applications
• Critical concerns extend beyond traditional
  networked systems
• Usability, Reliability, Safety
• Robust interacting systems under dynamic
  operating conditions
• Often mobile, uncontrolled environment,
• Not amenable to real-time human monitoring
• Need systems architecture to manage interactions
• Current system development one-off,
  incrementally tuned, stove-piped
• Serious repercussions for piecemeal uncoordinated
  design insufficient longevity, interoperability,
  safety, robustness, scalability...

7
ENS Research Focus

• Algorithms, architecture, reference
  implementations, to achieve distributed,
  in-network, autonomous event detection
  capabilities
• Strive toward an Architecture and associated
  principles
• Develop working systems and extract reusable
  building blocks
• Analogous to TCP/IP stack, soft state, fate
  sharing, and eventually, self-similarity,
  congestion control

8
Enabling Technologies

• Microsensors and actuators
• Low power wireless and media access
• Integrated, small form factor, devices
• Software
• Interfaces
• Smart dust
• Tiered architectures
• Time and location synchronization
• See presentations by Culler, Goldsmith, Mitra,
  Pister

9
Adaptive Self-Organization

• Goal achieve reliable, long-lived, operation in
  dynamic, resource-limited, harsh environment.
• Adapt
• Topology to achieve efficient communciation,
  sensing, processing, or dissemination coverage
  (may be application and data driven)
• Aggregation/processing points to achieve
  efficient compression
• How well can we do with localized algorithms that
  do not rely on centralized control or global
  knowledge ?
• Metrics system lifetime, quality of detection
• Models and metaphors from biology and physics
• See presentations by Albert, Doyle, Francescheti,
  Goldsmith, Krishnamachari, Kumar

10
Collaborative, multi-modal, processing

• In network processing must extend beyond signal
  processing, on a single node
• Collaborative signal processing
• Localization
• Compression
• Supression of redundant detections
• Sensor fusion
• See presentations by Effros, Potkonjak, Pottie,
  Ramachandran, Zhao

11
Sensor coordinated actuation

• Actuation needed for fully self-configuring and
  reconfiguring systems
• Allow for adaptation in physical space
• Services provided
• Energy delivery
• Calibration
• Localization
• Sample collection
• Node placement
• Static sensors can assist mobile elements with
  navigation, search, coordination
• See presentations by Hogg, Sukhatme

12
Primitives for Programming the Collective

• How do we task a 1000 node dynamic sensor
  network to conduct complex, long-lived queries
  and tasks ??
• Map isotherms and other contours, gradients,
  regions
• Nested behaviors to identify multi-parameter
  events
• Record images or mobilize robotic sample
  collection in response to event detection.
• See presentations by Culler, Sukhatme

13
Safety, Predictability, Usability

• As we embed sophisticated behaviors in
  previously-simple objects.
• Support effective mental models that allow for
  correct interactions, adaptations, diagnosis
• Design themes
• Achieve isolation
• Constrain interactions
• See presentations at some future workshop

14
Towards a Unified Framework for ENS

• General theory of massively distributed systems
  that interface with the physical world
• low power/untethered systems, scaling,
  heterogeneity, unattended operation, adaptation
  to varying environments
• Understanding and designing for the collective
• Local-global (global properties that resultlocal
  behaviors that support)
• Programming model for instantiating local
  behavior and adaptation
• Abstractions and interfaces that do not preclude
  efficiency
• Large-scale experiments to challenge assumptions
  behind heuristics

15
Pulling it all together
CENS Core Research
Academic Disciplines
Networking Communications Signal
Processing Databases Embedded Systems Controls Opt
imization Biology Geology Biochemistry Structura
l Engineering Education Environmental Engineering
Adaptive Self-Configuration
Collaborative Signal Processing and Active
Databases
Experimental Systems
Sensor Coordinated Actuation
Environmental Microsensors
16
Future Directions

• Tremendous opportunities for expanding research
  on horizon
• Driven from bottom up by sensor development
  (e.g., BioMEMS)
• Pulled from the top by emerging applications
  (e.g., medical, space exploration)
• Critical Concerns Security, Privacy, and Safety
• ENS systems in human environments will greatly
  alter human experience and intensify design
  requirements
• For further information see http//lecs.cs.ucla.ed
  u/estrin
• Or email to destrin_at_cs.ucla.edu
• Recommended reading NRC Report Embedded
  Everywherehttp//www4.nationalacademies.org/cpsma
  /cstb.nsf/web/pub_embedded
