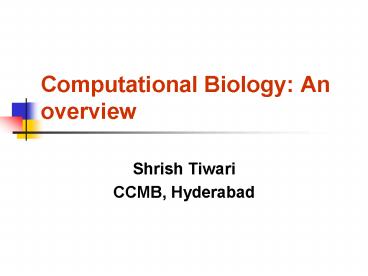

Computational Biology: An overview

1
Computational Biology An overview

• Shrish Tiwari
• CCMB, Hyderabad

2
Mathematics, Computers Biology

• The book of nature is written in the language of
  mathematics
• - Galileo
• What about biology?
• Changing scenario due to the development of
• Biological sequence data
• Chaos theory
• Game theory

3
Computer Applications in Biology

• Pattern recognition
• Pattern formation and characterisation
• Structural modeling of bio-molecules
• Modeling of macro-systems
• Image processing
• Data management and warehousing
• Statistical analysis
  Next

4
Pattern recognition

• Predicting protein-coding genes (GenScan)
• Motif search (MotifScan, promoter search)
• Finding repeats (TRF, Reputer)
• Predicting secondary structure (PHDsec,
  nnpredict)
• Classification of proteins (SCOP)
• Prediction of active/functional sites in proteins
  (PDBsitescan)
• Back

5
Patterns in nature
6
Simulated Patterns
Back
7
Structural modeling

• Protein folding homology modeling, threading, ab
  initio methods
• Protein interaction networks, biochemical
  pathways
• Cellular membrane dynamics
•
  Back

8
Macro-system modeling

• Modeling of dynamics of organs like brain and
  heart
• Modeling of environmental dynamics, interacting
  species
• Modeling of population growth and expansion
•
  Back

9
Image processing

• Gridding of spots in the image
• Removing background intensity (usually not
  uniform across the array)
• Computing the ratio of intensities in case of two
  colour probes
• Comparison of slides from different arrays
  Back

10
Computational Tools

• Dynamic programming algorithm
• Markov Model, Hidden Markov Model, Artificial
  Neural Network, Fourier Transform
• Molecular dynamics, Monte Carlo, Genetic
  Algorithm simulations
• Cellular Automata
• Game theory
• Statistical tools

11
Dynamic Programming

• An optimisation tool that works on problems which
  can be broken down to sub-problems
• Used widely in sequence alignment algorithms in
  bioinformatics
• Other applications speech, vocabulary, grammar
  recognition
• Back

12
Pattern recognition tools

• Markov model state of system at time t depends
  on its state at time t-1, transition
  probabilities between states are defined.
  Example gene finding
• Artificial neural networks attempt to simulate
  the learning process of real neural network
  system
• Fourier transform measure correlations between
  states at different time/space points
  Back

13
Optimisation tools

• Molecular dynamics apply Newtons equation of
  motion to follow the dynamics of a system
• Monte Carlo simulation randomly hop from one
  state to another until you find the optimal state
  Back
• Genetic algorithm attempt to simulate
  evolutionary mechanism of mutations and
  recombination to find the optimal solution

14
Cellular Automata

• Components 1) a lattice, 2) finite number of
  states at each node, 3) rule defining the
  evolution of a state in time
• Example game of life _ 1) on a 2-d lattice each
  cell represents an individual, 2) states 0 (dead)
  or 1 (live), 3) a cell dies if it has less than 2
  or more than 3 live neighbours, a dead cell
  becomes live if 3 of its neighbours are live

15
Simple life patterns
Still lives
Oscillator
Glider
Back
16
Game theory

• Game 1) involves 2 or more players, 2) one or
  more outcomes, 3) outcome depends on strategy
  adopted by each player
• Components 1) 2 or more players, 2) set of all
  possible actions, 3) information available to
  players before deciding on an action, 4) payoff
  consequences, 5) description of players
  preference over payoffs

17
Game theory an example

• Traffic as a game
• The commuters are players
• Traffic rules define the set of possible actions
  (including disobeying traffic rules)
• Payoff consequences fined if you violate traffic
  rules, you may suffer injury in accidents or die
• Information available
• Players preferences safe driving, dangerous
  driving etc.
•
  Back

18
Statistical tools

• Expectation value computation to assess the
  significance of alignment
• Clustering methods UPGMA, WPGMA, k-means etc.
• Assessing significance of genotype-phenotype
  association chi-square test, Fishers exact test
  etc.
•



19
Chaos Theory An Introduction

• One of the behaviours of a non-linear dynamical
  system
• Deterministic yet unpredictable!!
• Sensitive to initial conditions/small
  perturbations
• First discovered by Lorenz when he was simulating
  the weather dynamics using simplified
  hydro-dynamics model

20
The Lorenz attractor

• Simplified model of convections in the atmosphere
• dx / dt a (y - x)
• dy / dt x (b - z) - y
• dz / dt xy - c z
• a 10, b 28, c 8/3

21
(No Transcript)
22
The Bernoulli shift

• Map fx (2x mod 1), 0 x 1.
• t 0 1 2 3 4 5 6 7
  8
• x .2 .4 .8 .6 .2 .4 .8 .6
  .2
• .21 .42 .84 .68 .36 .72 .44 .88 .76
• Binary representation
• 0.2 0.001100110011
• 0.21 0.001101011100

23
Chaotic dynamics An example

• Simplest system exhibiting chaos, the logistic
  map xn1 rxn(1 xn ), 0 lt xn lt 1
• This simple equation exhibits a rich dynamical
  behaviour, ranging from stationary state to
  chaotic dynamics, as the parameter r varies from
  0-4
• This system models the population dynamics of a
  species whose generations do not overlap

24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Logistic map bifurcation diagram
29
First return map

• Plot of xn1 against xn for discrete systems, and
  xtT against xt for continuous dynamics, where T
  is some fixed interval
• Return map of a periodic orbit is a finite set of
  points
• Return map of a stochastic system a scatter of
  infinite number of points
• Return map of a chaotic system an infinite number
  of points in a structure

30
Return map Logistic map
31
Return map Lorenz attractor
32
Controlling chaos

• Different kinds of control are possible
• Suppression of chaos, I.e. bring the system out
  of chaotic behaviour into some regular dynamics
  e.g. adaptive control
• Remain in the chaotic dynamics, but force the
  system to remain in one of the unstable periodic
  orbits e.g. OGY (Ott, Grebogi Yorke) method
• Sustain or enhance chaos desirable for example
  in combustion where homogeneous mixing of gas and
  air improves the combustion
• Synchronisation confidential communication

33
Control of cardiac chaos

• A. Garfinkel et al. applied the OGY method of
  control to arrest arrhythmia in a rabbits heart
  (Science 257, 1230-35 (1992) )
• Arrhythmia was induced in the rabbit heart by
  injecting the animal with the drug ouabain
• The first return map In-1 vs. In, the interbeat
  interval, identified periodic orbits with saddle
  instability
• When the heart dynamics approached one of these
  points, small electrical pulses were used to
  force the system on the unstable periodic orbit

34
Prey-Predator Model

• Simplest description of prey-predator
  interactions is given by the Lotka-Volterra
  equations
• dH/dt rH aHP
• dP/dt bHP mP
• H density of prey P denstiy of predators
• r intrinsic prey growth rate a predation rate
• b reproduction rate of predator per prey eaten
• m predator mortality rate

35
Game theory

• Deals with situations involving
• 2 or more players
• Choice of action depends on some strategy
• One or more outcomes
• Outcome depends on strategy adopted by all
  players strategic interaction
• Elements of a game
• Players
• Set of all possible actions
• Information available to players
• The payoff consequences
• A description of players preferences over payoffs

36
Prisoners dilemma An example

• Players 2 prisoners A and B
• Two possible actions for each prisoner
• Prisoner A Confess, Dont confess
• Prisoner B Confess, Dont confess
• Prisoners choose simultaneously, without knowing
  what the other choses
• Payoff quantified by years in prison fewer years
  greater payoff
• Outcomes 1) both dont confess 1 year in prison
  for both, 2) 1 confesses other does not the one
  who confesses is free, other gets 15 years, 3)
  both confess both get 5 years

37
Prey-predator model with predators using hawk and
dove tactics

• P. Auger et al. recently studied a prey-predator
  model with the predators using a mix of hawk and
  dove strategies (Mathematical Sciences 177178,
  185-200 (2002) )
• A classical Lotka-Volterra model was used to
  describe the prey-predator interaction
• Predators use two behavioural tactics when they
  contest a prey with another predator hawk or dove

38
Prey-predator model with predators using hawk and
dove tactics

• Assumptions
• Gain depends on the prey density, which modifies
  predator behaviour
• The prey-predator interaction acts at a slow time
  scale
• The behavioural change of predator works on fast
  time scale
• Aim effects of individual predator behaviour on
  the dynamics of the prey-predator system
• Study carried out for different prey densities

39
Prey-predator model with predators using hawk and
dove tactics

• Conclusions
• There is a relationship between behaviour and
  prey density
• Aggressive (or hawk) behaviour prevails in high
  prey density
• A mix of hawk and dove strategy observed for low
  prey density
• A change of view aggressive behaviour is not
  advantageous when prey (resources) are rare and
  collaboration should be favoured

40
This is just the beginning

• Mathematics and computers are playing an
  increasingly important role in biology
• We have just begun to scratch the surface of
  biological discoveries
• The field is vast and largely untapped so we need
  young minds to be fascinated by these problems

41
References

• A. Garfinkel, M.L. Spano, W.L. Ditto and J.N.
  Weiss Controlling cardiac chaos Science 257,
  1230-1235 (1992).
• P. Auger, R.B. de la Parra, S. Morand and E.
  Sanchez A prey-predator model with predators
  using a hawk and dove tactics Math. Biosci.
  177178, 185-200 (2002)
