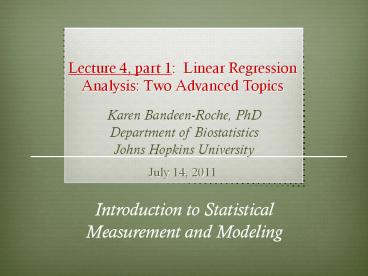

Lecture 4, part 1: Linear Regression Analysis: Two Advanced Topics

1
Lecture 4, part 1 Linear RegressionAnalysis
Two Advanced Topics
Karen Bandeen-Roche, PhD Department of
Biostatistics Johns Hopkins University

• July 14, 2011

Introduction to Statistical Measurement and
Modeling
2
Data examples

• Boxing and neurological injury
• Scientific question Does amateur boxing lead to
  decline in neurological performance?
• Some related statistical questions
• Is there a dose-response increase in the rate of
  cognitive decline with increased boxing exposure?
• Is boxing-associated decline independent of
  initial cognition and age?
• Is there a threshold of boxing that initiates
  harm?

3
Boxing data
4
Outline

• Topic 1 Confounding
• Handling this is crucial if we are to draw
  correct conclusions about risk factors
• Topic 2 Signal / noise decomposition
• Signal Regression model predictions
• Noise Residual variation
• Another way of approaching inference, precision
  of prediction

5
Topic 1 Confounding

• Confound means to confuse

• When the comparison is between groups that are
  otherwise not similar in ways that affect the
  outcome

• Lurking variables,.

6
Confounding Example Drowning and Eating Ice
Cream







Drowning rate



















Ice Cream eaten
7
Confounding
Epidemiology definition A characteristic C is
a confounder if it is associated (related) with
both the outcome (Y drowning) and the risk
factor (X ice cream) and is not causally in
between
8
Confounding
Statistical definition A characteristic C is
a confounder if the strength of relationship
between the outcome (Y drowning) and the risk
factor (X ice cream) differs with, versus
without, adjustment for C
Outdoor Temperature
9
Confounding Example Drowning and Eating Ice
Cream







Drowning rate









Warm temperature










Cool temperature
Ice Cream eaten
10
Effect modification
A characteristic E is an effect modifier if the
strength of relationship between the outcome (Y
drowning) and the risk factor (X ice cream)
differs within levels of E
Outdoor temperature
11
Effect Modification Drowning and Eating Ice
Cream










Drowning rate






Warm temperature










Cool temperature
Ice Cream eaten
12
Topic 2 Signal/Noise Decomposition

• Lovely due to geometry of least squares
• Facilitates testing involving multiple parameters
  at once
• Provides insight into R-squared

13
Signal/Noise Decomposition

• First step decomposition of variance
• Regression part Variance of s
• Error or Residual part Variance of e
• Together These determine total variance of Ys
• Sums of Squares (SS) rather than variance per
  se
• Regression SS (SSR)
• Error SS (SSE)
• Total SS (SST)

14
Signal/Noise Decomposition

• Properties
• SST SSR SSE
• SSR/SST proportion of variance explained by
  regression R-squared
• Follows from geometry
• SSR and SSE are independent (assuming A1-A5) and
  have easily characterized probability
  distributions
• Provides convenient testing methods
• Follows from geometry plus assumptions

15
Signal/Noise Decomposition

• SSR and SSE are independent
• Define M span(X) and take Y as centered at
• It is possible to orthogonally rotate the
  coordinate axes so that first p axes e M
  remaining n-p-1 axes e M?
• Gram-Schmidt orthogonalization
• Doing this transforms Y into TY Z, for some
  orthonormal matrix T with columns e1,...,en-1

• Distribution of Z N(TEYX,s2I)

16
Signal/Noise Decomposition

• SSR and SSE are independent - continued
• TYZ Y TZ
• SSE squared length of
• SSR squared length of
• Claim now follows SSR SSE are independent
  because (Z1,,Zp) and (Zp1,,Zn-1) are
  independent

17
Signal/Noise Decomposition

• Under A1-A5 SSE, SSR and their scaled ratio have
  convenient distributions
• Under A1-A2 EYX e M, EZjX 0, all jgtp
• Recall Z1,...,Zn-1 are mutually independent
  normal with variances2
• Thus SSE
• s2 ?2n-p-1 under A1-A5
• (a sum of k independent squared N(0,1) is
  )

18
Signal/Noise Decomposition

• Under A1-A5 SSE, SSR and their scaled ratio have
  convenient distributions
• For j p EZjX ? 0 in general
• Exception H0 ß1ßp 0
• Then SSR s2 ?2p under A1-A5
• and
•
  Fp,n-p-1
• with numerator and denominator independent.

19
Signal/Noise Decomposition

• An organizational tool The analysis of variance
  (ANOVA) table

SOURCE Sum of Squares (SS) Degrees of freedom (df) Mean square (SS/df)
Regression SSR p SSR/p
Error SSE n-p-1 SSE/(n-p-1)
Total SST SSR SSE n-1
F MSR/MSE
20
Global hypothesis tests

• These involve sets of parameters
• Hypotheses of the form
• H0 ßj 0 for all j in a defined subset of
  j1,...,p vs. H1 ßj ? 0 for at least one of
  the j
• Example 1 H0 ßLATITUDE 0 and ßLONGITUDE 0
• Example 2 H0 all polynomial or spline
  coefficients involving a given variable
  0.
• Example 3 H0 all coefficients involving a
  variable 0.

21
Global hypothesis tests

• Testing method Sequential decomposition of sums
  of squares
• Hypothesis to be tested is H0 ßj1...ßjk 0 in
  full model
• Fit model excluding xj1,...,xjpj Save SSE
  SSEs
• Fit full (or larger) model adding xj1,...,xjpj
  to smaller model. Save SSESSEL,
  oftenoverall SSE
• Test statistic S (SSES-SSEL)/pj/SSEL(n-p-1)
• Distribution under null F(pj,n-p-1)
• Define rejection region based on this
  distribution
• Compute S
• Reject or not as S is in rejection region or not

22
Signal/Noise Decomposition

• An augmented version for global testing

SOURCE Sum of Squares (SS) Degrees of freedom (df) Mean square (SS/df)
Regression SSR p SSR/p
X1 SST-SSEs p1
X2X1 SSES-SSEL p2 (SSES-SSEL )/p2
Error SSEL n-p-1 SSEL/(n-p-1)
Total SST SSR SSE n-1
F MSR(21)/MSE
23
R-squared Another view

• From last lecture ECDF Corr(Y, ) squared
• More conventional R2 SSR/SST
• Geometry justifies why they are the same
• Cov(Y, ) Cov(Y- , ) Cov(e,
  ) Var( )
• Covariance inner product first
  term 0
• A measure of precision with which regression
  model describes individual responses

24
Outline A few more topics

• Colinearity
• Overfitting
• Influence
• Mediation
• Multiple comparisons

25
Main points

• Confounding occurs when an apparent association
  between a predictor and outcome reflects the
  association of each with a third variable
• A primary goal of regression is to adjust for
  confounding
• Least squares decomposition of Y into fit and
  residual provides an appealing statistical
  testing framework
• An association of an outcome with predictors is
  evidenced if SS due to regression is large
  relative to SSE
• Geometry orthogonal decomposition provides
  convenient sampling distribution, view of R2
• ANOVA
