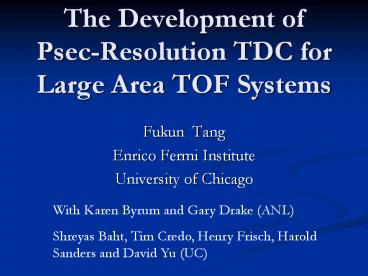

The Development of Psec-Resolution TDC for Large
Area TOF Systems

• Fukun Tang
• Enrico Fermi Institute
• University of Chicago

With Karen Byrum and Gary Drake (ANL) Shreyas
Baht, Tim Credo, Henry Frisch, Harold Sanders and
David Yu (UC)
2
Major advances for TOF measurements
From H. Frisch
Output at anode from simulation of 10 particles
going through fused quartz window- T. Credo, R.
Schroll
Jitter on leading edge 0.86 psec

• Ability to simulate electronics and systems
• to predict design performance

3
Requirement Psec-Resolution TDC
MCP_PMT Output Signal
Start
500pS
Reference Clock
Stop
Tw
1 ps Resolution Time-to-Digital Converter!!!
4
Diagram of MCP-PMT ElectronicsFrom Harold
5
Approaches Possibilities
(1) TAC-ADC
1/4
Zero-walk Disc.
TAC
Driver
11-bit ADC
Receiver
PMT
2 Ghz PLL
REF_CLK
4x1Ghz PLL
psFront-end (Timing Module Option 1)
6
TAC-ADC Simulation Result

• Electronics with typical gate jitters ltlt 1 psec

7
Approaches Possibilities
(2) Time Stretcher
1/4
Zero-walk Disc.
Stretcher
Driver
11-bit Counter
Receiver
PMT
CK5Ghz
2 Ghz PLL
REF_CLK
psFront-end (Timing Module Option 2)
8
Time Stretcher Simulation Result
x200 Stretched Time Interval (Output Signal )
Stretched Time 274ns (pedestal74ns)
1ns Time Interval (Input Signal)
0 50ns 100ns 150ns 200ns
250ns 300ns
9
VCO Submission of Oct. 2006

• Ultimate Goal
• To build TDC with 1 pSec Resolution for Large
  Scale of Time-of-Flight Detector.
• Primary Goal
• To build 2-Ghz VCO, key module of PLL that
  generates the TDC reference signal
• Cycle-to-Cycle Time-jitter lt 1 ps
• To evaluate IHP SG25H1/M4M5 Technology for our
  applications
• To gain experiences on using Cadence tools
  (Virtuoso Analog Environment)
• Circuit Design (VSE)
• Simulation (Spectre)
• Chip Layout (VLE, XLE, VCAR)
• DRC and LVS Check (Diva, Assura, Calibre)
• Parasitic Extraction (Diva)
• Post Layout Simulation (Spectre)
• GDSII Stream out
• Validation
• Tape Out

10
Diagram of Phase-Locked Loop
CP
Fref
I1
Uc
PD
VCO
F0
LF
I2
1N
PD Phase Detector CP Charge Pump LF Loop
Filter VCO Voltage Controlled Oscillator
11
IHP (SG25H1) 0.25mm SiGe BiCMOS Technology

• 0.25mm BiCMOS technology
• 200Ghz NPN HBT (hetero-junction bipolar
  transistor)
• MIM Capacitors (layer2-layer3) ( 1f/1u2 )
• Inductors (layer3-layer4)
• High dielectric stack for RF passive component
• 5 metal layers (Al)
• Digital Library Developing

12
SG25 Process Specification
13
2-GHz BiCMOS VCO Schematic
Negative Resistance and Current-Limited Voltage
Control Oscillator with Accumulating PMOS Varicap
and 50W Line Drivers
14
V-F Plot (3 model cases _at_ 27C-55C)
Frequency
Temperature 27C-55C Supply VDD2.5V
VControl varied 0.18V
VControl
15
Phase Noise ( 3 model cases _at_ 27C)
_at_100KHz offset
Worst
Best -89.94 dBc/Hz
Typical -89.58 dBc/Hz
Worst -89.90 dBc/Hz
Typical
Best
Temperature 27C Supply VDD2.5V
16
Calculation of Cycle-to-Cycle Jitter
17
2-GHz VCO Performance Summary (1)
T27C f0 2 GHz
phase noise
dBc/Hz_at_100K offset
Vcontrol (V) Itail (mA) Vpp (mV) Icc (mA) Pw (mW) Phase Noise
Best 1.54 10.90 635 33.92 85.0 -89.75
Typical 1.60 8.83 573 27.63 67.5 -89.54
Worst 1.68 7.48 524 22.31 56.0 -89.18
18
2-GHz VCO Performance Summary (2)
T55C f0 2 GHz
phase noise
dBc/Hz_at_100K offset
Vcontrol (V) Itail (mA) Vpp (mV) Icc (mA) Pw (mW) Phase Noise
Best 1.56 10.50 628 34.48 86.3 -89.15
Typical 1.64 8.63 571 28.05 70.0 -88.72
Worst 1.70 7.38 521 22.57 56.5 -88.56
19
Virtuoso XL Layout View
20
Virtuoso Chip Assembly Router View
21
Diagram of Post Layout Simulation
Schematic
Analog_extracted
22
Transit Analysis Comparison of Schematic and
Post Layout Simulations
Outputs_at_50W loads
Schematic
Post Layout
23
V-F Plot Comparison of Schematic and Post Layout
Simulations
Frequency
Post Layout
Schematic
Vcontrol
24
Phase Noise Post Layout SimulationsVDD2.5V
Temp.27C, 55C
Phase Noise _at_100KHZ offset
27C -89.40 dBc/Hz (Sch -89.75)
55C -88.90 dBc/Hz (Sch -89.15)
25
Conclusion

• (1) VCO time-jitter met our requirement.
• (2) Post layout simulation matched schematic
  simulation very well.
• (3) Some problems we have encountered with pcell
  library, layout, DRC, LVS and auto-routing
  functionalities.
• (4) Ready for October Submission.
