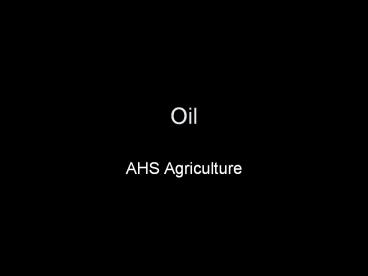

Oil

1
Oil

• AHS Agriculture

2
Warm-up

• What do you know about oil?

3
Unit Project

• Create an energy efficient system
• Make a model
• Two page paper on why it would work
• Due day of test, Oct 12

4
Essential Question

• How is oil extracted and processed?

5
Black Gold

• Past- petroleum pumped from ground, stored, and
  shipped in barrels
• Traditional barrels contained 42 gallons

6
Black Gold

• Still measured in barrels
• Crude oil prices vary depending on wars,
  hurricanes, natural disasters

7
Black Gold

• Takes 1 million years to form
• Plants animals die, settle to bottom of ocean
  (swamp, pond), pressure exerted, oil formed

8
Black Gold

• Oil squeezed into rocks or reservoir rocks
• Petroleum engineers- find oil deposits

9
How found?

• 1. Gravimeter- principle that gravitational pull
  of oil-filled rocks differs from rocks containing
  no oil

10
How found?

• 2. Magnometer- measures differences in the
  magnetic pull of earth to find oil bearing rocks.
  Enables Geophysicist to locate rock layers that
  might contain oil

11
How found?

• 3. Seismograph- sound waves to identify various
  layers formations under the Earths surface
• Offshore drilling rigs
• Video

12
Extraction Process

• Oil Refinery ? crude oil distilled into various
  products
• Fuels, lubricants, and petrochemicals
• Examples?

13
Extraction Process

• Fuels- aviation gasoline, diesel fuel, kerosene,
  etc
• Lubricants- greases, road oils, medicine oil
• Petrochemicals- alcohol, ink, paint, plastic,
  food additives, etc

14
Extraction Process

• http//www.youtube.com/watch?vjk0WrtA8_T8
• Answer Questions Provided

15
Natural Oil and Gas Seeps

• Exploring oil seeps lab

16
Fossil Fuels and Their Impact
17
Essential Question

• How does burning fossil fuels affect us?

18
Warm-up

• Why is our country so developed while other
  countries stay undeveloped?

19
Coal

• Black or brown rock from plants between 1-400
  million years ago
• Swamp areas
• 25 of global energy
• 40 of worlds electricity

20
Coal

• US 68 production of electricity
• 13 steel production
• 9 general industries
• 1 home heating

21
Coal

• Top coal-producing states West Virginia,
  Pennsylvania, Kentucky, Illinois, Ohio, and
  Virgina.
• What is similar for all above states?

22
Coal

• Releases sulfur dioxide when burned
• Odor, irritates eyes and respiratory tract.
• Combine with oxygen- sulfur trioxide- coughing,
  choking, acid rain

23
Oil Refining

• Carbon Monoxide- incomplete combustion of any
  fuel
• headache, nausea, death, unconsciousness, smog

24
Natural Gas

• Most perfect and in-demand fuels of US
• Heats our homes, cook, production of plastic,
  detergents, and drugs

25
Natural Gas

• Gas located about oil deposit
• Problem with supplying it when needed in winter
  months

26
Particulate Matter

• Traps in air passages, reduce air capacity,
  severe breathing and respiratory problems.
• Asthma, Emphysema, Fog
• Smoke and Soot

27
Smog

• Hybrid of smoke and fog
• Obstructs vision, smells bad
• Modern-day- produced by complex
  sunlight-stimulated chemical reactions among auto
  exhaust

28
Smog

• Eye irritation, pulmonary diseases, lung cancer,
  paint and fabric deteriorate when exposed

29
Ground-Level Ozone

• Chlorofluorocarbons (refrigerants)
• Formed by complex reactions of primary pollutants
  with oxygen
• Beneficial after storm
• High concentration- irritant

30
Activity

• Testing Car Exhaust!

31
Alternative Energy Sources
32
Essential Question

• How can we use alternative energy in everyday
  life?

33
Warm-up

• Why is burning fossil fuels bad?

34
Solar Energy

• More abundant, less exhaustible, and more
  pollution-free than any other energy source

35
Solar Energy

• Sun as energy source
• Energy 100,000 times greater than electrical
  capacity of world

36
2 types Active Passive

• Active- capture, store and distribute energy from
  sun. collector, storage mechanism, distribution
  device needed
• Energy most needed at night

37
2 types Active Passive

• Passive- provide avenues for sun to enter but
  rely on natural airflow to provide distribution.
• Only has collection device, south-facing solar
  panel
• EX Greenhouse, homes w/other heat source

38

• Can experiment

39
Geothermal Energy

• Involved trapping underground heat in
  volcanically active areas.
• Steam piped through ground to turbines that turn
  electric generators

40
Geothermal Energy

• 2 disadvantages
• 1. energy not uniformly located around country
  (cheap clean when available)
• 2. minerals in steam very hard on machinery

41
Hydropower

• Water power
• Dams constructed, water released in openings to
  drive turbines connected to electrical generators

42
Hydropower

• Opposed by environmental groups when dam
  constructed, waters are slowed backed up,
  wildnerness areas are destroyed

43
Nuclear, Tidal, Wind, and Wood Power

• Alternative forms of energy

44
Warm-up

• What do you know about nuclear, tidal, wind, and
  wood power?

45
Lesson Essential Question

• Why are people concerned with nuclear, tidal,
  wind, and wood power?

46
Nuclear Power

• Using energy from a fission process for an energy
  source
• Fission- nuclear reaction where the nucleus
  splits into smaller parts when interact with
  another compound

47
Nuclear Power

• Fission gives off heat
• Once started, continues on own
• Uranium most used

48
Nuclear Power

• Fissioning 1 lb of uranium yields explosive force
  of 10,000 tons of TNT
• Release slowly, produces 12 million kilowatt
  hours of power

49
Nuclear Power

• Cadmium used to control or stop reaction by
  absorbing neutrons
• As reaction progresses- heat produced

50
Nuclear Power

• Water in tubes turns to steam to turn electrical
  generators
• Aux water system used to maintain core at 1,000F

51
Nuclear Power Concerns

• Fear of explosion or uncontrolled heat buildup
  causing a meltdown
• Heating of water

52
Nuclear Power Concerns

• Disposal of radioactive waste
• Uranium lasts 2 years
• Processing removes unused
• Wastes packaged stainless steel and buried
• Lasts 100 years

53
Nuclear Power Concerns

• Better technique??
• Containers in above ground concrete bunkers
• Care to make sure not broken open

54
Tidal Power

• Tides like clockwork Huge forces
• Small basins constructed, collect water during
  high tide
• Release with tide to drive electric generators

55
Tidal Power

• 2.9 million megawatts of power
• Inexpensive and always available

56
Wind Power

• New tower with propeller blades to turn
  generators that produce electricity
• Limits- wind not always blow, speed varies,
  storage in DC battery

57
Wood for Burning

• Advantages- widely available, renewable natural
  resource
• Disadvantages- less convenient to burn, bulkier,
  less efficient

58
Experiment

• Tidal Power

59
Energy from Biomass

• Alternative Energy Sources

60
Warm-up

• What is in your gasoline?

61
Essential Question

• How are we using our grains and wastes
  efficiently?

62
Energy from Biomass

• Biomass- total dry weight of all of the living
  organisms in a given area at a given time

63
Energy from Biomass

• 2 kinds
• 1. Agricultural, municipal, and Industrial wastes
  used to produce energy
• 2. plants that are grown specifically to be used
  for energy production

64
Energy from Biomass

• 2004- US- 2.76 billion gallons of Ethanol from
  corn
• 2005- Brazil- 4.2 billion gallons of Ethanol from
  sugar and molasses
• 33-2 chart Cost of ethanol production varies by
  crop

65
Ethanol from Grain

• Ethanol from grain been around for a long time
• Burns cleanly and efficiently
• Alcohol less explosive and more stable
• Less pollution

66
Ethanol from Grain

• Grow yeasts in a grain solution, yeasts take in
  sugar, protein, vitamins, minerals, and give off
  carbon-dioxide and ethanol (alcohol)
• Produced from corn to by products of cheese

67
Ethanol from Grain

• Supplies never run dry
• No fancy refineries needed

68
Ethanol from Grain By-Products

• Carbon-dioxide- carbonation of beverages, drying
  grain, fertilizer production, fire extinguishers,
  refrigeration, dry-ice
• Residue from alcohol feed for livestock

69
Methane from Biowaste

• Using anaerobic bacteria to decompose waste.
  Methane produced as by-product
• Methane odorless gas w/heating rate of 600-700
  BTUs per cubic foot

70
Methane from Biowaste

• Decomposing wastes produce methane and hydrogen
  sulfide (sewage smell)
• Scrubbers can remove the hydrogen sulfide

71
Methane from Biowaste

• Can be produced artificially in methane digester
• Airtight container holding wastes to be
  decomposed
• 50 of gas extracted first 2 weeks, up to 6 weeks

72
Methane from Biowaste

• Sludge used as fertilizer after
• Storage-big and bulky
• Farmers-use heat to produce alcohol from grain,
  get more out of livestock waste
• Lessen amount of fossil fuels used (434 diagram)

73
Energy Crops

• Raw sugar from sugar cane sugar beets easy to
  convert to energy through fermentation
• Chemical processing to extract oils from plants
  then converted into refined fuel
• Vegetable oil cars

74
Energy Crops

• Trees potential energy crop
• Soybean sunflower produce oil can be converted
  to fuel
• Algae that grow in lakes and ponds produce oil
  can be converted to fuel

75
Cellulosic Ethanol

• Plants made of lignocellulose
• Convert sunlight to sugar
• Lignocellulose broken down chemically to release
  sugar
• Then converted to ethanol
• Whole trees, switchgrass

76
Activity

• Cellulosic Ethanol Experiment

77
Soy Biodiesel

• Alternative forms of Energy

78
Warm-up

• How is ethanol produced?

79
Lesson Essential Question

• What is soy biodiesel and how is it produced?

80
Soy Biodiesel

• Clean burning, non-toxic, alternative fuel made
  from vegetable oils
• 1 bushel soybeans 1.5 gallons of biodiesel
• Can be used in pure form B100.

81
Soy Biodiesel

• Can be blended with petroleum diesel to create a
  blend 2080 biodiesel to petrodiesel. B20

82
Advantages

• 1. Burns cleaner
• 2. Exceptional lubricating qualities
• 3. New enginescomsumption similar, old engines
  better consumption

83
Advantages

• 4. biodegradable and non-toxic
• 5. promising as marine fuel
• 6. domestic, renewable resource
• 7. positive energy balance

84
Disadvantages

• 1. currently more expensive
• 2. additional land use needed
• 3. gives out nitrogen oxide
• 4. transportation and storage costs
• 5. less suitable for lower temps

85
Production

• 3 routes
• 1. base catalyzed transesterification
• 2. direct acid catalyzed transesterification of
  the oil
• 3. Conversion of oil to fatty acid then to
  biodiesel

86
Production

• Most biodiesel produced with 1st option
• Low temp and pressure
• Yields high conversion (98) (minimal side
  reactions and reaction time)

87
Production

• Most biodiesel produced with 1st option
• Direct conversion- no intermediate compounds
• No exotic materials needed

88
Production

• Chemical reaction and process on reading
• Create a diagram/drawing that will explain
  process and reaction better for you

89
Activity

• Using the information in the soy products guide,
  choose a product create an advertisement
  selling this product to an audience
• 30 minutes

90
Activity

• Investigate the impact of land use related to
  alternative conventional energy sources
• Is there a low or high impact? Why?

91
Review

• Review for exam
