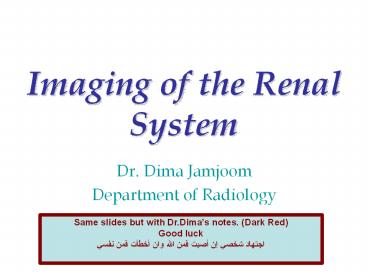

Imaging of the Renal System

• Dr. Dima Jamjoom
• Department of Radiology

Same slides but with Dr.Dimas notes. (Dark
Red) Good luck ??????? ???? ?? ???? ??? ???? ???
????? ??? ???? ?
2
OUTLINE

• Introduction
• Imaging modalities
• Anatomy
• Cases

3
INTRODUCTION

• What is radiology?
• It is a medical specialty that employs the use
  of imaging to both diagnose and treat disease
  within the human body.
• What is the renal system?
• Kidneys, ureters, urinary bladder and urethra.

4
IMAGING MODALITIES

• Conventional radiography
• Intravenous urogram (IVU)
• US
• CT
• MRI
• Nuclear medicine

5
Terminology
This slide is taken from the boys slide, I
think its the only difference between the
Female/Male slides.

• X ray Radio-opaque (white) vs radio-lucent
  (black)
• US Hyper-echoic (white) / hypo-echoic(black)
• CT Hyper-dense (white) / hypo-dense(black)
• MRI Hyper-signal (white) / hypo-signal
• Nuclear med. Highuptake(black) / lowuptake
  (white)

6
Conventional radiography Plain X-Ray

• First imaging modality. meaning that a patient
  complains of symptoms renal disease, we start by
  X-ray
• Cheap.
• Useful for radio-opaque stones. But its limited,
  usually used only for this purpose. radio-opaque
  stones will appear white.

Note that there are stones which are not
radio-opaque and are diagnosed by US and CT.
7
Conventional radiography

• Image features
• Projectional image.
• Image contrast determined by tissue density.
• Good evaluation radio-opaque stones.

8
IVU same as plain x-ray but we give the patient
contrast

• Conventional x-ray plus intravenous contrast.
• Cheap.
• Recently replaced by CT and MRI.
• Useful for radio-opaque stones.

Contrast ???? ?????? ??? ?????? it will
appear white in the x-Ray.
9
IVU

• Image features
• Projectional image.
• Image contrast determined by tissue density and
  IV contrast.
• Good evaluation of collecting system and
  radio-opaque stones. the doctor said it is used
  also for hydronephrosis which is dilatation of
  the collecting system.

10
US

• Use high frequency sound wave.
• Contrast between tissue is determined by sound
  reflection.

11
US

• Image features
• Operator dependant. Meaning that if the
  practitioner is good, then images will be good if
  not then the images will be bad.
• Projectional image.
• Good resolution.
• Used for stone, hydronephrosis, focal lesion.

Fluid black. Fat White.
12
CT

• Same basic principle of radiography.
• More precise.
• Costly.
• /- contrast.( we can do it with or without
  contrast)
• Useful for trauma, stone, tumor, infection.

If patient suspected with stones, then the gold
standard is CT without contrast.
13
CT
Non-contrast CT

• Image features
• Cross sectional images.
• Image contrast determined by tissue density /-
  contrast.
• Better evaluation of soft tissue.

14
MRI

• Better evaluation of soft tissue.
• Expensive. time consumer, takes 30-45 mins
• Useful for soft tissue pathology tumor,
  infection.

If we are suspecting renal tumors, then MRI is
the best.
15
MRI

• Image features
• Cross sectional images.
• Image contrast determine by tissue properties.
• Excellent for soft tissue evaluation.

16
Nuclear medicine

• Utilizes a gamma camera and radioactive
  isotopes.
• Functional test. Meaning that the Anatomy wont
  appear clear as the CT and MRI but gives us an
  idea about the function of the kidneys.
• Less expensive.
• Useful for obstruction and split function.

???? ???? ?????? ??? ??????
17
Nuclear medicine

• Image features
• Projectional image.
• Image contrast by tissue uptake and metabolism.

18
ANATOMY
19
Plain x-ray Kidneys size is about 3 and half
vertebral bodies including the vertebral discs.
20
IVU
21
US
22
CT
The doctor talked in details about the fasciae
and everything in this picture.
23

• CT with contrast ,
• Aorta we can see it in the right because we
  gave contrast.

24
(No Transcript)
25
MRI
26
(No Transcript)
27
CASES
28

• What are the imaging modalities?
• What are the findings?
• Diagnosis?

29
Case (1)

• Young male patient presenting with left flank
  pain and hematuria, no fever and normal WBC count.

30
This is IVU we can see dilatation of the
collecting system ( hydronephrosis).. Stones
causing hydronephrosis. Renal pelvis is a bet
dilated
This is Plain X-ray without contrast, we can see
radio-opaque stones in the left kidney.
31
Note the dilatation on this side ( Hydronephrosis
)
Same patient but with CT and US, stones will be
white by ultrasound.
32
Case (2)

• Middle aged woman presenting with flank pain,
  fever and high WBC.

We expect infection.
33
CT
Kidneys are white except some areas which is
darker, this is the focal infection (
pyleonephritis )
34
Case (3)

• Elderly male patient with recurrent urinary tract
  infections.

35
Renal pelvis is dilated. its dark because it
contains fluid
us
36
Nuclear, collecting system is dilated. (normally
the isotope will be less in the kidneys with
time) but in this case still there is isotope in
the kidneys.
37
Case (4)

• Young female presenting with decreased renal
  function (high urea and creatinine level).

Renal failure.
38

• US
• Kidneys are not seen, its replaced by cysts
  which are dark.

This is congenital ( autosomal dominant
polycystic kidney disease.)
MRI of same patient. No kidneys, replaced by
cysts.
39
gross
40
Case (5)

• Elderly male patient with painless hematuria and
  weight loss.

tumor
41
MRI, we see a mass
42
Case (6)

• Young male patient involved in a motor vehicle
  accident with blunt trauma to the abdomen.

Trauma, cases of trauma CT
43
CT
44
Renal trauma grading

1. bleeding beneath the renal capsule, contusion.
   (?????)
2. Ulceration less than 2 cm not involving the
   collecting system ( ???? ???? ??? ?? ????? )
3. more than 2 cm but also not involving the
   collecting system
4. Extending to collecting system or if there is(
   thrombus ) , injury to blood supply.
5. Shattered kidney, multiple injuries , or ???
   ????? ?????? ????? ?????

45
