Tools for Composing and Deploying Grid Middleware Web Services

1

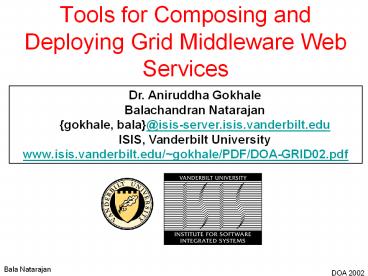

Tools for Composing and Deploying Grid Middleware
Web Services
Dr. Aniruddha Gokhale Balachandran
Natarajan gokhale, bala_at_isis-server.isis.vanderb
ilt.edu ISIS, Vanderbilt University www.isis.vande
rbilt.edu/gokhale/PDF/DOA-GRID02.pdf
2
Motivation

• Grid Applications require
• Multiple end-to-end QoS properties
• Secure, controlled access to resources from
  multiple service providers gt need individual
  SLAs
• E.g., collaborative scientific applications,
  virtual surgery

3
Grid Application Development Challenges

• Tight coupling with COTS grid infrastructure
  middleware (GIMs)
• Proliferation of GIMs, such as Globus, ICENI,
  Legion
• Accidental complexities assembling and deploying
  grid applications

• Need to satisfy simultaneous multiple QoS
• Lack of resource reservation patterns
• No single sign-on secure access capability to
  resources
• Provisioning restrictions of COTS GIMs
• Difficulties in resource and QoS provisioning

Solution Use Model Integrated Computing tool
support to build Grid Applications and use Web
Services architecture to deploy them
4
Model Integrated Computing (MIC)

• Modeling languages and environments themselves
  can be modeled as meta-models
• e.g., Generic Modeling Environment (GME)
  (www.isis.vanderbilt.edu)
• Analyze different but interdependent
  characteristics of GRID system behavior
• Synthesize platform-specific code customized
  for GRID applications

• Applies domain-specific modeling languages to
  engineer computing systems
• Provides rich modeling environment including
  model analysis and model-based program synthesis
• Modeling of integrated end-to-end view of
  applications with interdependencies
• Captures the essence of a class of applications

www.isis.vanderbilt.edu
5
Model Integrated Computing (MIC)

• Advantages
• Free application developers from dependencies on
  any particular API
• Analyze models and provide correctness proofs
• Highly dependable and robust synthesized code
• Rapid prototyping of new concepts via modeling
  and interpretation
• Reducing time-to-market, saving costs, and
  preserving investments
• Resolve interoperability issues by synthesizing
  standard or custom code

www.isis.vanderbilt.edu
6
Model Driven Architecture (MDA)

• OMG standardization of MIC paradigm
• Defines platform- independent models (PIMs) and
  platform-specific Models (PSMs)
• Uses Unified Modeling Language (UML) for modeling
• Real-time profile
• Dynamic scheduling profile
• Meta Object Facility (MoF) serves as meta-model
  repository
• XML Metadata Interchange (XMI) for meta-model
  exchange

www.omg.org/mda
7
Component Synthesis with MIC (CoSMIC)

• Synthesizes code configuration metadata for the
  CIAO (CORBA Component middleware)
• Reusing components via compositions vs.
  generating new component implementations
• Composition of applications components CIAO
  plug-ins
• CIAO helps instantiating application processes
• MDA tool suite
• UML modeling using GME
• Analysis synthesis tools
• Enhancement to GME tool
• Uses MDA standards-based approach

8
Grid TAO (GriT) Architecture

• Based on principles from DP-CORBA, RT-CORBA, CCM
• Seamless integration with GIMs via extensible
  transport capabilities
• Uses web-based interfaces for service
  provisioning
• Implemented using TAO and CIAO technology

9
Grid Service Provider (GSP)

• Web service access to underlying middleware
• Single sign-on capabilities
• GSP maintains individual SLAs on behalf of user
• Collaborations via session initiation protocol
  (SIP)

10
Meta-Resource Broker (MRB)

• Broker for resources
• Maintains abstractions of concrete resources
• Uses DP-CORBA parallel and part objects

11
MRB Part Object Core

• Uses TAOs pluggable protocol framework to talk
  Grid protocols
• Used for resource discovery and reservation

12
Integrating CoSMIC with GriT

• Proliferation of middleware
• UML modeling tools used to model DRE application
  behavior
• Model-first/generate-next strategy for finer
  grained control in components
• Simultaneous support for multiple QoS dimensions
• Model overall application QoS partitioning
• Compose application servers
• Model synthesize components
• Validate deploy
• Accidental Complexities
• Synthesize container QoS configurations metadata

13
Model Driven Grid Middleware Deployment

• Context Grid applications are built using
  conventional infrastructure middleware

• Problem Hard to develop next generation grid
  applications because
• tight coupling with grid infrastructure
• accidental complexities
• satisfying multiple QoS requirements

14
Model Driven Grid Middleware Deployment
Solution MDA-based tool, CosMIC, to compose and
deploy patterns from building blocks of GriT
middleware.
15
Service Provisioning via CoSMIC GriT
16
Model Driven Grid Web Service Deployment
Context Wireless and wired client need to
participate in collaborative grid applications
Problem Programming at the grid infrastructure
is too low-level. Standard based protocols and
interfaces must be used.

• Solution Services offered by GSP will be hosted
  as a web service.
• Similar to OGSA
• CosMIC can generate WSDL and help deploy these
  services

17
MIC-DRE Middleware Integration

• Configuring and deploying application services
  end-to-end
• partitioning and distributing
• provisioning resources for QoS
• Composing components into application servers
• assemble semantically compatible QoS-enabled
  components from reuse repositories
• determining interconnections between components
  in metadata
• packaging components and metadata
• Configuring application component containers
• configuring right QoS policies for component
  containers
• maintain inter-component semantic compatibility
  w.r.t container policies

18
MIC-Middleware Integration

• Synthesizing application component
  implementations
• synthesis of DRE components tailored to
  application e.g., for bounded worst case
  execution time under overload conditions
• bridge the gap between specifications and
  implementation via aspect weavers and generators
• Synthesizing dynamic QoS provisioning and
  adaptation logic
• synthesize adaptation logic using QoSket QDL
• Synthesizing middleware-specific configurations
• configuring threading models, buffering and flow
  control, levels of fault tolerance, transport
  protocols, demultiplexing strategies, security
• Synthesizing middleware implementations
• a more aggressive approach to synthesizing custom
  middleware

19
Challenge 1 Configuration Metadata

• TAO/CIAO Configuration Modeling Language
• Interpreters synthesize XML or svc.conf files
• Will require modeling TAO/CIAO internals for
  configuration feasibility checking
• Can be applied to CORBA/CCM in general

20
Challenge 2 RT-CCM Container Policy Modeling

• Container Policy Modeling Language
• QoS crosscutting concerns in container/component
  policies abstracted out
• Modeling of these cross cutting concerns
• Model interpreters synthesize container policies.

21
Challenge 3 Component Synthesis Assembly

• Component Modeling Language
• Component logic modeling language
• Component interaction modeling language
• Synthesize CIDL
• Extend the Embedded Systems Modeling Language
  (ESML) designed for MoBIES

22
Challenge 4 End-to-End QoS Assurance

• Two approaches
• Via aggregating required/offered QoS per layer
• Via required/offered QoS only at end points
• Modeling will depend on the approach chosen

23
Summary of Ongoing Work

• RT/CCM (CIAO) being implemented at Washington
  University Vanderbilt University
• DP-CORBA being implemented jointly between
  Vanderbilt University UC Irvine
• CoSMIC tool suite, MRB being developed at
  Vanderbilt University
• All results will be available as open-source
  software

deuce.doc.wustl.edu/CIAO
www.isis.vanderbilt.edu/CoSMIC
24
Concluding Remarks

• GriT enhances TAO/CIAO
• Meta resource broker
• Patterns for resource reservation and QoS
  adaptation
• Uses Model Integrated Computing tools
• MIC and GME details available at
• www.isis.vanderbilt.edu
