Time-Memory Scheduling and Code Generation of Real-Time Embedded Software

1

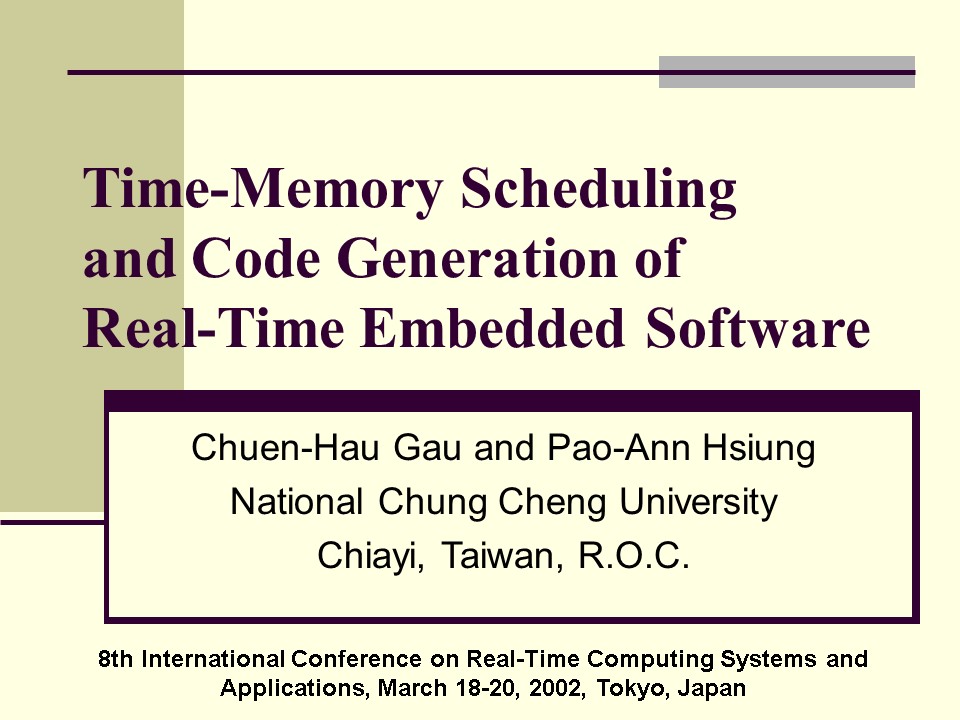

Time-Memory Scheduling and Code Generation
ofReal-Time Embedded Software

• Chuen-Hau Gau and Pao-Ann Hsiung
• National Chung Cheng University
• Chiayi, Taiwan, R.O.C.

8th International Conference on Real-Time
Computing Systems and Applications, March 18-20,
2002, Tokyo, Japan
2
Outline

• Introduction
• Previous Work
• Real-Time Embedded Software Synthesis
• ATM VPN Server Example
• Conclusions

3
Introduction

• Embedded systems abound in human daily life
• We interact with embedded systems in
• our homes,
• at offices,
• at labs,
• on transportations,
• in communications,
• Due to this interaction with humans, most
  embedded systems are also REAL-TIME systems
• And, software accounts for more than 70
  functionalities in a real-time embedded system

4
What is an embedded system?

• Installed in a larger system
• Dedicated task
• Small Memory Space (200400 KB)
• Low Processing Power (100200 MHz)
• Unstable Environment (mobile, )
• Reactive
• Real-Time

5
Embedded System Examples
research lab equipments
space crafts
factory automation
office equipments
home appliances
medical instruments
6
Embedded System Architecture
7
Design Issues and Solution
Proposed Solution
8
Previous Work

• Formal Software Synthesis
• Safe Petri-Nets (PN) ? Quasi-Static Scheduling
  (QSS) Lin DATE98, DAC98
• Free-Choice PN ? Net Decomposition QSS Sgroi
  DAC99
• Codesign FSM ? POLIS Balarin ICCD99
• Non-timed multi-rate PN ? Reachability
  graphCortadella et al DAC00
• Time Free-Choice PN ? QSS RTS or FIBS Hsiung
  CODES01, FORTE01

9
Real-Time Embedded Software (RTES) Model

• Real-Time Embedded Software is specified as a set
  of Colored Time Petri Nets (CTPN)
• Allows explicit modeling of
• Timing Constraints
• Memory Usages
• No free-choice restriction!
• Larger domain of real-time embedded applications!

10
Colored Time Petri Nets
11
Colored Time Petri Nets

• A CTPN is a 6-tuple (P,T, C, ?,M0,?) such that
• P is a finite set of places,
• T is a finite set of transitions, P ?T ? ?, P ?T
  ?,
• C is a set of colors associated with each token
• ? (P ?T ) ? (T ?P ) ? 2N?C, a set of weighted
  arcs such that each arc is associated with a set
  of integer-color pairs,
• M0 P ? 2N?C, the initial marking,
• ? (t ) (?, ?), t ?T, ? Earliest Firing Time,
  ? Latest Firing Time.

12
CTPN Marking

• A marking is a vector
• M ltNC1, NC2, , NCPgt
• where NCi is a set of integer-color pairs
  representing the non-negative number of colored
  tokens in place pi.
• 2 attributes are associated with each M
• (1) a time-stamp ?(M)
• (2) a memory-usage ?(M)

13
Valid Firing (System Execution)

• A transition t is said to be enabled at time ? in
  a marking M with time-stamp ?(M) if
• (1) ?(pk, t) ? NCk, ? ?(pk, t) ??, k? 1, ,P,
• (2) ? ? ?(M) ? ?? (t)
• The firing of a transition t at time ? in a
  marking M with time-stamp ?(M) is called a valid
  firing if
• Transition Deadline
• ??(t) ? ? ??(M) ? ??(t)
• Memory Constraint
• ?(M') ? ?max
• where M' is the marking obtained by firing t in
  M and ?max is the maximum amount of memory
  available.

14
RTES Synthesis Problem

• Target Problem
• Real-Time Embedded Software Synthesis
• Given
• a set of CTPN S Ai i 1,2,,n,
• an upper-bound ?max on memory space, and
• a set of real-time constraints CTPN periods,
  deadlines
• software code is to be generated such that
• it can be executed on a single processor,
• it uses memory less than or equal to ?max, and
• it satisfies all EFT, LFT, and real-time
  constraints.

15
RTES Synthesis Algorithm

• Choice Set
• H t2, t3, t4

16
RTES Synthesis Algorithm

• Exclusion Set
• H t2, t3, t4
• Merging of all
• non-disjoint
• choice sets

17
RTES Synthesis Algorithm

• Time-Memory Scheduling
• A schedule (sequence of firing transitions) is
  valid if the following are satisfied
• Transition deadline
• CTPN deadline
• Memory bound
• Incomplete exclusion sets are deleted (because
  corresponding code will be illegal)

18
RTES Synthesis Algorithm

• Transition Deadline Satisfaction
• Assume transition t
• enabled at marking M with time-stamp ?(M)
• fired at marking M? with time-stamp ?(M?),
• then it must satisfy
• ?(M?) - ?(M) ??(t) ? ??(t)

transition deadline
transition execution time
token age
19
RTES Synthesis Algorithm

• CTPN Deadline Satisfaction
• Assume transition t
• fired at marking M?
• ?(M?) ??(t) ? d

CTPN deadline for current task
transition execution time
20
RTES Synthesis Algorithm

• Memory Bound Satisfaction
• Assume transition t
• fires and CTPN reaches marking M?
• ?(M?) ? ?max

memory bound
memory usage
21
RTES Synthesis Algorithm

• while( Tree ! 0 )
• if( Entire Tree Marked ) CodeGen()
• if( Current Node Is Spawned )
• Current Node Delete Incomplete Exsets
• if Current Node Has Marked Child
• Current Node Delete Other Child, Mark, Go
  Parent
• if(Child SELECT() null)
• Current Node Delete Current and Go Parent
• else
• Current Node Go Child
• else
• if(Current Node Is A CompleteSchedule)
• Current Node Mark and Go Parent
• else
• Current Node Spawn

22
RTES Synthesis Algorithm

• Memory Estimation
• Global Memory ?G(R), R tree
• Local Memory maxt?M (?L(t)), t transition,
  M marking
• Buffer Memory
• Total Memory

23
Code Generation

• A real-time process for each independent task,
  i.e., each reachability tree
• tasks is minimal ( independent tasks)

Source Transitions in TFCPN
Main Program
24
Code Generation Algorithm

• Extract( CNode )
• if( CNode is leaf ) // no child
• Code getCode(CNode)
• Code return
• else if( CNode is branching ) // multi-child
• Code getBranchCode(CNode)
• for each child node CNode.ci
• Extract(CNode.ci)
• else // one child
• Code getCode(CNode)
• Extract(CNode.child)
• return(Code)

25
ATM VPN Server

• ATM switching nodes interconnect LANs via an ATM
  backbone.
• An ATM server
• temporarily stores input cells from VCCs (Virtual
  Channel Connections), and
• forward VCC cells to the VPCs (Virtual Path
  Connections) by identifying cell headers.

26
(No Transcript)
27
Functionalities of ATM VPN

• Message Selective Discarding (MSD)A message
  discarding technique that avoids buffer overflow
  by discarding selected incoming cells
• Weighted Fair Queuing (WFQ)A bandwidth control
  policy for outgoing flows
• Thus, there are TWO independent tasks!

28
ATM VPN Server
PUSH
Message Selective Discarding
VCC cell
WFQ scheduling
INSERT
Cell Extract
Counter
TICK
POP
29
CTPN model of MSD in ATM
30
CTPN models of WFQ, Extract
LAST BW gt GLOBAL_TIME ?
READ_LAST
t14
Y
p25
p27
p29
P30
p26
p28
N
INSERT_CELL
SCHEDULE_WFQ
t13
READ_BW
t15
POP
t19
t17
TICK
t16
SCHEDULE_WFQ
p36
IN?
p33
Qlength0?
N
N
p32
p31
READ_SORTER
N
Y
p35
p39
p37
p38
p34
II1
Y
Y
I0
CHECK_QLENGTH
COMPUTE_OUT_TIME
t18
CELL_OUT_TIME lt GLOBAL_TIME?
31
Reachability
Tree for MSD

• Schedule Results
• 49 markings
• 14 schedules
• 66 instructions
• 12 Kbytes Memory

32
Reachability Trees for WFQ and Extract

• Schedule Results
• WFQ
• 9 markings
• 2 schedules
• Extract
• 13 markings
• 4 schedules

33
Scheduling Results

• Both MSD and Extract call WFQ (2 schedules)
• MSD Task
• schedules 14 ? 2 28
• Extract Task
• schedules 4 x 2 8

34
Conclusions

• A synthesis method for real-time embedded
  software was presented
• No free-choice restriction on model
• Explicit time and data modeling
• Both real-time constraints and memory constraints
  are considered for scheduling
• Minimal number of tasks in generated code
• Can be used for prototyping platforms
