1

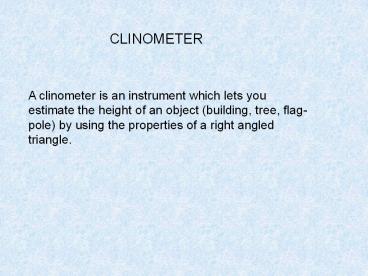

CLINOMETER
A clinometer is an instrument which lets you
estimate the height of an object (building, tree,
flag-pole) by using the properties of a right
angled triangle.
2
There are many types of clinometer
From the simple home-made
3
To the more elaborate
4
To the unusual looking
5
Or even this
6
However each is used in the same way to measure
an angle that will lead to calculating the height
of an object.
7
To calcuate the height of a tree
Stand a suitable distance from the tree
Using a suitable instrument measure and record
height A and distance B
Use a clinometer to measure the angle at C
8
The procedure is the same for any object
9
Draw a Suitable diagram
Use this as a scale diagram to find the height of
the object
Or use trigonometry
10
Height of observer (M) (A) Horizontal distance to object (M) (B) Angle (C) TanC (BXTanC) Height of object A
1.55 24 230 0.4245 10.19 11.74
