Exploiting%20Inter-Class%20Rules%20for%20Focused%20Crawling

1

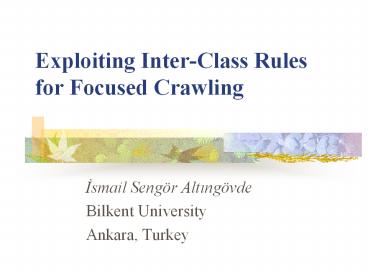

Exploiting Inter-Class Rules for Focused Crawling

• Ismail Sengör Altingövde
• Bilkent University
• Ankara, Turkey

2
Our Research The Big Picture

• Goal Metadata based modeling and querying of web
  resources
• Stages
• Semi automated metadata extraction from web
  resources Focused crawling fits here!
• Extending SQL to support ranking and text-based
  operations in an integrated manner
• Developing query processing algorithms
• Prototyping a digital library application for CS
  resources

3
Overview

• Motivation
• Background related work
• Interclass rules for focused crawling
• Preliminary results

4
Motivation

• Crawlers a.k.a. bots,spiders, robots
• Goal Fetching all the pages on the Web, to allow
  succeding useful tasks (e.g., indexing)
• all pages means somewhat 4 billion pages today
  (due to Google)
• Requires enormous hardware and network resources
• Consider the growth rate refresh rate of Web
• What about hidden-Web and dynamic content?

5
Motivation

• Certain applications do need such powerful (and
  expensive) crawlers
• e.g., a general purpose search engine
• And some others dont...
• e.g., a portal on computer science papers, or
  people homepages...

6
Motivation

• Lets relax the problem space
• Focus on a restricted target space of Web pages
• that may be of some type (e.g., homepages)
• that may be of some topic (CS, quantum physics)
• The focused crawling effort would
• use much less resources,
• be more timely,
• be more qualified for indexing searching
  purposes

7
Motivation

• Goal Design and implement a focused Web crawler
  that would
• gather only pages on a particular topic (or
  class)
• use interclass relationships while choosing the
  next page to download
• Once we have this, we can do many interesting
  things on top of the crawled pages
• I plan to be around for a few more years!!! ?

8
Background A typical crawler

• Starts from a set of seed pages
• Follows all hyperlinks it encounters, to
  eventually traverse the entire Web
• Applies breadth-first search (BFS)
• Runs endless in cycles
• to revisist modified pages
• to access unseen content

9
Our simple BFS crawler
10
Crawling issues...

• Multi-threading
• Use separate and dedicated threads for DNS
  resolution and actual page downloading
• Cache and prefetch DNS resolutions
• Content-seen test
• Avoid duplicate content, e.g., mirrors
• Link extraction and normalization
• Canonical URLs

11
More issues...

• URL-seen test
• Avoid being trapped in a cycle!
• Hash visited URLs by MD5 algorithm and store in a
  database.
• 2-level hashing to exploit spatio-temporal
  locality
• Load balancing among hosts Be polite!
• Robot exclusion protocol
• Meta tags

12
Even more issues?!

• Our crawler is simple, since issues like
• Refreshing crawled web pages
• Performance monitoring
• Hidden-Web content
• are left out...
• And some of the implemented issues can be still
  improved
• Busy queue for the politeness policy!

13
Background Focused crawling

• A focused crawler seeks and acquires ...
  pages on a specific set of topics representing a
  relatively narrow segment of the Web. (Soumen
  Chakrabarti)
• The underlying paradigm is Best-First Search
  instead of the Breadth-First Search

14
Breadth vs. Best First Search
15
Two fundamental questions

• Q1 How to decide whether a downloaded page is
  on-topic, or not?
• Q2 How to choose the next page to visit?

16
Early algorithms

• FISHSEARCH Query driven
• A1 Pages that match to a query
• A2 Neighborhood of the pages in the above
• SHARKSEARCH
• Use TF-IDF cosine measure from IR to determine
  page relevance
• Cho et. al.
• Reorder crawl frontier based on page importance
  score (PageRank, in-links, etc.)

17
Chakrabartis crawler

• Chakrabartis focused crawler
• A1 Determines the page relevance using a text
  classifier
• A2 Adds URLs to a max-priority queue with their
  parent pages score and visits them in descending
  order!
• What is original is using a text classifier!

18
The baseline crawler

• A simplified implementation of Chakrabartis
  crawler
• It is used to present evaluate our rule based
  strategy
• Just two minor changes in our crawler
  architecture, and done!!!

19
Our baseline crawler
20
The baseline crawler

• An essential component is text classifier
• Naive-Bayes classifier called Rainbow
• Training the classifier
• Data Use a topic taxonomy (The Open Directory,
  Yahoo).
• Better than modeling a negative class

21
Baseline crawler Page relevance

• Testing the classifier
• User determines focus topics
• Crawler calls the classifier and obtains a score
  for each downloaded page
• Classifier returns a sorted list of classes and
  scores
• (A 80, B 10, C 7, D 1,...)
• The classifier determines the page relevance!

22
Baseline crawler Visit order

• The radius-1 hypothesis If page u is an on-topic
  example and u links to v, then the probability
  that v is on-topic is higher than the probability
  that a random chosen Web page is on-topic.

23
Baseline crawler Visit order

• Hard-focus crawling
• If a downloaded page is off-topic, stops
  following hyperlinks from this page.
• Assume target is class B
• And for page P, classifier gives
• A 80, B 10, C 7, D 1,...
• Do not follow Ps links at all!

24
Baseline crawler Visit order

• Soft-focus crawling
• obtains a pages relevance score (a score on the
  pages relevance to the target topic)
• assigns this score to every URL extracted from
  this particular page, and adds to the priority
  queue
• Example A 80, B 10, C 7, D 1,...
• Insert Ps links with score 0.10 into PQ

25
Rule-based crawler Motivation

• Two important observations
• Pages not only refer to pages from the same
  class, but also pages from other classes.
• e.g., from bicycle pages to first aid pages
• Relying on only radius-1 hypothesis is not
  enough!

26
Rule-based crawler Motivation

• Baseline crawler can not support tunneling
• University homepages link to CS pages, which
  link to researcher homepages, and which futher
  link to CS papers
• Determining score only w.r.t. the similarity to
  the target class is not enough!

27
Our solution

• Extract rules that statistically capture linkage
  relationships among the classes (topics) and
  guide crawler accordingly
• Intuitively, we determine relationships like
  pages in class A refer to pages in class B with
  probability X
• A B (X)

28
Our solution

• When crawler seeks for class B and page P at hand
  is of class A,
• consider all paths from A to B
• compute an overall score S
• add links from P to the PQ with this score S
• Basically, we revise radius-1 hypothesis with
  class linkage probabilities.

29
How to obtain rules?
30
An example scenario

• Assume our taxonomy have 4 classes
• department homepages (DH)
• course homepages (CH)
• personal homepages (PH)
• sports pages (SP)
• First, obtain train-0 set
• Next, for each class, assume 10 pages are fetched
  pointed to by the pages in train-0 set

31
An example scenario
The distribution of links to classes
Inter-class rules for the above distribution
32
Seed and target classes are both from the class
PH.
33
Seed and target classes are both from the class
PH.
34
Rule-based crawler

• Rule-based approach succesfully uses class
  linkage information
• to revise radius-1 hypothesis
• to reach an immediate award

35
Rule-based crawler Tunneling

• Rule based approach also support tunneling by a
  simple application of transitivity.
• Consider URL2 (of class DH)
• A direct rule is DH ? PH (0.1)
• An indirect rule is
• from DH ? CH (0.8) and CH ? PH (0.4)
• obtain DH ? PH (0.8 0.4 0.32)
• And, thus DH ? PH (0.1 0.32 0.42)

36
Rule-based crawler Tunneling

• Observe that
• In effect, the rule based crawler becomes aware
  of a path DH ? CH ? PH, although it has only
  trained with paths of length 1.
• The rule based crawler can succesfully imitate
  tunneling.

37
Rule-based score computation

• Chain the rules up to some predefined MAX-DEPTH
  number (e.g., 2 or 3)
• Merge the paths with the function SUM
• If no rules whatsoever, stick on soft-focus score
• Note that
• Rule db can be represented as a graph, and
• For a given target class all cycle free paths
  (except self loop of T) can be computed (e.g.,
  modify BFS)

38
Rule-based score computation
39
Preliminary results Set-up

• DMOZ taxonomy
• leafs with more than 150 URLs
• 1282 classes (topics)
• Train-0 set 120K pages
• Train-1 set 40K pages pointed to by 266
  interrelated classes (all about science)
• Target topics are also from these 266 classes

40
Preliminary results Set-up

• Harvest ratio the average relevance of all pages
  acquired by the crawler to the target topic

41
Preliminary results

• Seeds are from DMOZ and Yahoo!
• Harvest rate improve from 3 to 38
• Coverage also differs

42
Harvest Rate
43
Future Work

• Sophisticated rule discovery techniques (e.g.,
  topic citation matrix of Chakrabarti et al.)
• On-line refinement of the rule database
• Using the entire taxonomy but not only leafs

44
Acknowledgments

•  We gratefully thank Ö. Rauf Atay for the
  implementation.

45
References

• I. S. Altingövde, Ö. Ulusoy, Exploiting
  Inter-Class Rules for Focused Crawling, IEEE
  Intelligent Systems Magazine, to appear.
• S. Chakrabarti, Mining the Web Discovering
  Knowledge from Hypertext Data. Morgan Kaufmann
  Publishers, 352 pages, 2003.
• S. Chakrabarti, M. H. van den Berg, and B.E. Dom,
  Focused crawling a new approach to
  topic-specific web resource discovery, In Proc.
  of 8th International WWW Conference (WWW8),
  1999.

46
Any questions???
