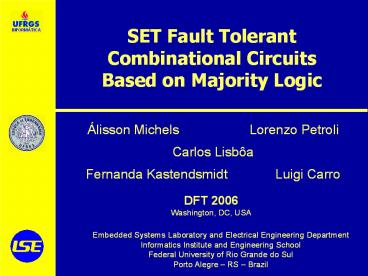

SET Fault Tolerant Combinational Circuits Based on Majority Logic

1
SET Fault Tolerant Combinational Circuits Based
on Majority Logic

• Álisson Michels Lorenzo Petroli
• Carlos Lisbôa
• Fernanda Kastendsmidt Luigi Carro

2
What is Wrong with TMR ?

• TMR does not protect against two faults affecting
  different modules

3
Fault-tolerant analog voter
4
Use of majority gates in AOI logic
5
Sample implementation full adder
Classic TMR implementation - 3 standard AOI full
adder modules - 1 digital voter per output bit
Proposed solution - single full adder
module - majority gates used to implement AND/OR
functions - analog comparators used to implement
majority gates and inverters
6
Area Comparison(32 nm technology)
The proposed solution brings a 36 reduction in
area, when compared to the classic TMR
implementation
7
Thank You !

• For more details,
• come and see the poster !
• Contact calisboa_at_inf.ufrgs.br
