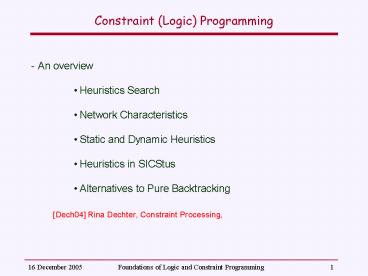

Constraint (Logic) Programming

1
Constraint (Logic) Programming

• An overview
• Heuristics Search
• Network Characteristics
• Static and Dynamic Heuristics
• Heuristics in SICStus
• Alternatives to Pure Backtracking
• Dech04 Rina Dechter, Constraint Processing,

2
Heuristic Search

• Algorithms that maintain some form of
  consistency, remove (many?) redundant values but,
  not being complete, do not eliminate the need for
  search.
• Even when a constraint network is consistent,
  enumeration is subject to failure.
• In fact, a consistent constraint network may not
  even be satisfiable (neither a satisfiable
  constraint network is necessarily consistent).
• All that is guaranteed by maintaining some type
  of consistency is that the networks are
  equivalent.
• Solutions are not lost in the reduced network,
  that despite having less redundant values, has
  all the solutions of the former.

3
Heuristic Search

• Hence, the domain pruning does not eliminate in
  general the need for search. The search space is
  usually organised as a tree, and the search
  becomes some form of tree search.
• As usual, the various branches down from one node
  of the search tree correspond to the assignment
  of the different values in the domain of a
  variable.
• As such, a tree leaf corresponds to a complete
  compound label (including all the problem
  variables).
• A depth first search in the tree, resorting to
  backtracking when a node corresponds to a dead
  end (unsatisfiability), corresponds to an
  incremental completion of partial solutions until
  a complete one is found.

4
Heuristic Search

• Given the execution model of constraint logic
  programming (or any algorithm that interleaves
  search with constraint propagation)
• Problem(Vars)-
• Declaration of Variables and Domains,
• Specification of Constraints,
• Labelling of the Variables.
• the enumeration of the variables determines the
  shape of the search tree, since the nodes that
  are reached depend on the order in which
  variables are enumerated.
• Take for example two distinct enumerations of
  variables whose domains have different
  cardinality, e.g. X in 1..2, Y in 1..3 and Z in
  1..4.

5
Heuristic Search
enum(X,Y,Z)- indomain(X) propagation
indomain(Y), propagation, indomain(Z).
of nodes 32 (2 6 24)
6
Heuristic Search
enum(X,Y,Z)- indomain(Z), propagation
indomain(Y), propagation, indomain(X).
of nodes 40 (4 12 24)
7
Heuristic Search

• The order in which variables are enumerated may
  have an important impact on the efficiency of the
  tree search, since
• The number of internal nodes is different,
  despite the same number of leaves, or potential
  solutions, P Di.
• Failures can be detected differently, favouring
  some orderings of the enumeration.
• Depending on the propagation used, different
  orderings may lead to different prunings of the
  tree.
• The ordering of the domains has no direct
  influence on the search space, although it may
  have great importance in finding the first
  solution.

8
Variable Selection Heuristics

• To control the efficiency of tree search one
  should in principle adopt appropriate heuristics
  to select
• The next variable to label
• The value to assign to the selected variable
• Since heuristics for value choice will not affect
  the size of the search tree to be explored,
  particular attention will be paid to the
  heuristics for variable selection. Here, two
  types of heuristics can be considered
• Static - the ordering of the variables is set up
  before starting the enumeration, not taking into
  account the possible effects of propagation.
• Dynamic - the selection of the variable is
  determined after analysis of the problem that
  resulted from previous enumerations (and
  propagation).

9
Width of a Node

• Static heuristics are based on some properties of
  the underlying constraint graphs, namely their
  width and bandwidth.
• First the width of a node is defined-
• Definition Width of a node N, given ordering
  O)
• Given some total ordering, O, of the nodes of a
  graph, the width of a node N, induced by ordering
  O is the number of lower order nodes that are
  adjacent to N.
• .

As an example, given any ordering that is
increasing from the root to the leaves of a tree,
all nodes of the tree (except the root) have
width 1.
10
Width of a Graph

• Definition (Width of a graph G, induced by O)
• Given some ordering, O, of the nodes of a graph,
  G, the width of G induced by ordering O, is the
  maximum width of its nodes, given that ordering.
• Definition (Width of a graph G)
• The width of a graph G is the lowest width of
  the graph induced by any of its orderings O.

It is apparent from these definitions, that a
tree is a special graph whose width is 1.
11
Graph Width

• Example
• In the graph below, we may consider various
  orderings of its nodes, inducing different
  widths. The width of the graph is 3 (this is, for
  example the width induced by ordering O1dir).

ltlt wO1dir 3 (nodes 4, 5, 6 and 7) gtgt wO1inv
5 (nd 1)
ltlt wO2dir 5 (node 1) gtgt wO1inv
6 (nd 4)
12
Graph Width and k-Consistency

• As shown before, to get a backtrack free search
  in a tree, it would be enough to guarantee that,
  for each node N, all of its children (adjacent
  nodes with higher order) have values that support
  the values in the domain of node N.
• This result can be generalised for arbitrary
  graphs, given some ordering of its nodes.
• If, according to some ordering, the graph has
  width w, and if enumeration follows that
  ordering, backtrack free search is guaranteed if
  the network is strongly k-consistent (with k gt
  w).
• In fact, like for the case of the trees, it would
  be enough to maintain some kind of directed
  strong consistency, if the labelling of the nodes
  is done in increasing order.

13
Graph Width and k-Consistency

• Example
• With ordering Lo1dir, strong 4-consistency
  guarantees backtrack free search. Such
  consistency guarantees that any 3-compound label
  that satisfies the relevant constraints, may be
  extended to a 4th variable that satisfies the
  relevant constraints.
• In fact, any value v1 from the domain of variable
  1 may be selected. If strong 4-consistency is
  maintained, values from the domains of the other
  variables will possibly be removed, but no
  variable will have its domain emptied.

14
Graph Width and k-Consistency

• Example (cont.)
• Since the ordering induces width 3, every
  variable Xk connected to variable X1 is connected
  at most with other 2 variables lower than Xk.
  For example, variable X6, connected to variable
  X1 is also connected to lower variables X3 and X4
  (the same applies to X5-X4-X1 and X4-X3-X2-X1)
• Hence, if the network is strongly 4-consistent,
  and if the label X1-v1 was there, this means that
  any 3-compound label X1-v1, X3-v3, X4-v4 could
  be extended to a 4-compound label X1-v1, X3-v3,
  X4-v4, X6-v6 satisfying the relevant
  constraints. When X1 is enumerated to v1, values
  v3, v4, v6 (at least) will be kept in their
  variable domains.

15
Graph Width and k-Consistency

• This example shows that, after the enumeration of
  the lowest variable (in an ordering that
  induces a width w to the graph) of a strongly
  k-consistent network (and k gt w) the remaining
  values still have values in their domains (to
  avoid backtracking).
• Being strongly k-consistent, all variables
  connected to node 1 (variable X1) are only
  connected to at most w-1 (ltk) other variables
  with lower order.
• Hence, if some value v1 was in the domain of
  variable X1, then for all these sets of w
  variables, some w-compound label
  X1-v1,...,Xw-1-vw-1 could be extended with some
  label Xw-vw.
• Therefore, when enumerating X1v1 the removal of
  the other values of X1 still leaves the
  w-compound label X1-v1, ..., Xw-vw to satisfy
  the relevant constraints.

16
Graph Width and k-Consistency

• Example (cont.)
• The process can proceed recursively, by
  successive enumeration of the variables in
  increasing order. After each enumeration the
  network will have one variable less and values
  might eventually be removed from the domain of
  the remaining variables, ensuring that the
  simplified network remains strongly 4-consistent.
• Eventually, a network with only 4 variables is
  reached, and an enumeration is obviously possible
  without the need, ever, of backtracking.

17
Graph Width and k-Consistency

• The ideas illustrated in the previous example
  could lead to a formal proof (by induction) of
  the following
• Theorem
• Any constraint network strongly k-consistent,
  may be enumerated backtrack free if there is an
  ordering O according to which the constraint
  graph has a width less then k.
• In practice, if such an ordering O exists, the
  enumeration is done in increasing order of the
  variables, maintaining the system k-consistent
  after enumeration of each variable.
• This result is particularly interesting for large
  and sparse networks, where the added cost of
  maintaining say, path-consistency (polinomial)
  may compensated by not incurring in backtracking
  (exponential).

18
MWO Heuristics

• Strong k-consistency is of course very costly to
  maintain, in computational terms, and this is
  usually not done.
• Nevertheless, and specially in constraint
  networks with low density and where the widths of
  the nodes vary significantly with the orderings
  used, the orderings leading to lower graph widths
  may be used to heuristically select the variable
  to label. Specifically, one may define the
• MWO Heuristics (Minimum Width Ordering)
• The Minimum Width Ordering heuristics suggests
  that the variables of a constraint problem are
  enumerated, increasingly, in some ordering that
  leads to a minimal width of the primal constraint
  graph.

19
MWO Heuristics

• The definition refers the primal graph of a
  constraints problem, which coincides with the
  graph for binary constraints (arcs). For n-ary
  constraints, the primal graph includes an arc
  between any variables connected by an hyper-arc
  in the problem hyper-graph.
• For example, the graph being used could be the
  primal graph of a problem with 2 quaternary
  constraints (C1245 and C1346) and 3 ternary
  constraints (C123, C457 and C467).

C123 --gt arcs a12, a13 e a23 C1245 --gt arcs a12,
a14, a15, a24, a25 and a45 C1346 --gt arcs a13,
a14, a16, a34, a36 and a46 C457 --gt arcs a45,
a47 e a57 C467 --gt arcs a46, a47 e a67
20
MWO Heuristics

• The application of the MWO heuristcs, requires
  the determination of orderings O leading to the
  lowest primal constraint graph width. The
  following greedy algorithm can be used to
  determine such orderings.
• function sorted_vars(V,C) Node List
• if V N then only one variable
• sorted_vars lt- N
• else
• N lt- arg Vi min degree(Vi,C) Vi in V
• N is one of the nodes
  with less neighbours
• Clt- C \ arcs(N,C)
• Vlt- V \ N
• sorted_vars lt- sorted_vars(V,C) N
• end if
• end function

21
MWO Heuristics

• Example
• In the graph, node 7 has least degree (3). Once
  removed node 7, nodes 5 and 6 have least degree
  (3).
• Node 6 is now removed.
• Nodes 5, 4 (degree 3), 3 (degree 2) and 2 (degree
  1) are subsequently removed, as shown below.

• The ordering 1,2,3,4,5,6,7 obtained, leads to
  a width 3 for the graph.

22
MWO and MDO Heuristics

• Both the MWO and the MDO heuristic start the
  enumeration by those variables with more
  variables adjacent in the graph, aiming at the
  earliest detection of dead ends.
• (notice that in the algorithm to detect minimal
  width ordering, the last variables are those with
  least degree).

Example MWO and MDO orderings are not
necessarily coincident, and may be used to break
ties. For example, the two MDO orderings O1
4,1,5,6,2,3,7 O2 4,1,2,3,5,6,7 induce
different widths (4 and 3).
23
Cycle-Cut Sets

• The MWO heuristic is particularly useful when
  some high level of consistency is maintained, as
  shown in the theorem relating it with strong
  k-consistency, which is a generalisation to
  arbitrary constraint networks of the result
  obtained with constraint trees.
• However, since such consistency is hard to
  maintain, an alternative is to enumerate the
  problem variables in order to, as soon as
  possible, simplify the constraint network into a
  constraint tree.
• From there, a backtrack free search may proceed,
  provided directed arc consistency is maintained,
  which is relatively inexpensive from a
  computational view point
• This is the basic idea of cycle-cut sets.

24
Cycle-Cut Sets

• Obviously, one is interested in cycle-cut sets
  with lowest cardinality.
• Consider a constraint network with n variables
  with domains of size d. If a cycle-cut set of
  cardinality k is found, the search complexity is
  reduced to
• a tuple in these k nodes with time complexity
  O(dk) and
• maintenance of (directed) arc consistency in the
  remaining tree with n-k nodes, with time
  complexity O(ad2).
• Since a n-k-1 for a tree with n-k nodes, and
  asuming that k is small, the total time
  complexity is thus
• O(n dk2).

25
CCS Heuristics

• One may thus define the
• CCS Heuristics (Cycle-Cut Sets)
• The Cycle-Cut Sets heuristics suggests that the
  first variables of a constraint problem to be
  enumerated are those that form a cycle-cut set
  with least cardinality.
• Unfortunately, there seems to be no good
  algorithm to determine optimal cycle-cut sets
  (i.e. with least cardinality).
• Two possible approximations correspond to use the
  sorted_vars algorithm with the inverse ordering,
  or simply start with the nodes with maximum
  degree (MDO).

26
CCS Heuristics

• Example
• Using algorith sorted_vars but selecting first
  the nodes with highest degree, we would get the
  following variable selection
• Remove node 4 (degree 6) and get
• Remove node 1 (degree 4) and get

1. Now, inclusion of any of the other nodes (all
   with degree 2) turns the constraint graph into a
   tree. Selecting node 2, we get the cycle-cut set
   1,2,4, which is optimal.

27
Cycle-Cut Sets

• Example
• Enumeranting first variables 1 and 4, the graph
  becomes.
• Therefore, adding any other node to the set 1,4
  eliminates cycle 2-3-6-7-5-2, and turn the
  remaining nodes into a tree.
• Sets 1,4,2, 1,4,3, 1,4,5, 1,4,6 and
  1,4,7, are thus cycle-cut sets.
• For example, after enumeration of variables from
  the cycle-cut set 1,4,7, the remaining
  constraint graph is a tree.

28
MBO Heuristics

• Definition (Bandwidth of a graph G, induced by
  O)
• Given a total ordering O of the nodes of a
  graph, the bandwidth of a graph G, induced by O,
  is the maximum distance between adjacent nodes.

• Example
• With ordering O1, the bandwith of the graph is
  5, the distance between nodes 1-6 and 2-7. If
  the choice of variable X6 determines the choice
  of X1, changes of X1 will only occur after
  irrelevantly backtracking variables X5, X4, X3
  and X2 !!!

29
MBO Heuristics

• Definition (Bandwidth of a graph G)
• The bandwidth of a graph G is the lowest
  bandwidth of the graph induced by any of its
  orderings O.

• Example
• With ordering O2, the bandwidth is 3, the
  distance between adjacent nodes 2/5, 3/6 and 4/7.
• No ordering induces a lower bandwidth to the
  graph. Therefore, the graph bandwidth is 3 !!!

30
MBO Heuristics

• The concept of bandwidth is the basis of the
  following
• MBO Heuristics (Minimum Bandwidth Ordering)
• The Minimum Width Ordering heuristics suggests
  that the variables of a constraint problem are
  enumerated, increasingly, in some ordering that
  leads to the minimal bandwidth of the primal
  constraint graph.

• Example
• The MBO heuristic suggests the use of an
  heuristic succh as O2, that induces a bandwidth
  of 3.

31
MBO Heuristics

• The use of the MBO heuristics with constraint
  propagation is somewhat problematic since
• The constraint graphs in which it is more useful
  should be sparse and possessing no node with high
  degree. In the latter case, the distance to the
  farthest apart adjacent node dominates.
• The principle exploited by the heuristics, avoid
  irrelevant backtracking, is obtained, hopefully
  more efficiently, by constraint propagation.
• No efficient algorithms exist to compute the
  bandwidth for general graphs (see Tsan93, ch.
  6).

32
MBO Heuristics

• These difficulties are illustrated by some
  examples
• Difficulty 1
• The constraint graphs in which it is more useful
  should be sparse and possessing no node with high
  degree. In the latter case, the distance to the
  farthest apart adjacent node dominates

• Example
• Node 4, with degree 6, determines that the
  bandwith may be no less than 3 (for orderings
  with 3 nodes before and 3 nodes after node 4).
• Many orderings exist with this bandwidth. However
  if node 3 were connected to node 7, the
  bandwidth would be 4.

33
MBO Heuristics

• Difficulty 2
• Irrelevant backtracking is handled by constraint
  propagation.

• Example
• Assume the choice of X6 is determinant for the
  choice of X1. Constraint propagation will
  possibly empty the domain of X6 if a bad choice
  is made in labeling X1, before (some) variables
  X2, X3, X4 and X5 are labeled, thus avoiding
  their irrelevant backtracking.

The MBO heuristics is thus more appropriate with
backtracking algorithms without constraint
propagation.
34
MBO Heuristics

• Difficulty 3
• No efficient algorithms exist to compute
  bandwidth for general graphs.
• In general, lower widths correspond to lower
  bandwidths, but the best orderings in both cases
  are usually different.

ltlt Width (minimal) 2 Bandwidth 5
ltlt Width 3 Bandwidth (minimal) 4
35
Dynamic Heuristics

• In contrast to the static heuristics discussed
  (MWO, MDO, CCS e MBO) variable selection may be
  determined dynamically.
• Instead of being fixed before enumeration starts,
  the variable is selected taking into account the
  propagation of previous variable selections (and
  labellings).
• In addition to problem specific heuristics, there
  is a general principle that has shown great
  potential, the first-fail principle.
• The principle is simple when a problem includes
  many interdependent tasks, start solving those
  that are most difficult. It is not worth wasting
  time with the easiest ones, since they may turn
  to be incompatible with the results of the
  difficult ones.

36
First-Fail Heuristics

• There are many ways of interpreting and
  implementing this generic first-fail principle.
• Firstly, the tasks to perform to solve a
  constraint satisfaction problem may be considered
  the assignment of values to the problem
  variables. How to measure their difficulty?
• Enumerating by itself is easy (a simple
  assignment). What turns the tasks difficult is to
  assess whether the choice is viable, after
  constraint propagation. This assessment is hard
  to make in general, so we may consider features
  that are easy to measure, such as
• The domain of the variables
• The number of constraints (degree) they
  participate in.

37
First-Fail Heuristics

• The domain of the variables
• Intuitively, if variables X1/X2 have m /m2 values
  in their domains, and m2 gt m1, it is preferable
  to assign values to X1, because there is less
  choice available !
• In the limit, if variable X1 has only one value
  in its domain, (m1 1), there is no possible
  choice and the best thing to do is to immediately
  assign the value to the variable.
• Another way of seeing the issue is the following

• On the one hand, the chance to assign a good
  value to X1 is higher than that for X2.
• On the other hand, if that value proves to be a
  bad one, a larger proportion of the search space
  is eliminated.

38
First-Fail Heuristics Example

• Example
• In the 8 queens problem, where queens Q1, Q2 e
  Q3, were already enumerated, we have the
  following domains for the other queens

• Q4 in 2,7,8, Q5 in 2,4,8, Q6 in 4, Q7 in
  2,4,8, Q8 in 2,4,6,7.
• Hence, the best variable to enumerate next should
  be Q6, not Q4 that would follow in the natural
  order.
• In this extreme case of singleton domains,
  node-consistency achieves pruning similar to
  arc-consistency with less computational costs!

39
First-Fail Heuristics

• The number of constraints (degree) of the
  variables
• This heuristics is basically the Maximum Degree
  Ordering (MDO) heuristics, but now the degree of
  the variables is assessed dynamically, after each
  variable enumeration.
• Clearly, the more constraints a variable is
  involved in, the more difficult it is to assign a
  good value to it, since it has to satisfy a
  larger number of constraints.
• Of course, and like in the case of the domain
  size, this decision is purely heuristic. The
  effect of the constraints depends greatly on
  their propagation, which depends in turn on the
  problem in hand, which is hard to antecipate.

40
Problem Dependent Heuristics

• In certain types of problems, there might be
  heuristics specially adapted for the problems
  being solved.
• For example, in scheduling problems, where they
  should not overlap but have to take place in a
  certain period of time, it is usually a good
  heuristic to scatter them as much as possible
  within the allowed period.
• This suggests that one should start by
  enumerating first the variables corresponding to
  tasks that may be performed in the beginning and
  the end of the allowed period, thus allowing
  space for the others to execute.
• In such case, the dynamic choice of the variable
  would take into account the values in its domain,
  namely the minimum and maximum values.

41
Mixed Heuristics

• Taking into account the features of the
  heuristics discussed so far, one may consider the
  use of mixed strategies, that incorporate some of
  these heuristics.
• For example the static cycle-cut sets (CCS)
  heuristics suggests a set of variables to
  enumerate first, so as to turn the constraint
  graph into a tree.
• Within this cycle-cut set one may use a
  first-fail dynamic heuristic (e.g. smallest
  domain size).
• On the other hand, even a static heuristic like
  Minimal Width Ordering (MWO), may be turned
  dynamic, by reassessing the width of the graphs
  after a certain number of enumerations, to take
  into account the results of propagation.

42
Value Choice Heuristics

• Some forms of assigning likelihoods are the
  following
• Ad hoc choice
• Again in scheduling problems, once selected the
  variable with lowest/highest values in its
  domain, the natural choice for the value will be
  the lowest/highest, which somehow optimises the
  likelihood of success.
• Lookahed
• One may try to antecipate for each of the
  possible values the likelihood of success by
  evaluating after its propagation the effect on an
  aggregated indicator on the size of the domains
  not yet assigned (as done with the kappa
  indicator), chosing the one that maximises such
  indicator.

43
Value Choice Heuristics

• Optimisation
• In optimisation problems, where there is some
  function to maximise/minimise, one may get bounds
  for that function when the alternative values are
  chosen for the variable, or check how they change
  with the selected value.
• Of course, the heuristic will chose the value
  that either optimises the bounds in
  consideration, or that improves them the most.
• Notice that in this case, the computation of the
  bounds may be performed either before propagation
  takes place (less computation, but also less
  information) or after such propagation.
• .

44
Heuristics in SICStus

• Being based on the Constraint Logic Programming
  paradigm, a program in SICStus has the structure
  described before
• Problem(Vars)-
• Declaration of Variables and Domains,
• Specification of Constraints,
• Labelling of the Variables.
• In the labelling of the variables X1, X2, ...,
  Xn, of some list Lx, one should specify the
  intended heuristics.
• Although these heuristics may be programmed
  explicitely, there are some facilities that
  SICStus provides, both for variable selection and
  value choice.

45
Heuristics in SICStus

• The simplest form to specify enumeration is
  through a buit-in predicate, labeling/2, where
• the 1st argument is a list of options, possibly
  empty
• The 2nd argument is a list Lx X1, X2, ..., Xn
  of variables to enumerate
• By default, labeling( , Lx) selects variables
  X1, X2, ..., Xn, from list Lx, according to their
  position, from left to right. The value chosen
  for the variable is the least value in the
  domain.
• This predicate can be used with no options for
  static heuristics, provided that the variables
  are sorted in the list Lx according to the
  intended ordering.

46
Heuristics in SICStus

• With an empty list of options, predicate
  labeling( ,L) is in fact equivalent to
  predicate enumerating(L) below
• enumerating().
• enumerating(XiT)-
• indomain(Xi),
• enumerating(T).
• where the built-in predicate, indomain(Xi),
  choses values for variable Xi in increasing
  order.
• There are other possibilities for user control of
  value choice. The current domain of a variable,
  may be obtained with built-in fd_predicate
  fd_dom/2. For example
• ?- X in 1..5, X \3, fd_dom(X,D).
• D (1..2)\/(4..5),
• X in(1..2)\/(4..5) ?

47
Heuristics in SICStus

• Usually, it is not necessary to reach this low
  level of programming, and a number of predefined
  options for predicate labeling/2 can be used.
• The options of interest for value choice for the
  selected variable are up and down, with the
  obvious meaning of chosing the values from the
  domain in increasing and decreasing order,
  respectively.
• Hence, to guarantee that the value of some
  variable is chosen in decreasing order without
  resorting to lower-level fd_predicates, it is
  sufficient, to call predicate labeling/2 with
  option down
• labeling(down,Xi)

48
Heuristics in SICStus

• The options of interest for variable selection
  are leftmost, min, max, ff, ffc and variable(Sel)
• leftmost - is the default mode.
• Variables are simply selected by their order in
  the list.
• min, max - the variable with the lowest/highest
  value in its domain is selected.
• Useful, for example, in many applications of
  scheduling, as discussed.
• ff, ffc - implements the first-fail heuristics,
  selection the variable with a domain of least
  size, breaking ties with the number of
  constraints, in which the variable is involved.

49
Heuristics in SICStus

• variable(Sel)
• This is the most general possibility. Sel must be
  defined in the program as a predicate, whose last
  3 parameters are Vars, Selected, Rest. Given the
  list of Vars to enumerate, the predicate should
  return Selected as the variable to select, Rest
  being the list with the remaining variables.
• Other parameters may be used before the last 3.
  For example, if option variable(includes(5)) is
  used, then some predicate includes/4 must be
  specified, such as
• includes(V, Vars, Selected, Rest)
• which should chose, from the Vars list, a
  variable, Selected, that includes V in its
  domain.

50
Heuristics in SICStus

• Notice that all these options of predicate
  labeling/2 may be programmed at a lower level,
  using the adequate primitives available from
  SICStus for inspection of the domains. These
  Reflexive Predicates, named fd_predicates
  include
• fd_min(?X, ?Min)
• fd_max(?X, ?Max)
• fd_size(?X, ?Size)
• fd_degree(?X, ?Degree)
• with the obvious meaning. For example,
• ?- X in 3..8, Y in 1..5, X lt Y,
• fd_size(X,S), fd_max(X,M),
  fd_degree(Y,D).
• D 1, M 4, S 2,
• X in 3..4, Y in 4..5 ?

51
Heuristics in SICStus

• Program queens_fd_h solves the n queens problem
• queens(N,M,O,S,F)
• with various labelling options
• Variable Selection
• Option ff is used.
• Variables that are passed to predicate labeling/2
  may or may not be (M2/1) sorted from the middle
  to the ends (for example, X4,X5,X3,X6,X2,X7,X1,X8
  ) by predicate
• my_sort(2, Lx, Lo).
• Value Choice
• Rather than starting enumeration from the lowest
  value, an offset (parameter O) is specified to
  start enumeration half-way.

52
Alternatives to Pure Backtracking

• Constraint Logic Programming uses, by default,
  depth first search with backtracking in the
  labelling phase.
• Despite being interleaved with constraint
  propagation, and the use of heuristics, the
  efficiency of search depends critically of the
  first choices done, namely the values assigned to
  the first variables selected.
• Backtracking chronologically, these values may
  only change when the values of the remaining k
  variables are fully considered (after some O(2k)
  time in the worst case). Hence, alternatives
  have been proposed to pure depth first search
  with chronological backtracking, namely
• Intelligent backtracking,
• Iterative broadening,
• Limited discrepancy and
• Incremental time-bound search.

53
Alternatives to Pure Backtracking

• In chronological backtracking, when the
  enumeration of a variable fails, backtracking is
  performed on the variable that immediately
  preceded it, even if this variable is not to
  blame for the failure.
• Various techniques for inteligent backtracking,
  or dependency directed search, aim at identifying
  the causes of the failure and backtrack directly
  to the first variable that participates in the
  failure.
• Some variants of intelligent backtracking are
• Backjumping
• Backchecking and
• Backmarking .

54
Intelligent Backtracking

• Backjumping
• Failing the labeling of a variable, all variables
  that cause the failure of each of the values are
  analysed, and the highest of the least
  variables is backtracked

• In the example, variable Q6, could not be
  labeled, and backtracking is performed on Q4, the
  highest of the least variables involved in the
  failure of Q6.
• All positions of Q6 are, in fact, incompatible
  with the value of some variable lower than Q4.

55
Intelligent Backtracking

• Backchecking and Backmarking
• These techniques may be useful when the testing
  of constraints on different variables is very
  costly. The key idea is to memorise previous
  conflicts, in order to avoid repeating them.
• In backchecking, only the assignments that caused
  conflicts are memorised.
• Em backmarking the assignments that did not cause
  conflicts are also memorised.
• The use of these techniques with constraint
  propagation is usually not very effective (with a
  possible exception of SAT solvers, with nogood
  clause learning), since propagation antecipates
  the conflicts, somehow avoiding irrelevant
  backtracking.

56
Iterative Broadening

• In iterative broadening it is assigned a limit b,
  to the number of times that a node is visited
  (both the initial visit and those by
  backtracking), i.e. the number of values that may
  be chosen for a variable. If this value is
  exceeded, the node and its successors are not
  explored any further.

• In the example, assuming b 2, the search space
  prunned is shadowed.

• Of course, if the search fails for a given b,
  this value is iteratively increased, hence the
  iterative broadening qualification.

57
Limited discrepancy

• Limited discrepancy assumes that the value choice
  heuristic may only fail a (small) number of
  times. It directs the search for the regions
  where solutions more likely lie, by limiting to
  some number d the number of times that the
  suggestion made by the heuristic is not taken
  further.

• In the example, assuming heuristic options at the
  left and d3 the search space prunned is shadowed.

• Again, if the search fails, d may be incremented
  and the search space is increasingly incremented.

58
Incremental Time Bounded Search

• In ITBS, the goal is similar to iterative
  broadening or limited discrepancy, but
  implemented differently.
• Once chosen the values of the first k variables,
  for each label X1-v1,..., Xk-vk search is
  allowed for a given time T.
• If no solution is found, another labeling is
  tested. Of course, if the search fails for a
  certain value of T, this may be increased
  incrementally in the next iterations,
  guaranteeing that the search space is also
  increassing iteratively.
• In all these algorithms (iterative broadening,
  limited discrepancy and incremental duration)
  parts of the search space may be revisited.
  Nevertheless, the worst-case time complexity of
  the algorithms is not worsened.

59
Incremental Time Bounded Search

• For example, in the case of incremental
  time-bound search if the successive and failed
  iterations increase the time limit by some factor
  a, i.e. Tj1 ?Tj, the iterations will last
• T1 T2 ... Tj
• T ( 1 a a2 ... aj-1)
• T(1 - aj)/(1- a) ? T aj
• If a solution is found in the iteration j1, then

• the time spent in the previous iterations is
  Taj.
• iteration j1 lasts for Taj and, in average, the
  solution is found in half this time.
• Hence, the wasted time is of the same magnitude
  of the useful time spent in the search (in
  iteration j1).
