Forced reconnection studies in the MAST spherical tokamak

1
1/14

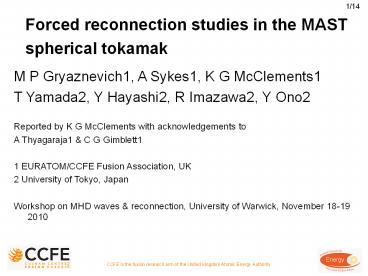

Forced reconnection studies in the MAST spherical
tokamak
M P Gryaznevich1, A Sykes1, K G McClements1 T
Yamada2, Y Hayashi2, R Imazawa2, Y Ono2 Reported
by K G McClements with acknowledgements to A
Thyagaraja1 C G Gimblett1 1 EURATOM/CCFE
Fusion Association, UK 2 University of Tokyo,
Japan Workshop on MHD waves reconnection,
University of Warwick, November 18-19 2010
CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
2
2/14
Introduction

• Magnetic reconnection can be studied in
  laboratory experiments under conditions
  approximating those of space plasmas including
  solar corona
• Dedicated experiments include TS-3/4 at Tokyo
  University1 MRX at Princeton2
• Reconnection can also be studied in magnetic
  fusion experiments, such as Mega Ampère Spherical
  Tokamak (MAST) at Culham ? higher magnetic field,
  stronger heating more detailed diagnostics than
  those available in dedicated experiments
• Reconnection can occur spontaneously in tokamak
  plasmas due to MHD instabilities, leading to
  sawtooth oscillations magnetic island formation
• I will present experimental signatures of forced
  reconnection that occurs in MAST during one
  particular method of plasma start-up

• ? merging-compression

1 Ono et al. Phys. Rev. Lett. 76, 3328 (1996)
2 Hsu et al. Phys. Rev. Lett. 84, 3859 (2000)
CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
3
3/14
MAST spherical tokamak (ST)

• Unlike conventional tokamaks, aspect ratio R/a
  1 in STs
• In MAST R ? 0.85 m, a ? 0.65 m
• Current in centre rod external coils produces
  toroidal B field ? 5 kG
• Current in plasma (produced by combination of
  inductive non-inductive methods) 1.45 MA
• poloidal B at plasma edge 4 kG

R
a

• Electron ion temperatures in plasma core 106
  - 107 K (? 0.1-1 keV)
• Particle density (1018 5?1019 m-3) gtgt solar
  coronal values, but ? 0.01 is
  comparable
• Ions mostly deuterium (mi 2mp, mi /me 3675)

CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
4
4/14
Merging/compression start-up in MAST

• MAST shot 15929 two plasma rings, inductively
  formed around P3 in-vessel coils (t2.0ms), merge
  (t3.0ms), eventually produce plasma current of
  up to 0.45 MA (t6.6ms)
• Right-hand frames show same images but with
  closed poloidal magnetic flux contours superposed

• reconnection of poloidal flux occurs in midplane
• accompanied by rapid heating of ions electrons,
  with some evidence of ion acceleration
• toroidal (guide) field unaffected by reconnection


CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
5
5/14
Reconnection in TS-3, TS-4 1

• Rise in ion temperature found to increase
  approximately as B2 where B is initial magnetic
  field ? conversion of field energy to thermal
  energy
• In these cases toroidal field reverses at X-line
  ? no strong guide field
• No electron temperature measurements

1 Ono et al. Phys. Rev. Lett. 76, 3328 (1996)
CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
6
6/14
Temperature evolution in MAST

• No evidence of super-thermal electrons, from
  either Thomson scattering or hard X-ray
  diagnostics

• Te increases from 105 K to around 5?106 K while
  Ti rises to 1.3 ?107 K in 10ms (caveat Ti
  measurements based on neutral particle analyser
  data, which may have been affected by fast ions)
• In another merging-compression shot Te gt 107 K
  was measured

Imazawa et al. to be submitted to Phys. Rev.
Lett.
CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
7
7/14
2D Te profiles in MAST
Hollow case
Te (eV) 200
Peaked case
Yag _at_ 8 ms
Yag _at_ 9 ms
Yag _at_ 10 ms
Yag _at_ 11 ms
z (m)
0
R (m)

• 2D Thomson scattering maps of Te show centrally
  peaked hollow profiles
• in latter cases central
  peak may also be present

CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
8
8/14
High-frequency instabilities in MAST

• Instabilities in Alfvén frequency range ?A cA/R
  2??102 kHz present during after reconnection
  ? cf. Alfvén eigenmodes excited by super-
  Alfvénic beam ions in tokamaks - but,
  no beam injection occurs during
  merging-compression in MAST
• Frequency-sweeping modes also observed seen in
  MAST only when fast ions are present
• evidence that reconnection is accelerating ions
  to E 102 keV
• in this case Alfvénic instabilities could be
  producing fast ions rather than vice versa
• Instabilities in lower hybrid range
  (?i?e)1/2 2??200 MHz also observed during
  reconnection

CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
9
9/14
Filaments in MAST

• Filamentary structures can be seen during merging
  compression in background- subtracted optical
  images
• These are observed following spikes in
  line-integrated density, implying radial ejection
  of plasma following reconnection
• evidence of turbulence in post-reconnection
  plasma?

CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
10
10/14
Reconnection length time scales (1)

• Both electrons ions strongly heated during
  merging compression in MAST, but at unequal
  rates generally ions are heated more rapidly
• results cannot be explained by MHD alone
• Some estimates of length time scales
• Alfvén timescale ?A 2?/?A 1?s
• Thickness of current sheet (based on 2D Te
  profiles) 2 cm
• Identifying this as reconnection length scale,
  assuming Spitzer resistivity setting Te equal
  to pre-reconnection values 105 K (? ? 4?10-5
  ohm m)
• ? resistive timescale ?r 10?s 10?A
• Ion skin depth c/?pi 14 cm, electron skin depth
  c/?pe 2 mm,
• ion Larmor radius 1 mm, electron Larmor radius
  0.01 mm
• electron inertia finite Larmor radius effects
  negligible, but Hall term cannot be neglected in
  induction equation
• two-fluid or kinetic analysis of reconnection
  process is necessary

CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
11
11/14
Reconnection length time scales (2)

• Based on rate at which plasma rings approach each
  other, assuming Spitzer resistivity with Te105
  K, magnetic Reynolds number is of order
• (NB Rm ltlt Lundquist number since inflow velocity
  ltlt Alfvén speed)
• highly dissipative plasma
• Post-reconnection electron-ion collisional energy
  equilibration time ?E tens of
  ms gtgt ?r , but comparable to actual equilibration
  time (?E gtgt ?r also found by Hsu et
  al. in MRX, in which there is no guide field)

CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
12
12/14
Ion electron heating

• Neglecting radiative losses, electron ion
  energy equations are
• q heat flux P stress tensor ?e electron
  collision time
• Temperature evolution cannot be explained by
  Ohmic term (?j2) since this only heats electrons
  (measurements indicate that ions heat up first)
• If mechanism were found for heating ions alone,
  rise in Te could be largely accounted for by
  equilibration term (? Ti -Te)
• Possible ion heating mechanisms
• damping of turbulent ion flows associated with
  magnetic fluctuations proposed by Haas
  Thyagaraja1 Gimblett2 as explanations of Ti gtTe
  in reverse field pinches

1 Haas Thyagaraja Culham Report CLM-P 606
(1980)
2
Gimblett Europhys. Lett. 11, 541 (1990)
CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
13
13/14
Buneman instability

• 3rd possibility heating due to turbulence driven
  by two-stream (Buneman) instability1
• Ampères law in reconnecting region
• ?, ? - toroidal poloidal components
• B-field mainly toroidal, so electron-ion drift
  parallel to B is
• using B? ? 1 kG, n ? 5?1018 m-3, ?Z ? 0.01 m
  (from 2D Te profiles)
• Threshold drift for instability is ? (kTe /me)1/2
  ? 106 ms-1 if Te 105 K
• Conditions for Buneman instability may exist in
  pre-reconnection plasma
• Maximum growth rate at frequencies comparable to
  that of observed wave activity in lower hybrid
  range
• Instability saturates when (kTe/me)1/2 ? initial
  drift ? Te,sat ? 6?106 K, which is close to
  measured values
• However, Buneman instability expected to heat
  mainly electrons cannot explain why rise in Ti
  precedes that in Te

1 Lampe et al. Phys. Fluids 17, 428 (1974)
CCFE is the fusion research arm of the United
Kingdom Atomic Energy Authority
14
14/14
Summary

• Merging-compression method of start-up in MAST
  spherical tokamak provides opportunity to study
  reconnection in high temperature plasma with
  strong guide field
• Information available on Ti, Te, bulk plasma
  motions fast particles
• Reconnection associated with rapid heating of
  ions (on slightly longer timescale) electrons
  Te often has hollow profile
• High frequency instabilities filamentary
  structures observed during following
  reconnection, suggesting presence of fast ions
  turbulence
• Detailed theoretical model of reconnection during
  merging-compression in MAST yet to be worked out
  any such model would need to include two-fluid (
  possibly kinetic) effects
• Preliminary analysis suggests that ion electron
  heating could be due to turbulence /or streaming
  instabilities, but there any many unresolved
  issues, e.g. origin of hollow Te profiles,
  filaments ion acceleration
• Is this telling us anything useful about
  reconnection in solar flares?
