Scanning

1

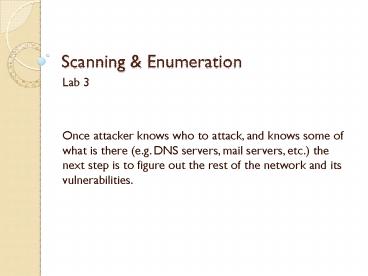

Scanning Enumeration

• Lab 3
• Once attacker knows who to attack, and knows some
  of what is there (e.g. DNS servers, mail servers,
  etc.) the next step is to figure out the rest of
  the network and its vulnerabilities.

2
Network Scanning and Enumeration

• The process of collecting information about
  computers (assets) available on a network by
  either by
• listening to network traffic, or
• probing the network by sending traffic and
  observing what traffic is returned as a result.
• E.g. scan looking for IP addresses (ping)
• Once you figure out what is there, then you can
  attack it appropriately
• Scan for ports to see what services are
  available, and then apply appropriate exploits
• Scan for user names and passwords, unused
  accounts, etc.

3
Port and Vulnerability Scanning

• Once you know a device is present, what are its
  vulnerabilities?
• Apply some programs to check all ports, looking
  for open ports
• Some services running on certain ports have known
  vulnerabilities
• http//www.faqs.org/faqs/computer-security/most-co
  mmon-qs/section-21.html
• http//en.wikipedia.org/wiki/Portscanning
• Or you can apply some programs that specifically
  look for vulnerabilities (combo of network, port
  and vulnerability scan)

4
Scanning Programs

• Tools used to identify what computers are active
  on a network, and which ports and services are
  available on each computer.
• Verify which IP addresses are active on a network

• ping sweep
• Determine what services are available from each
  system
• port scan
• Note port scanning may be illegal in some
  states
• Examples
• nmap (http//nmap.org/)
• unicornscan (http//www.unicornscan.org/)
• superscan (http//www.snapfiles.com/get/superscan.
  html)
• nessus (http//www.nessus.org/nessus/)
• fping (http//fping.sourceforge.net/), hping
  (http//www.hping.org/)

5
Caveat tools have their own footprints - but not
always

• While Nmap attempts to produce accurate results,
  keep in mind that all of its insights are based
  on packets returned by the target machines (or
  firewalls in front of them). Such hosts may be
  untrustworthy and send responses intended to
  confuse or mislead Nmap.
• Much more common are non-RFC-compliant hosts
  that do not respond as they should to Nmap
  probes. FIN, NULL, and Xmas scans are
  particularly susceptible to this problem. Such
  issues are specific to certain scan types and so
  are discussed in the individual scan type
  entries.
• Truly advanced Nmap users need not limit
  themselves to the canned scan types offered. The
  --scanflags option allows you to design your own
  scan by specifying arbitrary TCP flags. Let your
  creative juices flow, while evading intrusion
  detection systems whose vendors simply paged
  through the Nmap man page adding specific rules!

6
Different kinds of scans explained

• http//nmap.org/book/man-port-scanning-techniques.
  html

7
Internet Control Message Protocol (ICMP)

• Allow servers to communicate with each other and
  report errors to ensure that network paths are
  working properly.
• The PING utility is based on the use of ICMP echo
  requests and echo replies.
• PING is used to verify whether another network
  host is accessible.

8
UDP Scanning (UDP Protocol)

• Sending UDP packets to a target host to determine
  what UDP ports are open.
• A sequence of packets is sent to a series of
  different UDP port numbers to test the
  availability of each port.
• If the UDP port is OPEN on the target host, no
  reply is sent.
• If the UDP port is NOT OPEN, an ICMP Destination
  Unreachable packet is sent in response to the
  probe.

9
TCP Scanning (TCP Protocol)

• Based on various features of TCP.
• Some of the features used for scanning and
  enumeration include
• Opening a TCP connection (3-way handshake)
• Closing a TCP connection
• TCP connection reset
• TCP null scan

10
TCP 3-way handshake

• Used to establish a TCP connection.
• Packet sequence for 3-way handshake
• SYN segment - requests a connection (e.g., with a
  server)
• SYN-ACK - acknowledges the (client's) SYN
  information and provides the (server's)
  information for establishing the connection.
• ACK - acknowledges the (server's) information
• This process can be used to determine which TCP
  ports are open on a server.

11
Closing a TCP Connection

• Uses a modified 3-way handshake
• FIN - indicates that either host (e.g., Host B)
  has finished sending data and is ready to close
  the connection.
• ACK
• Host A acknowledges receipt of the FIN.
• Connection is "half-closed" at this point.
• Host B transmits no more data.
• FIN
• Host A indicates itis now ready to close the
  connection.
• ACK
• Host B acknowledge's A's FIN.
• The connection is closed when Host A receives the
  final ACK from Host B.

12
TCP Connection Reset

• Allows an application to disconnect from a
  connection in abnormal circumstances.
• Either host initiates by sending a TCP segment
  with the RST bit set.
• Receiving host immediately aborts the connection
  and informs the application program that a reset
  has occurred.

13
Some Types of TCP Port Scans

• SYN scan
• Send SYN packet
• If port closed, target responds with RST/ACK
• If port open, target responds with SYN/ACK
• Sender sends RST/ACK to close connection
• Connect scan
• Similar to SYN scan completes 3-way handshake
• Connection is established
• NULL scan
• Send packet will all flags OFF
• If destination port open, no response sent
• If destination port closed, RST packet sent

14
Enumeration

• The process of extracting information from a
  network
• Resources or shares available on the network
• Determine OS using fingerprinting/scanning
• User names or groups assigned on the network
• The last time a user logged on as well as his/her
  password
• http//en.wikipedia.org/wiki/Network_Scanner
• Tools
• NBTscan (http//www.inetcat.net/software/nbtscan.
  html)
• NetScanTools Pro (http//www.netscantools.com/ )
• Hyena (http//www.systemtools.com/hyena/?sourcego
  ogle3D)
• Finger (http//en.wikipedia.org/wiki/Finger_proto
  col)
• IKE-Scan (http//www.nta-monitor.com/tools/ike-sca
  n/ )

15
Vulnerability Scanners

• Programs designed to search for and map systems
  to look for weaknesses in an application,
  computer or network.
• http//en.wikipedia.org/wiki/Vulnerability_scanner

• http//en.wikipedia.org/wiki/Web_Application_Secur
  ity_Scanner
• Tools
• nessus (http//www.nessus.org/nessus/ )
• SAINT (http//www.eeye.com/html/Products/Retina/in
  dex.html)
• Microsoft Baseline Security Analyzer
  (http//technet.microsoft.com/en-us/security/cc18
  4924.aspx)
