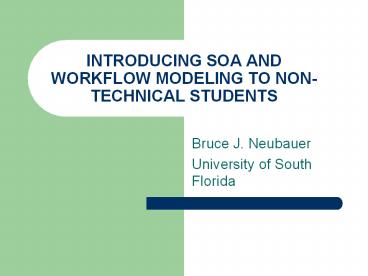

INTRODUCING SOA AND WORKFLOW MODELING TO
NON-TECHNICAL STUDENTS

• Bruce J. Neubauer
• University of South Florida

2
Paper is intended to be a contribution to
Pedagogy and to MIS

• Generalist managers need to understand some
  implications of software engineering.
• Programmers increasingly have reason to
  understand business processes.
• Convergent engineering is the concurrent design
  of software applications and the business
  processes supported. See David Taylor.

3
Familiar Benefits of Modular Design of Software
Applications

• Divide and conquer approach to complexity
• Facilitates coordination of team members
• Project easier to document and comprehend
• Opportunities for code reuse
• Application easier to maintain

4
Traditional Distributed Applications

• Remote procedure calls across local networks
• Calls to DBMSs within organizations.
• CORBA
• DCOM

5
CORBA Standards

• Source Wikipedia.com

6
Web Services Standards

• Source Wikipedia.com

7
Web Services Standards

• Built on Internet protocols
• Facilitate creation of distributed applications
  for the Internet and intranets
• Generally do not hold state
• Tend to be slow because of overhead required by
  use of SOAP and XML
• Used to implement Service Oriented Architectures

8
Service-oriented Architecture (SOA)

• Distributed systems in which some of the modules
  of software are Web Services
• Involves the concept of SERVICES, that is not
  necessarily intuitive to either programmers or to
  business analysts

9
Service-oriented Architecture (SOA)

• As I understand it, the design goal is not only
  to design the software code, but to integrate the
  design of business processes into the design of
  the software code.
• Blurs the distinction between (business) analysis
  and design
• The goal is convergent engineering as envisioned
  by David Taylor

10

• Business Process Modeling Language (BPML) is a
  meta-language for the modeling of business
  processes, just as XML is a meta-language for the
  modeling of business data. BPML was a proposed
  language, that has been dropped in favor of
  BPEL4WS.
• Source Wikipedia.com

11
Business Process Execution Language (BPEL)

• BPEL's focus on modern business processes,
• BPEL uses Web services
• BPEL is an orchestration language
• Supports programming in the large

12
Orchestration and Choreography
13
Workflow Design
14
What software permits visual modeling of business
processes and outputs BPEL? AquaLogic (formerly
FuegoBPM)
15
(No Transcript)
16
The Interface is Intuitive
17

• Business Process Change A Manager's Guide to
  Improving, Redesigning, and Automating Processes
  (2002)

18
Simple Business Process Model
19
(No Transcript)
20
Convergent Engineering

• We are designing both business processes and the
  software that automates processes
• We define Roles, Rules and Activities
• We identify unconditional and conditional paths
  between activities
• We identify sub processes to address complexity

21
Convergent Design

• Who are the actors (roles) in this business
  process?
• What activies must be performed in what order?

• Under what circumstances must conditional paths
  be possible?
• What might we outsource using Web Services?

22
Web Services and SOA

• An activity can be implemented as a Web service
  and outsourced beyond the focal organization.
• A Web service may be used to tap into part of the
  functionality of a legacy system, within or
  outside of a focal organization.

23
Business Process Using Multiple Web Services

• Verify customers credit
• Verify history of trade in vehicle
• Get three finance offers
• Calculate license plate fee
• Notify insurance company

24
Conclusions

• There is something important here.
• BizTalk Server, orchestration, choreography of
  Web Services, convergent engineering
• Service Oriented Architecture
• On my first effort to teach this, I found the to
  actually do the design of business processes.
• The BEA software got in the way of learning.
