Overview of SPM2

1

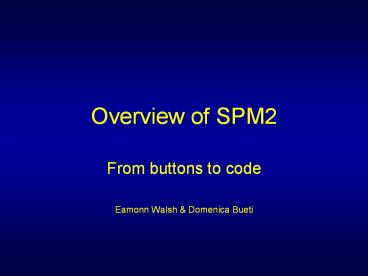

Overview of SPM2

• From buttons to code
• Eamonn Walsh Domenica Bueti

2
SPM Statistical Parametric Mapping

• SPM examines every voxel location across all
  images and computes a parametric map
• Data reduction condensing information from a
  number of individuals in a statistically
  meaningful way

3
Data transformations
Statistical parametric map (SPM)
Design matrix
Image time-series
Kernel
Realignment
Smoothing
General linear model
Gaussian field theory
Statistical inference
Normalisation
p lt0.05
Template
Parameter estimates
4
Spatial Preprocessing
Model Specification and Parameter Estimation
5
(No Transcript)
6
(No Transcript)
7
Spatial Preprocessing
8
Spatial Preprocessing - Realign

• Aligning hundreds of 3D brain volumes per single
  subject
• To create a mean image

9
Spatial Preprocessing - Coregister

• Matching the functional scan to the structural
  scan for the same individual

10
Spatial Preprocessing Slice Timing

• Take first or middle slice as reference slice
• Shift all other slices in time to match this
  reference slice

11
Spatial Preprocessing - Normalise

• The same voxels in different brains are aligned
  to represent the same anatomical location.
• Template

12
Spatial Preprocessing - Smooth

• Blur the images prior to statistical analysis
• FWHM Full width half maximum

13
Spatial Preprocessing - Segment

• Images are segmented into grey and white matter
  maps

14

• Image File fm00223_004.img
• Realigned rfm00223_004.img
• Realigned, Coregistered,, rrfm00223_004.img
• Realigned, Coregistered, Normalised,
  wrrfm00223_004.img
• Realigned, Coregistered, Normalised, Smoothed
  swrrfm00223_004.img

15
Spatial Preprocessing
16
SPM Demo

• Spatial Preprocessing
• Guided Tour
