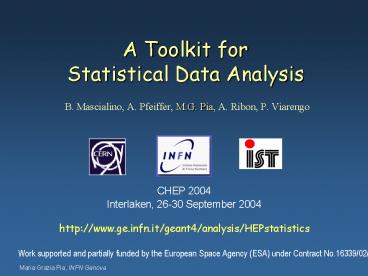

A Toolkit for Statistical Data Analysis

1
A Toolkit for Statistical Data Analysis

• B. Mascialino, A. Pfeiffer, M.G. Pia, A. Ribon,
  P. Viarengo

CHEP 2004 Interlaken, 26-30 September 2004
http//www.ge.infn.it/geant4/analysis/HEPstatistic
s
Work supported and partially funded by the
European Space Agency (ESA) under Contract
No.16339/02/NL/FM
2
The project
A project to develop a statistical analysis
system
Provide tools for the statistical comparison of
distributions (Goodness-of Fit Tests)

• Regression testing
• Throughout the software life-cycle
• Online DAQ
• Monitoring detector behaviour w.r.t. a reference
• Simulation validation
• Comparison with experimental data
• Reconstruction
• Comparison of reconstructed vs. expected
  distributions
• Physics analysis
• Comparisons of experimental distributions (ATLAS
  vs. CMS Higgs?)
• Comparison with theoretical distributions (data
  vs. Standard Model)

Typical use cases in HEP
3
Software tools

• Commercial products used by professional
  statisticians
• SPSS, NCSS...
• In HEP
• A lot of activity
• workshops/conferences (CERN, Durham, SLAC etc.)
• books (F. James et al., L. Lyons, R. Barlow etc.)
• sophisticated statistical algorithms applied in
  various data analyses
• ...but, in spite of the relevant role played by
  statistics in HEP, very limited availability of
  software tools for statistics in our field
• and in open-source software in general

4
We need it, lets do the work ourselves...
A project to develop an open-source software
system for statistical analysis
Provide tools for the statistical comparison of
distributions Create a hub to aggregate
expertise and collaborative contributions from
scientists interested in statistical methods
5
Vision the basics

• Rigorous software process

6
Architectural guidelines

• The project adopts a solid architectural approach
• to offer the functionality and the quality needed
  by the users
• to be maintainable over a large time scale
• to be extensible, to accommodate future
  evolutions of the requirements
• Component-based architecture
• to facilitate re-use and integration in diverse
  frameworks
• Dependencies
• adopt a standard (AIDA) for the user layer
• no dependence on any specific analysis tool
• Python
• the glue for interactivity
• The approach adopted is compatible with the
  recommendations of the LCG Architecture
  Blueprint Report

7
Software process

• United Software Development Process, specifically
  tailored to the project
• practical guidance and tools from the RUP
• both rigorous and lightweight
• mapping onto ISO 15504
• significant experience gained in the group from
  other projects
• Incremental and iterative life-cycle model

8
User Requirements

• User requirements elicited, analysed and formally
  specified
• Functional (capability) and not-functional
  (constraint) requirements
• User Requirements Document available from the web
  site

Requirement traceability

• Requirements
• Design
• Implementation
• Test test results
• Documentation

9
(No Transcript)
10
(No Transcript)
11

• Simple user layer
• Shields the user from the complexity of the
  underlying algorithms and design
• Only deal with AIDA objects and choice of
  comparison algorithm

12
GoF algorithms

• Algorithms for binned distributions
• Anderson-Darling Test
• Chi-squared Test
• Fisz-Cramer-von Mises Test
• Tiku Test (Cramer-von Mises test in chi-squared
  approximation)
• Algorithms for unbinned distributions
• Anderson-Darling Test
• Fisz-Cramer-von Mises Test
• Goodman Test (Kolmogorov-Smirnov test in
  chi-squared approximation)
• Kolmogorov-Smirnov Test
• Kuiper Test
• Tiku test (Cramer-von Mises test in chi-squared
  approximation)

13
Chi-squared test

• Applies to binned distributions
• It can be useful also in case of unbinned
  distributions, but the data must be grouped into
  classes
• Cannot be applied if the counting of the
  theoretical frequencies in each class is lt 5
• When this is not the case, one could try to unify
  contiguous classes until the minimum theoretical
  frequency is reached

14
Tests based on a supremum statistics
Unbinned distributions

• Kolmogorov-Smirnov Test

• Goodman approximation of KS Test

• Kuiper Test

Dmn
15
Tests containing a weighting function
Unbinned distributions

• Cramer-von Mises Test

• Anderson-Darling Test

Binned distributions

• Fisz-Cramer-von Mises Test

• k-sample Anderson-Darling Test

16
Comparative evaluation of tests
Anderson-Darling High Sensitive to tails
c2 Low General
Fisz-Cramer-von Mises High Symmetric, right-skewed distributions
Goodman Medium Approximation of K-S to c2 test statistics
Kolmogorov-Smirnov Medium Derives from Kolmogorov statistics
Kuiper Medium Sensitive to tails and median
Tiku High Converts CvM statistics to a c2
More about a comparative evaluation of tests in
the User Documentation on our web Topic still
subject to research activity in the domain of
statistics
17
Power of tests
The power of a test is the probability of
rejecting the null hypothesis correctly
In terms of power

• ?2 loses information in a test for unbinned
  distribution by grouping the data into cells
• Kac, Kiefer and Wolfowitz (1955) showed that
  Kolmogorov-Smirnov test requires n4/5
  observations compared to n observations for ?2
  to attain the same power
• Cramer-von Mises and Anderson-Darling statistics
  are expected to be superior to Kolmogorov-Smirnov
  s, since they make a comparison of the two
  distributions all along the range of x, rather
  than looking for a marked difference at one point

Talk at IEEE NSS, Rome, 16-22 October 2004
paper submitted for publication November 2004
18
(No Transcript)
19
Unit test ?2
Test from PICCOLO BOOK (STATISTICS - page 711)
Exact p-value 0.200758 Expected p-value
0.200757
?2 test-statistics 15.8 Expected ?2 15.8
Binned data
Test from CRAMER BOOK (MATHEMATICAL METHODS OF
STATISTICS - page 447)
Exact p-value 0 Expected p-value 0
?2 test-statistics 123.203 Expected ?2 123.203
20
Unit test K-S Goodman
Test from PICCOLO BOOK (STATISTICS - page 711)
?2 test-statistics 3.9 Expected ?2 3.9
Exact p-value0.140974 Expected p-value0.140991
Test from LANDENNA BOOK (NONPARAMETRIC TESTS
BASED ON FREQUENCIES - page 287)
?2 test-statistics 1.5 Expected ?2 1.5
Exact p-value0.472367 Expected p-value0.472367
21
Unit test Kolmogorov-Smirnov
Test from LANDENNA BOOK (NONPARAMETRIC TESTS
BASED ON FREQUENCIES - page 318-325)
D test-statistics 0.65 Expected D 0.65
Cumulative
Exact p-value 2 10-19 Expected p-value 8 10-19
this is just a sample of the test process and
results!
22
GPL License
Feedback from users is welcome!
23
User Documentation

• Download
• Installation
• User Guide
• Statistics Reference Guide

24
Example of application results
Validation of Geant4 physics models w.r.t. NIST
reference
ESA Bepi Colombo mission to Mercury Test beam
at Bessy
Kolmogorov-Smirnov Test
Data range Distance p-value
-84 ? -60 mm 0.38 0.23
-59 ? -48 mm 0.27 0.90
-47 ? 47 mm 0.43 0.19
48 ? 59 mm 0.30 0.82
60 ? 84 mm 0.40 0.10
Dosimetry at IST Cancer Inst. Monte Carlo and
experimental data
Intervallo distanza Distanza Livello di significatività
-84 ? -60 mm 0.385 0.23
-59 ? -48 mm 0.27 0.90
-47 ? 47 mm 0.43 0.19
48 ? 59 mm 0.30 0.82
60 ? 84 mm 0.40 0.10
25
A toolkit for modeling multi-parametric fit
problems

• F. Fabozzi, L. Lista
• INFN Napoli

• Initially developed while rewriting a FORTRAN
  fitter for BaBar analysis
• Simultaneous estimate of
• B(B? ?J/???) / B(B? ?J/?K?)
• direct CP asymmetry
• More control on the code was needed to justify a
  bias appeared in the original fitter

New components included in the Statistical
Toolkit Toy Monte Carlo, PDF modelling, Max
Likelihood Fits Architecture open to extension
and evolution
26
Feel free to contact us!
27
Conclusions

• A project to develop an open source, general
  purpose software toolkit for statistical data
  analysis is in progress
• to provide a product of common interest to user
  communities
• Rigorous software process
• to contribute to the quality of the product
• Component-based architecture, OO methods
  generic programming
• to ensure openness to evolution, maintainability,
  ease of use
• GoF component
• Component for modeling multi-parametric fit
  problems
• Software released and application results
  available
• toolkit in use for Geant4 physics validation and
  in experiments
• paper published on IEEE Trans. Nucl. Sci., 3
  October 2004

Thanks to Fred James (CERN) and Louis Lyons
(Oxford) for many useful suggestions,
discussions, encouragement..
