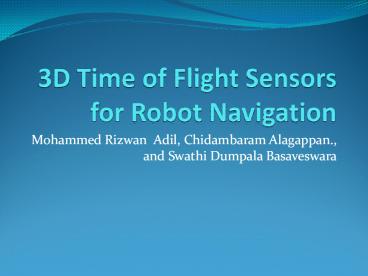

3D Time of Flight Sensors for Robot Navigation

• Mohammed Rizwan Adil, Chidambaram Alagappan.,
  and Swathi Dumpala Basaveswara

2
Robots

• Gaining immense importance
• Presence of robots being felt in all walks of
  life.
• Image detection has become a prerequisite for
  effective navigation.
• The robot should be able to extract all the
  necessary information from its sensors.

3
Image detection

• Conventional 2D images detect brightness but
  dont detect depth.
• Therefore 3D Time of Flight Cameras are being
  used.
• The depth information is depicted using color
  codes.
• 3D ToF cameras combine the accurate distance
  measurements and camera based system.
• A final discussion about PMD and the psuedo four
  phase shift algorithm

4
Introduction

• Four building blocks of navigation
• 1. perception-robot must be able to interpret
  meaningful data using the sensors
• 2. localization- the robot must be able to
  determine its position with regard to the
  environment
• 3. cognition- the robot must be able to determine
  its path
• 4. motion control- the mechanical traversal along
  the planned path

5
Simultaneous Localization and Mapping (SLAM)
3.

• In most cases, the processes of exploring an
  unknown environment through maps and determining
  the relative position are performed
  simultaneously through a process known as
  Simultaneous Localization and Mapping

6
Several methods to obtainb 3D images

• An image from stereo vision camera which provides
  3D details of an object can be fused with the
  measurements of a 2D laser range finder.
• Stereo vision requires complicated algorithms
  and powerful sensors to construct its occupancy
  grid and despite all these, it is prone to error

7
SfM Structure from Motion

• Works assuming that the object is going to move.
• Trajectories of points are used to estimate
  dimensions.
• Technique will not work if object is dynamic(like
  flowing water)

8
Stereo Vision v/s Kinetic depth technique

• In Stereo Vision, the image and the data from the
  laser range finders corresponding to the same
  time has to be overlapped to obtain a 3D vision.
• In Kinetic depth technique, the image of the same
  object has to be taken at two different time
  intervals- either ways, both techniques require
  data fusion which requires computing power.

9
Laser Range Scanners

• Laser Range Scanner which works on the principle
  of calculating the distance from the observer to
  a particular point.
• Laser Range Scanners provide sparse data sets,
  use mechanical components and do not provide a 3D
  image with one image capture

10
ToF cameras

• The time of flight cameras combine the features
  of active range sensors and camera based
  approaches and provide a complex image which
  contains both the intensities and also the
  distances of each and every point.
• There is no fusion of data from two separate
  sources and the data is being gathered
  continuously

11
Principle behind the time of flight
cameras

• Points that are distant from the camera will take
  greater time to reach it.
• The distance to the object us calculated using
  properties of light and phase shift of modulation
  envelope of the light source.
• The phase and amplitude of the reflected light
  can be detected using various signal processing
  techniques. Usually, to get a high resolution CCD
  based sensors are employed

12
CMOS ToF camera

• CMOS chip based cameras appear most widely in
  the literature.

13

• CMOS sensors usually have 64x64 pixel array and
  are implemented on a single chip using ordinary,
  low cost CMOS process.
• It also needs to have ADC and also a mechanism
  to generate high speed modulation signals
• The main part of the sensor design is the unique
  pixel structure

14
Unique pixel structure
15

• The differential structure accumulates
  photogenerated charges in two collection nodes
  using two modulated gates.
• The gate modulation signals are synchronized with
  the light source, and hence depending on the
  phase of incoming light, one node collects more
  charges than the other.

16
Calculating the depth resolution
17
Resolution contd
18
Enhancement of Depth Images

• Optical noise existence, unmatched boundaries,
  and temporal inconsistency are the three critical
  problems which a ToF image suffers from.
• Techniques like Gaussian smoothing and quadratic
  Bezier curve are used for static 3D images
• However, for enhancement of dynamic images, we
  use newly designed joint bilateral filtering,
  color segmentation based boundary refinement, and
  motion estimation based temporal consistency.

19
Bilateral Filter

• Constructed using both color and depth
  information at the same time.
• After color segmenting a color image, we extract
  the color segment set to detect object
  boundaries.
• To minimize temporal depth flickering artifacts
  on stationary objects, we match previous and
  current frame color images.

20
Review of latest developments

• These cameras are able to provide registered
  dense depth and intense images, complete image
  acquisition and high frame rate, small and
  compact design.
• They dont need any mobile parts and have
  auto-illumination

21
(No Transcript)
22
(No Transcript)
23
Errors and Compensations for ToF cameras

• Systematic Errors
• 1. Depth Distortion
• 2. Integrated time related error
• 3. Built in pixel related errors
• 4. Amplitude related errors
• 5. Temperature related errors

24

• Non Systematic Errors
• 1. SNR
• 2. Multiple light reception
• 3. Light scattering
• 4. Motion blurring

25
Photonic Mixer Devices
26
PMD contd

• Photonic Mixer Devices are also based on ToF
  principle and can realize a 3D image without
  complex electronics similar to a CMOS device
• In a PMD, instead of a single laser beam (which
  would have to be scanned over the scene to obtain
  3D) the entire scene is illuminated with
  modulated light.

27
(No Transcript)
28
Pseudo-Four-Phase-Shift Algorithm for
PerformanceEnhancement of 3D-TOF Vision Systems
29

• Only two image captures instead of four are
  required to calculate the phase difference f.
• The frame rate of PMD TOF sensors is doubled
  without changing the integration time Tint .

30
