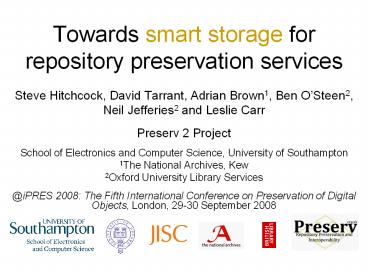

Towards smart storage for repository preservation services

1
Towards smart storage for repository preservation
services

• Steve Hitchcock, David Tarrant, Adrian Brown1,
  Ben OSteen2, Neil Jefferies2 and Leslie Carr
• Preserv 2 Project
• School of Electronics and Computer Science,
  University of Southampton
• 1The National Archives, Kew
• 2Oxford University Library Services
• _at_iPRES 2008 The Fifth International Conference
  on Preservation of Digital Objects, London, 29-30
  September 2008

2
Three-stage strategy for keeping your data safe

• Ability to move data freely, easily and instantly
• OAI, ORE, Atom
• Reliable, trusted large-scale storage
• Open Storage
• Risk profiling invoke a range of selectable
  services
• Smart storage

3
About institutional repositories

• IRs in flux
• Uncertainty in terms of target content -
  published papers, theses, research data, teaching
  materials - policy, rights, even locus of content
  and responsibility for long-term management.
• OAI-ORE (Object Reuse and Exchange) effectively
  frees the data from being captive to repository
  software.
• Commercial repository services, from
  software-specific services to digital library
  services or more general 'cloud' or network
  storage services.

• Set up by institutions of higher education and
  research to manage and disseminate their digital
  intellectual outputs.
• IRs are a special type of Web site, typically
  based on some repository software that presents a
  database of records pointing to the objects
  deposited.
• The Preserv 2 project is investigating the
  provision of preservation services for IRs.

Photo Flickr/cpikas
4
IRs are

• Open source repository softwares
• Open access content
• Open archives using OAI-PMH to share data with
  e.g. discovery services.
• Open repositories, using OAI-ORE enables the easy
  movement of data between different types of
  repository software

Photo Flickr/Rightee
5
A new openHow open storage supports
preservation services

• Open storage, large-scale storage devices based
  on open source software
• Open storage averts the need for a repository
  layer to access first-class objects these are
  objects that can be addressed directly
• In turn, these digital objects can be distributed
  and/or replicated over many open storage
  platforms.
• In turn, able to select storage with built-in
  preservation support
• Resilient storage platforms may be viable for
  preservation services aimed at multiple
  repositories
• E.g. Sun Microsystems STK5800 (codenamed
  Honeycomb)
• Google Repository

6
Smart storage

• Smart storage combines an underlying passive
  storage approach with the intelligence provided
  through services.
• The key to realising smart storage is to enable
  the services to communicate and share information
  with the digital content sources they may be
  acting on. This is done through machine-level
  application programming interfaces (APIs) and
  protocols.

7
APIs, interfaces and the Web architecture

• Major services on the Web, such as deploy their
  own simple, but different, APIs, e.g.
• Google Maps
• Within the repository community, SWORD (Simple
  Web-service Offering Repository Deposit)
• Open storage platforms such as Sun's STK5800 and
  the Amazon Simple Storage Service (S3)
• To take advantage of open storage, repositories
  have to be able to talk to these services through
  their APIs.

8
Smart storage example format services

• Preservation methods affecting formats can be
  classified in three stages (seamless flow)
• Format identification and characterization (which
  format?)
• Preservation planning and technology watch
  (format risk and implications)
• Preservation action, migration, etc. (what to do
  with the format)
• Format-based services tend to be ad hoc processes
  for which some tools are available
• E.g. PRONOM-DROID from The National Archives (UK)
• PRONOM is an online registry of technical
  information, such as file format signatures
• DROID is a downloadable file format
  identification tool that applies these
  signatures)
• These and other tools could be used in a more
  coordinated manner.

9
Smart storage DROID concept
10
Smart storage DROID scheduling/history

• Scheduling interface controls when a DROID
  classification needs to be performed.
• Preserv 2 has developed a scheduling service that
  uses the Darwin Calendar Server and iCalendar
  format.
• Provides a powerful scheduling service with many
  clients already available - Apple iCal, Mozilla
  Sunbird, and others - that can read and interpret
  the files so that past and future events can be
  reviewed.

11
Smart storage DROID OAI-PMH interface

• An OAI-PMH interface to open storage discovers
  the latest objects to have been deposited and
  which are ready for format classification.
• Could also be performed by simpler RSS or
  Atom-based methods.
• The interface has since been expanded to allow
  export of OAI-ORE resource maps in both RDF and
  Atom formats.

12
Smart storage DROID implementation

• E.g. iCal, Outlook, Sunbird

DROID
Scheduler
DROID-OAI harvester
Open storage
Schedule event
Calendar server
OAI-PMH
Repository
History
Is event done?
url, date
Messaging
Atom?
Web server HTTP Stores results of DROID events
User interface
Get results of event
Machine interface, API
Implemented
To be implemented
13

• Risk profiling
• The scheduler will invoke actions based on the
  results of scanning by DROID allied to
  decision-making tools that use intelligence from
  planning and technology watch tools, such as
• PRONOM,
• Plato preservation planning tool from the
  EC-funded Planets project,
• and others.

Photo Flickr/yourbartender
14
Summary smart storage in the storage scheme
Binary stream
File system need to store multiple streams with permissions
Content addressable adds content validation and object identifiers, metadata required to locate an object
Open adds error correction and recovery, places processing close to storage, solves some bandwidth problems
Smart opens up the close-to-storage approach for application development, transition to 'cloud' storage
How smart storage addresses current storage
issues see full paper
15
Storage can become smarter

• Openness, in its various forms, the ability to
  move data freely and easily, needs to be
  supplemented by decision-making that can be
  automated based on the supplied intelligence and
  information.
• In this way, open storage can become smarter.
• http//preserv.eprints.org/

Thanks to
