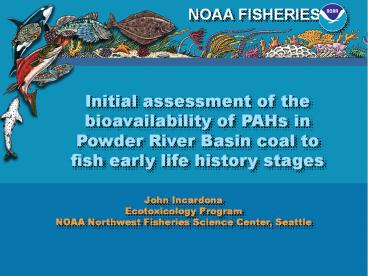

Initial assessment of the bioavailability of PAHs
in Powder River Basin coal to fish early life
history stages
John Incardona Ecotoxicology Program NOAA
Northwest Fisheries Science Center, Seattle
2
Fish embryos are sensitive indicators of PAH
bioavailability

• crude oil
• bunker fuel
• creosote
• coal tar in sediments
• diesel exhaust particles
• coal tar pavement sealants
• stormwater runoff
• coal and coal dust?

3
No fish species escapes PAH toxicity

• pink salmon (Oncorhynchus gorbuscha)
• Pacific herring (Clupea pallasi)
• Atlantic herring (Clupea harrengus)
• mummichog (Fundulus heteroclitus)
• Gulf killifish (Fundulus grandis)
• crimson-spotted rainbowfish (Melanotaenia
  fluviatilis)
• medaka (Oryzias latipes)
• zebrafish (Danio rerio)
• olive flounder
• Japanese sea perch
• bluefin tuna
• yellowfin tuna
• yellowtail amberjack
• red drum
• Atlantic haddock

4
Methodologies are tailored to specific PAH sources
5
(No Transcript)
6
The aryl hydrocarbon receptor pathway and
cytochrome P4501A induction
after Whitlock 1999, Annu Rev Pharmacol Toxicol
39103
7
Windsor Aguirre
8
Stage-specific toxicity of individual PAHs via
distinct mechanisms
pattern formation
1.25 hpf
AHR-independent cardiac dysfunction (via ion
channel blockade?), CYP1A protective
36 hpf
24 hpf
organogenesis
AHR-dependent cardiac dysfunction via inhibition
of cardiomyocyte proliferation, CYP1A protective
48 hpf
48 hpf
72 hpf
hatching
Systemic toxicity dependent on hepatic AHR and
CYP1A activity
96-120 hpf
120 hpf
feeding
9
3-ring PAH exposure phenocopies a cardiac
function mutant
crude oil
56 µM phenanthrene
silent heart (troponin T)
fluorene
naphthalene
dibenzothiophene
phenanthrene
GC-MS analysis of PAHs in embryos exposed to
crude oil
10
(No Transcript)
11
PAHs vary in potency of CYP1A induction
chrysene
benz(a)anthracene
pyrene
CYP1A IF
cyp1a QPCR (TaqMan)
12
Phenanthrene is toxic with minimal CYP1A induction
phenanthrene
solvent control
48 hpf
CrDI
OA
CYP1A MHC
13
Tricyclic PAHs cause bradycardia and AV
conduction block
heart rate (bpm)
ppm phenanthrene
14
Quantification of edema by pericardial area
crude oil dose response (?PAH)
15
Scoring edema presence by pulse
16
What we have tested so far

• Powder River Basin coal (Boardman Plant, Portland
  General Electric)
• Pulverized coal dust slurries (static exposures)
• Coal dust slurry filtrates (static)
• Coal chunk column (continuous flow)

17
Simultaneous exposure to either coal dust or
dissolved components only
agarose pore size 0.1-0.3 µm embedded embryos
exposed to diffusible dissolved PAH only
18
coal chunk column
