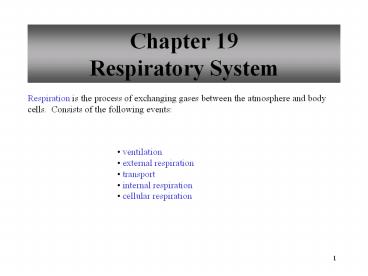

Chapter 19 Respiratory System

1
Chapter 19Respiratory System
Respiration is the process of exchanging gases
between the atmosphere and body cells. Consists
of the following events

• ventilation
• external respiration
• transport
• internal respiration
• cellular respiration

2
Two Main Divisions

• Upper Respiratory
• Consists of the nose and throat (pharynx)

• Lower Respiratory
• Consists of the larynx, trachea, bronchi and lungs

3
Organs of the Respiratory System
4
Organs of the Respiratory System
5
Upper Respiratory Tract
6
Mucous in Respiratory Tract
Cilia move mucus and trapped particles from the
nasal cavity to the pharynx
7
Nose

• External portion
• Composed of cartilage covered by skin
• Internal portion
• Nasal Cavity
• Large cavity in the skull inferior to the cranium
  and superior to the mouth

8
Nose

• Nasal Septum
• Vertical partition that divides the nasal cavity
• Anterior portion made of cartilage
• Posterior portion made of the vomer bone and the
  perpendicular plate of the ethmoid bone

9
Clinical Application Nose

• Rhinoplasty
• nose job
• Surgical procedure in which the external
  structures are altered
• Usually for cosmetic reasons
• Occasionally to repair fractures or deviated
  septum

• Septoplasty-
• Surgery to correct a deviated (crooked) septum
• Often done to correct breathing problems
  resulting from blockages
• Can also be cosmetic

10
Sinuses
Air-filled spaces in maxillary, frontal, ethmoid,
and sphenoid bones
11
Nose Physiology

• Interior specialized for 3 functions
• Air is warmed, moistened and filtered
• Olfactory stimuli received--only direct stimulus
  to the brain
• Large, resonating chamber helps produce speech
  sounds

12
Pharynx
13
Pharynx

• Funnel-shaped structure about 13 cm long--starts
  at the back of the nasal cavity and extends to
  the cricoid cartilage of the larynx
• 2 functions
• Passage for food and air
• Resonating chamber for speech sounds

14
Pharynx

• 3 parts of the pharynx
• Nasopharynx
• Posterior to the internal nasal cavity and
  extends to the plane of the soft palate
• Exchanges small amounts of air with the auditory
  (Eustachian) tubes
• Equalizes air pressure between atmospheric air
  and air pressure in the middle ear

15
Pharynx

• Oropharynx
• Posterior to the oral cavity
• Extends from the soft palate to the level of the
  hyoid bone
• Contains the opening from the mouth
• Common passageway for air, food and drink

16
Pharynx

• Laryngopharynx
• Extends from the hyoid bone level and becomes
  continuous with the esophagus

17
Larynx

• Short passageway that connects the pharynx with
  the trachea
• Along the midline of the neck between the C4
  (cervical 4) and C6 (cervical 6) vertebrae
• Contains thyroid cartilage, epiglottis, cricoid
  cartilage, and glottis

18
Larynx
19
Larynx

• Thyroid Cartilage
• 2 plates of cartilage that form the anterior wall
  of the larynx
• Typically larger in males
• Adams apple

20
Larynx

• Epiglottis
• Large leaf-shaped piece of cartilage lying on top
  of the larynx
• Stem attached to the thyroid cartilage
• Leaf moves up and down like a trap door
• Swallowing causes the larynx to move up, which
  causes the epiglottis to cover the glottis

21
Larynx

• Glottis
• Vocal folds and the space between the folds
• Voice Production
• Muscles contract, pull on the elastic ligaments,
  which stretch the vocal folds out into the air
  passage (narrows the glottis)
• Air is pushed through and vibrates
• Sends sound waves into the pharynx, nose and
  mouth
• Higher pressurelouder sounds
• Pitch controlled by vocal fold tension
  (tighthigh)
• Male folds are thicker, producing lower sounds

22
Vocal Cords
23
Larynx

• Cricoid Cartilage
• Forms anterior wall of the larynx
• Attached to the first ring of cartilage of the
  trachea

24
Trachea

• Passageway for air
• 12 cm long, 2.5 cm diameter
• Anterior to the esophagus
• Extends from the larynx to the 5th thoracic
  vertebra
• 16-20 incomplete rings of hyaline cartilage
• Allows for anterior protection and posterior
  flexibility for swallowing

25
Tracheostomy

• Performed to allow air to bypass an obstruction
  within the larynx
• Skin incision, followed by a small longitudinal
  incision into the trachea
• Patient inspires through a tube placed in the
  incision

26
Intubation

• Tube placed into the mouth or nose and forced
  through the larynx and trachea
• Tube wall pushes back any obstruction
• Mucus blockage sucked out through the tube

27
Bronchial Tree
28
Bronchi

• Trachea divides at the sternum
• Right and left primary bronchus
• Right primary bronchus is more vertical, shorter
  and wider than the left
• Made of incomplete rings of cartilage and lined
  by pseudostratified ciliated epithelium

29
Secondary Bronchi

• Lobar
• Primary split after entering each lung
• Secondary bronchi go to each lobe of each lung
• Secondary split into tertiary (segmental) bronchi
• divide into bronchioles
• split into terminal bronchioles

30
Bronchi

• More Branching Tissue Changes
• 1st- rings of cartilage replace by plates that
  disappear in the bronchioles
• 2nd- as cartilage amount decreases, smooth muscle
  increases
• 3rd-epithelium changes from pseudostratified
  ciliated to simple cuboidal in the terminal
  bronchioles

31
Clinical Application Bronchi

• Asthma
• Smooth muscle of bronchioles contract, reducing
  the diameter of the airway
• Inhalers (bronchioles dilators) relax the muscle
  and open the airways

32
Alveoli

• Important in gas exchange
• Surrounded by capillaries
• 3 specialized cells in alveolar sac
• Squamous pulmonary epithelial cells
• allow for diffusion of O2 CO2 from surrounding
  vascular cells
• Septal cells--cuboidal cells
• Produce surfactant--phospholipid substance that
  lowers surface tension
• Alveolar macrophages (dust cells)-phagocytic
  cells

33
Alveoli
34
Clinical Application Alveoli

• Nebulization
• Administering medication in the form of droplets
  that are suspended in air
• Patient inhales the medication as a fine mist

35
Diffusion Across Respiratory Membrane
36
Lungs
37
Lungs

• 2 layers of membrane (pleural membrane) enclose
  and protect each lung
• Visceral Pleura - covers lungs
• Parietal Pleura - attached to the wall of the
  thoracic cavity
• Pleural cavity - space between each pleura,
  filled with fluid

38
Transverse Section of Lungs
39
Lungs

• Base
• broad inferior portion that is concave and fits
  over the diaphragm
• Apex
• narrow superior portion
• Costal surface
• touch the ribs

40
Lungs

• Hilus
• area in which bronchi, blood vessels, lymphatic
  vessels and nervous tissue enter and leave the
  lungs
• Cardiac notch
• ONLY on the left lung
• Right lung is thicker, broader and shorter than
  left

41
Lungs

• Lobes and Fissures
• Superior lobe
• above oblique fissure
• Both lungs
• Inferior lobe
• below oblique fissure
• Both lungs
• Middle lobe
• ONLY in the right lung
• Subdivision of right superior lobe

42
Lungs

• Oblique fissure
• extends downward and forward
• Both lungs
• Horizontal fissure
• only in the right lung
• Divides superior and middle lobes

43
Lungs

• Each lobe receives its own secondary (lobar)
  bronchus
• Each secondary bronchus named after the lobe it
  serves

44
Lungs

• Bronchopulmonary Segment
• Section of lung that surrounds a tertiary
  bronchus

45
Lungs

• Lobules
• Small compartments of a bronchopulmonary segment
• Wrapped in elastic connective tissue
• Contain lymphatic vessels, arteriole, venule, and
  branch from terminal bronchiole
• Terminal bronchioles split into respiratory
  bronchioles, which splits into alveolar ducts
• Alveolar ducts lead to alveolar sacs

46
Breathing Mechanism

• Breathing or ventilation is the movement of air
  from outside the body into the bronchial tree and
  alveoli
• air movements of inspiration and expiration
• changes in the size of the thoracic cavity due
  to changes in pressure

47
Inspiration

• Moving the plunger of a syringe causes air to
  move in or out
• Air movements in and out of the lungs occur in
  much the same way

48
Inspiration

• Boyles Law
• Pressure of a gas in a closed container is
  inversely proportional to the volume of the
  container

49
Lungs at Rest
When lungs are at rest, the pressure on the
inside of the lungs is equal to the pressure on
the outside of the thorax
50
Inspiration

• Intra-alveolar pressure decreases to about 758mm
  Hg as the thoracic cavity enlarges
• Atmospheric pressure forces air into the airways

51
Inspiration
Shape of thorax at end of normal inspiration
Shape of thorax at end of maximal inspiration
aided by contraction of sternocleidomastoid and
pectoralis minor muscles
52
Inspiration

• Lung volume increases 2 ways
• Diaphragm
• Main inspiratory muscle
• Contraction causes it to flatten and increase
  vertical dimension of thoracic cavity
• May increase 1 cm to 10 cm
• Accounts for movement of 75 of air entering
  lungs

53
Inspiration

• External Intercostal Muscles
• contractions pull ribs up pushing sternum out
• Increases diameter of thoracic cavity

54
Major Events in Inspiration
55
Expiration

• due to elastic recoil of the lung tissues and
  abdominal organs

56
Expiration

• NORMAL expiration is a passive process
• Active process during high levels of ventilation

57
Maximal Expiration

• contraction of abdominal wall muscles forcing
  diaphragm up
• contraction of posterior internal intercostal
  muscles

58
Major Events in Expiration
59
Ventilation

• 1 ventilation (respiration) 1 inspiration 1
  expiration
• Normal adults ventilate about 12 times per minute

60
Respiratory Volumes and Capacities
61
Respiratory Volumes and Capacities

• Pulmonary Reserve volume
• Inhaling deeply
• 3100 ml above the tidal volume
• Expiratory Reserve volume
• Forcibly exhaling
• 1200ml below the tidal volume

62
Respiratory Volumes and Capacities

• Residual volume
• Amount left after expiratory reserve volume is
  expelled
• Because some air remains in airways inside the
  lungs
• 1200ml
• Minimal volume
• Lungs with only minimal volume will not float
• Fetal lungs contain no air, so lungs of stillborn
  will not float

63
External Respiration

• Exchange of oxygen and carbon dioxide between the
  alveoli of lungs and the pulmonary blood
  capillaries
• Alveolar air has a partial pressure of oxygen of
  105-mmHg pO2
• Daltons Law
• Each gas in mixture exerts its own pressure as if
  all the other gases were not present

64
External Respiration Daltons Law

• pO2 of deoxygenated blood in the alveolar
  capillaries is only 40 mmHg
• O2 diffuses from alveoli into the deoxygenated
  blood until equilibrium is reached
• gives oxygenated blood a pO2 of 105 mmHg (equal
  to atmospheric air)
• CO2 diffuses in the opposite direction
• pCO2 in deoxygenated blood is 45 mmHg- alveolar
  air is 40 mmHg

65
Alveolar Ventilation

• Minute ventilation
• Tidal volume multiplied by breathing rate
• Amount of air that is moved into the respiratory
  passageways

• Alveolar ventilation rate
• Major factor affecting concentrations of oxygen
  and carbon dioxide in the alveoli
• Volume of air that reaches alveoli
• Tidal volume minus physiologic dead space then
  multiplied by breathing rate

66
Respiratory Center
67
Respiratory Center
68
Factors Affecting Breathing
Decreased blood oxygen concentration stimulates
peripheral chemoreceptors in the carotid and
aortic bodies
69
Factors Affecting Breathing

• motor impulses travel from the respiratory
  center to the diaphragm and external intercostal
  muscles
• contraction of these muscles causes lungs to
  expand
• expansion stimulates stretch receptors in the
  lungs
• inhibitory impulses from receptors to
  respiratory center prevent overinflation of lungs

70
Factors Affecting Breathing
71
Adaptations That Increase Effectiveness

• Thickness
• Alveolar sac- capillary complex only 2 cells
  layers thick
• Surface area
• More surface area the more diffusion possible
• Surface area of alveoli in the lungs is about
  70m2

72
Adaptations That Increase Effectiveness

• Large number of capillaries
• Allow 100 ml of blood to participate in gas
  exchange at one time
• Narrow Capillaries
• Allow RBCs to flow through in single file
• Provides maximum exposure

73
Alveoli

• gas exchanges between the air and blood occur
  within the alveoli
• alveolar pores allow air to pass from one
  alveolus to another

74
Respiratory Membrane

• consists of the walls of the alveolus and the
  capillary

75
Diffusion Through Respiratory Membrane
Gases are exchanged between alveolar air and
capillary blood because of differences in partial
pressure
76
Factors Affecting Efficiency

• Altitude
• atmospheric pO2 decreases as altitude increases
• Surface area
• damaged surface area (smoke, cancer, etc.)
• Small volumes
• certain drugs slow respiration rate

77
Life-Span Changes

• Reflect accumulation of environmental influences
• Reflect the effects of aging in other organ
  systems
• Cilia less active
• Mucous thickens
• Swallowing, gagging, and coughing reflexes slow
• Macrophages in lungs lose efficiency
• Increased susceptibility to respiratory
  infections
• Barrel chest may develop
• Bronchial walls thin and collapse
• Dead space increases

78
Clinical Application Cigarette Smoking

• Cilia disappear
• Excess mucus produced
• Lung congestion increases lung infections
• Lining of bronchioles thicken
• Bronchioles lose elasticity
• Emphysema fifteen times more common
• Lung cancer more common
• Much damage repaired when smoking stops
