Mobile Computing

1

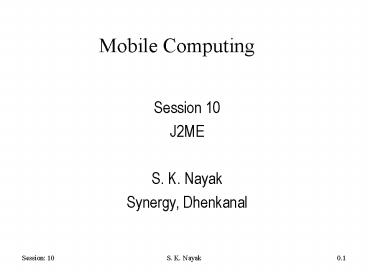

Mobile Computing

• Session 10
• J2ME
• S. K. Nayak
• Synergy, Dhenkanal

2
Why Java Technologyfor Small Devices?

• The nature of wireless devices is changing
• Old devices
• All the software hard-coded by the device
  manufacturer
• New devices
• Can be customized by dynamically loading
  software over the air
• New opportunities for manufacturers, operators,
  and developers!

3
JAVA Architecture
4
Overview of the Java 2 Platform

• J2EE
• A comprehensive platform for multi-user,
  enterprise-wide applications.
• based on J2SE and adds APIs for server-side
  computing.
• J2SE
• designed for desktop computers.
• Mostly runs on top of OS X, Linux, Solaris, or
  Microsoft Windows.
• J2ME
• subset of J2SE components
• set of technologies and specifications developed
  for small devices like pagers, mobile phones, and
  set-top boxes.
• J2ME uses smaller virtual machines and leaner
  APIs.

5
Elements of J2ME Architecture

• Profile Defines the Environment
• API exposing the functionality of a specific
  class of target devices, and necessary to support
  a particular set of services
• Optional Package Augments the Environment
• APIs exposing specific functionality
• Deployment determined by the Platform Vendor
• Configuration Defines the VM
• API exposing the minimal sized, preexisting
• profile defined for the specific VM it is
  deployed against.
• VM is either a full JVM or some subset of it
  (KiloByte VM).

6
Elements of J2ME Architecture
7
Configurations

• Connected, Limited Device Configuration(JSR-30,139
  )
• Smallest mobile devices
• Phones, Pagers, PDAs (small)
• 128K to 2MB with Profile and Optional Packages
• Network connectivity usually limited
• Connected Device Configuration (JSR-36)
• Larger devices, some mobile, some not
• TVs, PDAs (larger), Communicators, Cars, Gateways
• 2MB and up with Profile and Optional Packages
• Connectivity includes TCP/IP

8
J2ME Connected LimitedDevice Configuration (CLDC)
9
Profiles for CLDC

• Mobile Information Device Profile (JSR-37, 118)
• Will work with CLDC
• Volume Wireless Handsets
• LCDUI based GUI
• PDA Profile (JSR-75)
• References MIDP
• Smaller memory PDAs
• AWT based GUI

10
J2ME Mobile InformationDevice Profile (MIDP)
11
J2ME-CLDC Stack
12
MIDlet Life Cycle

• MIDP applications, or MIDlets, move from state
  to state in their lifecycle according to a state
  diagram
• MIDlet states include
• Pausedinitialized and quiescent (waiting)
• Activehas resources and is executing
• Destroyedhas released all resources, destroyed
  threads, and ended all activity

13
J2ME APIs

• J2SE APIs require several megabytes of memory
• not suitable for small devices with limited
  resources.
• APIs for the CLDC, provide a minimum set of
  libraries useful for application development and
  profile definition for a variety of small
  devices.
• The CLDC library APIs can be divided into the
  following two categories
• Classes that are a subset of the J2SE APIs
• java.lang, java.io, and
  java.util packages
• Classes specific to the CLDC
• These classes are located in the
  javax.microedition package

14
CLDC classes inherited from J2SE
15
CLDC Specific Classes
16
MIDP Specific Classes

• MIDP-specific classes include
• the javax.microedition.rms,
• javax.microedition.midlet,
• javax.microedition.lcdui packages
• Some additional classes, interfaces, and
  exception classes available
• IllegalStateException class in the java.lang
  package
• Timer and TimerTask classes in the java.util
  package
• HttpConnection interface for HTTP protocol access
  over the network in the javax.microedition.io
  package

17
J2ME vs J2SE

• Reduced number support
• float, double primitives
• Double, Float classes
• Extendable UI components
• Final High-level components
• New components subclass Canvas
• Lacks
• JNI
• Sound API
• Serialization
• Reflection
• User defined class loaders

18
Some Links to Start with J2ME

• http//developers.sun.com/techtopics/mobility/lear
  n/midp/getstart
• http//developers.sun.com/techtopics/mobility/midp
  /articles/wtoolkit/
• http//developers.sun.com/techtopics/mobility/midp
  /articles/tutorial2/
• http//developers.sun.com/techtopics/mobility/midp
  /articles/api/

19
Sun J2ME Wireless Toolkit

• Install J2SE SDK
• Available at http//java.sun.com/j2se/.
• Add bin subdirectory to the path.
• Install J2ME Wireless Toolkit
• Available at http//java.sun.com/products/j2mewtoo
  lkit/ .
• Run KToolbar.
• Use Any IDE for coding java
• Eclipse, netbeans etc.

20
MIDP Development with J2MEWTK

1. Write your Java application (midlets) using any
   text editor or IDE
2. Use J2ME Wireless Toolkit, Create a Project
3. Follow the instructions and copy the source file
   to the location specified in the Wireless Toolkit
4. Click on Build
5. Run against any emulator

21
Sun J2ME Wireless Toolkit
22
Creating a new Project
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Server Side Implementation

• MIDlet The application, a MIDlet, was designed
  for the Mobile Information Device Profile, one of
  the J2ME specifications.
• Servlet Servlets are Java programs which run on
  the server.
• The MIDlets connect to servlets, which implement
  server side functionality.
• Next slides show how to write and deploy a
  servlet, and then how to hook up a MIDlet with
  the servlet

27
Installing Tomcat

• Download Tomcat server
• Available at http//jakarta.apache.org/builds/jaka
  rta-tomcat-4.0/nightly
• Unpack the distribution in to a directory and set
  the environment variable CATALINA_HOME to the
  path of the directory
• Upon starting the server, Tomcat 4.0 will be
  available by browsing http//localhost8080/
• Further details of Installation refer to
  http//jakarta.apache.org/tomcat/tomcat-4.1-doc/RU
  NNING.txt

28
Writing a Simple Servlet
HitServlet simply counts the number of times
it's been invoked and writes back to the client a
message containing the count.

• import javax.servlet.http.
• import javax.servlet.
• import java.io.
• public class HitServlet extends HttpServlet
• private int mCount
• public void doGet(HttpServletRequest request,
• HttpServletResponse response)
• throws ServletException, IOException
• String message "Hits " mCount
• response.setContentType("text/plain")
• response.setContentLength(message.length())
• PrintWriter out response.getWriter()
• out.println(message)

Save the source code in a file under the Tomcat
root directory named webapps/midp/WEB-INF/classes/
HitServlet.java
29
Compiling and deploying the servlet

• Compiling
• Execute the following shell commands
• export CLASSPATH\jakarta-tomcat-4.1.27\common\li
  b\servlet.jar
• javac HitServlet.java
• Deploying
• you'll need to edit one of Tomcat's configuration
  files to tell Tomcat about the new web
  application. Open the conf/server.xml file with a
  text editor. In this file, web applications are
  called contexts. Scroll down to find the Context
  entry for the examples web application, which
  begins like this
• lt!-- Tomcat Examples Context --gt
• ltContext path"/examples" docBase"examples"
  debug"0"
• reloadable"true" crossContext"true"gt
• Above or below this lengthy context entry (it's
  closed by lt/Contextgt, many lines down), create a
  new context entry for your new web application.
  It will look similar to the opening tag for the
  examples context, but you'll change the names to
  midp as appopriate and close the tag inline.
• lt!-- MIDP Context --gt
• ltContext path"/midp" docBase"midp"
  reloadable"true"/gt
• Once you're finished adding the context entry,
  save the file.

30
Create a web-application config

• Copy the following text and save it as
  webapps/midp/WEB-INF/web.xml under the Tomcat
  root directory
• lt?xml version"1.0" encoding"ISO-8859-1"?gt
• lt!DOCTYPE web-app
• PUBLIC "-//Sun Microsystems, Inc.//DTD Web
  Application 2.3//EN"
• "http//java.sun.com/dtd/web-app_2_3.dtd"gt
• ltweb-appgt
• ltservletgt
• ltservlet-namegtmyServletlt/servlet-namegt
• ltservlet-classgtHitServletlt/servlet-classgt
• lt/servletgt
• ltservlet-mappinggt
• ltservlet-namegtmyServletlt/servlet-namegt
• lturl-patterngt/hitslt/url-patterngt
• lt/servlet-mappinggt
• lt/web-appgt

31
Hooking Up a MIDlet to the Servlet

• Create a command action method in your MIDlet
• public void commandAction(Command c, Displayable
  s)
• if (c mExitCommand)
• notifyDestroyed()
• else if (c mConnectCommand)
• Form waitForm new Form("Waiting...")
• mDisplay.setCurrent(waitForm)
• Thread t new Thread()
• public void run()
• connect()
• t.start()

32
Hooking Up a MIDlet to the Servlet

• The Connect method
• private void connect()
• HttpConnection hc null
• InputStream in null
• String url getAppProperty("HitMIDlet.URL")
• try
• hc (HttpConnection)Connector.open(url)
• in hc.openInputStream()
• int contentLength (int)hc.getLength()
• byte raw new bytecontentLength
• int length in.read(raw)
• in.close() hc.close()
• // Show the response to the user.
• String s new String(raw, 0, length)

33
Build and run your MIDlet

• Save it as HitMIDlet.java inside the
  apps/HelloSuite/src directory underneath the J2ME
  Wireless Toolkit root directory. Click on
  Settings..., then select the MIDlets tab. Click
  on Add and fill in "HitMIDlet" for both the
  MIDlet name and class name. You can leave Icon
  blank. Click on OK and you should see both
  HelloMIDlet and HitMIDlet listed.
• Define a system property that HitMIDlet uses as
  the URL for its network connection. (This
  property is retrieved in the third line of the
  connect() method.)
• In the toolkit, click on Settings..., then select
  the User Defined tab. Click on the Add button.
  Fill in the property name as HitMIDlet.URL the
  value should be the URL that invokes HitServlet,
  the same URL you used in a browser to test the
  servlet. When you're finished, click on OK to
  dismiss the project settings window.
• Click on Build to build the project. Make sure
  your server is running first.
• Then click on Run and select HitMIDlet. Select
  the Connect command.

34
MIDP Programming

• General MIDP Tutorials http//developers.sun.com/t
  echtopics/mobility/midp/reference/techart/
• Useful Links
• Event Handling (http//developers.sun.com/techtopi
  cs/mobility/
• midp/articles/event/index.html)
• Client Server Communication( http//developers.sun
  .com/
• techtopics/mobility/midp/ttips/clientserv/index.ht
  ml)
• Session Handling ( http//developers.sun.com/techt
  opics/
• mobility/midp/articles/sessions/index.html)

35
Recommended Programming Practices

• Keep in mind that there are strict memory
  constraints on most CLDC target devices
• Allocate memory resources just before use
• Free resources as soon as they are not needed
• Avoid allocating small temporary chunks of memory
  to avoid heap fragmentation
• Make local copies of global variables
• Avoid redundant method calls, and inline
  functions rather than creating a new class

36
References

• J2ME
• http//java.sun.com/j2me/
• http//www.billday.com/j2me/
• Java FAQ
• http//java.sun.com/products/jdk/faq.html
• Online Java Tutorial
• http//java.sun.com/docs/books/tutorial/
• JSP Tutorial
• http//www.jsptut.com/
