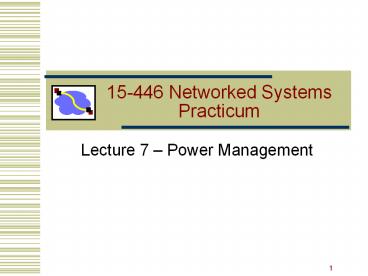

15-446 Networked Systems Practicum

1
15-446 Networked Systems Practicum

• Lecture 7 Power Management

2
Outline

• 802.11 details
• BSD
• Catnap
• Secondary Radio Systems
• Localization

3
Power Management Approach(Infrastructure)

• Allow idle station to go to sleep
• stations power save mode stored in AP
• AP buffers packets for sleeping nodes
• AP announces which station have frames buffered
• Power Saving stations wake up periodically
• listen for Beacons
• TSF assures AP and Power save stations are
  synchronized
• TSF timer keeps running when stations are sleeping

4
WiFi
Saving Energy through Sleep
Between packet bursts, WiFi switches to low-power
sleep mode
5
Measuring Power on Nexus One
Simultaneous measurements at 5K hertz
6
Wireless Interface Power-Saving

• AWAKE high power consumption, even if idle
• SLEEP low power consumption, but cant
  communicate
• Basic PSM strategy Sleep to save energy,
  periodically wake to check for pending data
• PSM protocol when to sleep and when to wake?
• A PSM-static protocol has a regular, unchanging,
  sleep/wake cycle while the network is inactive
  (e.g. 802.11)

Measurements of Enterasys Networks RoamAbout
802.11 NIC
7
Power Management Approach(Infrastructure)

• Broadcast/multicast frames are also buffered at
  AP
• these frames are sent only at DTIM
• DTIM time when multicast frames are to be
  delivered by AP, determined by AP
• this time is indicated in the Beacon frames as
  delivery traffic indication map(DTIM)
• Power Saving stations wake up prior to expected
  DTIM
• If TIM indicates frame buffered
• station sends PS-Poll and stays awake to receive
  data
• else station sleeps again

8
Infrastructure Power Management Operation
DTIM Interval
Beacon-Interval
Time axis
AP activity
AP activity
Broadcast
TIM (in Beacon)
Busy medium
DTIM
PS station
Poll
9
Buffered Frame Retrieval Process for Two Stations

• Station 1 has a listen interval of 2 while
  Station 2 has a listen interval of 3.

10
Outline

• 802.11 details
• BSD
• Catnap
• Secondary Radio Systems
• Localization

11
PSM-Static Impact on TCP (initial RTTs)
12
PSM-Static Impact on TCP (steady state)
13
PSM-static Overall Impact on TCP
Measured TCP Performance

• The transmission of each TCP window takes 100ms
  until the window size grows to the product of the
  wireless link bandwidth and the server RTT

14
Web Browsing is Slowwith PSM-static

• Web browsing typically consists of small TCP data
  transfers
• RTTs are a critical determinant of performance
• PSM-static slows the initial RTTs to 100ms
• Slowdown is worse for fast server connections
• Many popular Internet sites have RTTs less than
  30ms (due to increasing deployment of Web CDNs,
  proxies, caches, etc.)
• For a server RTT of 20ms, the average Web page
  retrieval slowdown is 2.4x

15
PSM-static Does Not Save Enough Energy

• Client workloads are bursty
• 99 of the total inactive time is spent in
  intervals lasting longer than 1 second (see
  paper)
• During long idle periods, waking up to receive a
  beacon every 100ms is inefficient
• Percentage of idle energy spent listening to
  beacons
• Longer sleep times enable deeper sleep modes
• Basic tradeoff between reducing power and wakeup
  cost
• Current cards are optimized for 100ms sleep
  intervals

Enterasys RoamAbout 23 Used in our paper
ORiNOCO PC Gold 35 Based on data in
Cisco AIR-PCM350 84 Shih, MOBICOM 2002
16
The PSM-static Dilemma

• Compromise between performance and energy

17
Bounding Slowdown with Minimum Energy (Idealized)
Bounded Slowdown Property If Twait has elapsed
since a request was sent, the network interface
can sleep for a duration up to Twaitp while
bounding the RTT slowdown to (1p)

• Idealized protocol
• To minimize energy sleep as much as possible
• To bound slowdown wakeup to check for response
  data as governed by above property

18
Synchronization

• Mobile device and AP should be synchronized with
  a fixed beacon period (Tbp)
• May delay response by one beacon period during
  first sleep interval
• To bound slowdown, initially stay awake for 1/p
  beacon periods
• Round sleep intervals down to a multiple of Tbp
• Requires minimal changes to 802.11

19
Bounded-Slowdown (BSD) Protocol

• Parameterized BSD protocol exposes trade-off
  between performance and energy
• Compared to PSM-static awake energy increases,
  listen energy decreases

20
Web Browsing Energy

• BSD would have large energy savings for other
  cards 25 for ORiNOCO PC Gold, and 70 for Cisco
  AIR-PCM350
• Sleep energy could be reduced by going into
  deeper sleep during long sleep intervals
• Shorter beacon-period can reduce awake energy
  (see paper)

21
Outline

• 802.11 details
• BSD
• Catnap
• Secondary Radio Systems
• Localization

22
Using Sleep Modes

• 802.11 PSM
• Yes, but only when no application is using the
  wireless interface
• Can hurt application performance, e.g. VoIP
• Enter sleep mode if no network activity for X
  amount of time
• S3 Mode
• Cannot use it while applications are running
• Sleep modes not useful during data transfers

23
Typical Home Scenario
24
Catnap Design
25
Catnap Scheduler
26
(No Transcript)
27
Outline

• 802.11 details
• BSD
• Catnap
• Secondary Radio Systems
• Localization

28
WiFi Sleep Under Contention
29
Beacon Wakeups
Bad wakeups burst contention
Traffic Download
Key intuition move beacons, spread apart
traffic, let clients sleep faster
30
Reducing Idle Power

• The Problem
• To receive a phone call the device and the
  wireless NIC has to be in a listening state
  i.e. they have to be on.
• Our Proposal
• When not in use, turn the wireless NIC and the
  device off.
• Create a separate control channel. Operate the
  control channel using very low power, possibly
  in a different freq. band. Use this channel to
  wake-up device when necessary.
• Proof of Concept Implementation
• Short Term Add a low power RF transceiver to
  the 802.11 enabled handheld device
• Long term Integrate lower power functionality
  into 802.11 or integrate lower power radio into
  mother board and/or 802.11 Access Points.

31
The MiniBrick PCB
Accelerometer
Crystal
915 MHz Radio
Speaker
Tilt Sensor
IR Range
PIC
Temperature Sensor
Vibrator
Audio Plug
Front View
Back View
Modular design allows removal of components
32
Radio Power Consumption

• Radio
• RFM TR 1000 ASH
• Modulation ASK
• Voltage 3V
• Range 30 feet (approx)

Comparing against 802.11 and BT Radios
Chipset Receive (mW) Transmit (mW) Standby (mW) Rate (Mbps)
Intersil PRISM 2 (802.11b) 400 1000 20 11
Silicon Wave SiW1502 (BT) 160 140 20 1
RFM TR1000 14 36 0.015 0.115
33
MiniBrick Power Consumption
Mode Power Consumption
Transmit 39 mW
Receive 16 mW
Standby 7.8 mW
Theses numbers include the power consumption by
the PIC Microcontroller and the RFM TR1000
34
Outline

• 802.11 details
• BSD
• Catnap
• Secondary Radio Systems
• Localization
