Multi-Platform Data Access

1

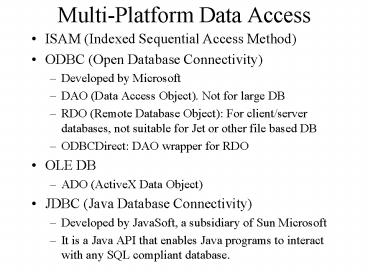

Multi-Platform Data Access

• ISAM (Indexed Sequential Access Method)
• ODBC (Open Database Connectivity)
• Developed by Microsoft
• DAO (Data Access Object). Not for large DB
• RDO (Remote Database Object) For client/server
  databases, not suitable for Jet or other file
  based DB
• ODBCDirect DAO wrapper for RDO
• OLE DB
• ADO (ActiveX Data Object)
• JDBC (Java Database Connectivity)
• Developed by JavaSoft, a subsidiary of Sun
  Microsoft
• It is a Java API that enables Java programs to
  interact with any SQL compliant database.

2
Reasons Move from DAO to ADO

• Universal data access requirement ODBC - OLE DB
• Software Size
• DAO350.DLL 569KB
• MSJET35.DLL 1,022KB
• RDO 368KB
• ODBCDirect
• ADO2.0 342KB
• Difficult to maintain three packages (DAO,RDO,
  ODBCDirect)

3
Using ODBC

• DSN (Data Source Name)
• User DSN Only be recognized locally
• System DSN Recognized by the network
• ODBC Driver
• Server/Database
• ODBC Administrator
• Examples DSN to Access and SQL Server

4
OLE DB Providers

• See Page. 94

5
ADO Object Hierarchy

• Connection Specify the OLE DB data provider,
  establish a connection to the data source.
• Command A set of functions to handle queries,
  usually SQL statements or stored procedures, or a
  direct link to a table.
• Recordset Host the result of a command object,
  or the link (pointer) to a table.

6
Visual Basic Database Tools I

• Data Environment Designer Create database
  objects based on ADO. Available for Data Project
• Data View Window Access the linked database.
  Available in Menu ViewData View Window
• Report Designer Build up reports

7
Visual Basic Database Tools II

• Query Designer A graphic tool that uses Drag and
  Drop to create a view or query. Available in Data
  View WindowViewDesign Database Designer A
  graphic designer for Database Diagrams. Available
  in Data View Window Database Diagrams
• SQL Editor A editor to create Views or Stored
  Procedures. Available in Data View WindowStored
  ProceduresDesign
• T-SQL Debugger Debug the stored procedures.
  Available in Data View WindowStored
  ProceduresDebug

8
Data Binding

• Data Source Produces the data
• Data Consumer Consume (read, edit) data
• Data binding is a technique to link a data source
  with a data consumer
• Data Controls The object link to a table
• Data Control Using DAO
• RemoteData Control Using RDO
• ADODC Using ADO
• Bound Controls The object bounded to a field

9
Form Controls in VB

• Intrinsic Controls Deal with simple data
  bounding. Exist intrinsically in all VB
  environments
• Check Box, Combo Box, List, Text Box, etc.
• ActiveX Bound Controls True COM objects. Deal
  with complex data bounding. Needed to be call in
  as necessary (Menu ViewComponents)
• DataList, DataCombo,MaskEdit, etc.

10
Example of Data Binding Using ADODC

• Create an AODDC
• Configure the properties
• note the data link related properties can be
  available in popup menu rather than in the
  property window
• Provider
• Data Source
• Row Source
• Create text boxes bounded to one of the fields

11
Useful VB Examples I

• Convert the inputted letters into upper case
• Key issue ASCII code order and KeyAscii variable
• Use DateTimePicker Control
• Drop down calendar format (.UpDownTrue)
• Spin box format (.UpDownFalse)
• See example \VB6DB\Chapter08\Controls\Project1

12
Useful VB Examples II

• Use StatusBar to show message
• See example \VB6DB\Chapter08\Validate\Project1
• Some other useful external controls
• ProgressBar Provides dynamic progress status for
  long time processing.

13
Data Environment Designer

• The methods to enable DED
• Add DED in Standard Exe Project MenuMore
  ActiveX DesignerData Environment Designer
• Create a Data Project
• Three object blocks in DED
• Connection
• Command
• Chile Command (for Child tables)

14
Using DED at Run Time I

• Each Command object in DED will have a Recordset
  object with rs plus the commands name
• Three ways to reference in DED
• DEDName.Recordsets(n).Fields(nstring).value
• DEDName. RecordsetName.Fields(nstring).value
• DEDName. RecordsetName(nstring).value
• See example in \VB6DB\Chapter09\DataEnv\proj

15
Using DED at Run Time II

• Open a command
• Open the recordset applying to the command
• Set a recordset pointing to the result of command
• Open the command with parameters
• NO OPEN method for command object
• Add a ADODC to navigate
• Set ADODC1.RecordsetDE1.rsCommand1
• Navigate DE object DE.rsCommand1.MoveNext
• Reuse DED File (.dsr)

16
ADO Programming

• ADO Object Vs DED object
• DED object is easier to configure at design time
• ADO object is more flexible in run time

17
Connect Object I

• Object Hierarchy
• Command, Recordset, Errors
• Important Properties
• ConnectionString data provider, data location,
  user name, password. Components are delimited by
  semi colons.
• CursorLocation Client side or server side
• Mode Permission for the data
• State State of the object

18
Connect Object II

• Important Methods
• Close Close the connection
• Open Open the connection
• Execute Execute a command object
• BeginTrans, CommitTrans, RollbackTrans For
  transaction operations
• Examples of Opening a connection
• \VB6DB\Chapter12\ConnectionDemo\Project1

19
Connect Object III

• Analyzing Errors
• Property
• Count The number of errors in current object
• Method
• Clear Clear errors for current object
• Each error in Errors collection is an object
• Description
• Source
• Number
• Example ..\Chapter12\ConnectionDemo\Project1
  WriteError()

20
Command Object I

• Primary Purpose
• Run a non record returning execution
• Run a stored procedure with parameters
• Important Properties
• ActiveConnection An opened connection object
• CommandType Type of command
• CommandText Command content
• State Command state
• ActiveConnection and CommandText are basic info
• Important Collections
• Parameters Contains all parameters of the
  command object

21
Command Object II

• Important Methods
• CreateParameter Create a new parameter
• Set parameter command.CreateParameter (Name,
  Type, Direction, Size, Value)
• Execute Execute the command
• Set recordset command.Execute( RecordsAffected,
  Parameters, Options )
• command.Execute RecordsAffected, Parameters,
  Options

22
Command Object III

• Execute a command with parameters
• Method 1 Creation and Assign are in three steps
• CreateParameter, Append, Assign
• Method 2 Creation and Assign are in one steps
• CreateParameter (Name, Type, Direction, Size,
  Value)
• Method 3 Parameters info are entered with
  Execute method The parameter values must be put
  in an Array() function to convert into a variant
• Command linked to a stored procedure has the
  ability to retrieve the parameter definition
• obj.Parameters.Refresh
• obj.Parameters(_at_ParaName).Valuevalue

23
Command Object Examples

• Execute Command SQL Statement with Parameter,
  and Put Into a Recordset
• ..\Chapter13\..\Command3_click()
• Execute Command DDL SQL with no record returning
• ..\Chapter13\..\Command5_click()
• Execute Command Stored procedure with parameter
• ..\Chapter13\..\Command6_click()
• Notice the parameter setting

24
Recordset Object I

• Recordset is the real object that contains the
  data retrieved from database
• Important properties
• ActiveConnection
• CursorLocation Client/Server
• CursorType Read only/Visibility to the change
• LockType
• RecordCount The number of records retrieved
• BOF/EOF/NoMatch
• Bookmark/AbsolutionPosition

25
Recordset Object II

• Important Methods
• Open Open a recordset
• recordset.Open Source, ActiveConnection,
  CursorType, LockType, Options
• AddNew Add a new record
• recordset.AddNew FieldList, Values
• Delete Delete the specified records
• recordset.Delete AffectRecords
• Update Save changes made to current record
• recordset.Update Fields, Values

26
Recordset Object III

• Ways to create a recordset
• Use a command as the Source Normally for calling
  stored procedures with parameters
• Use an Active Connection and assign the other
  properties Cursor Location, Type and Lock
• Use Connection Execute method For read-only,
  forward-only, highest performance.
• ..\Chapter14\RecordsetDemo\Project1

27
Recordset Object IV

• Methods to search a record
• Find Searches for the record that satisfies the
  specified criteria.
• Find (criteria, SkipRows, searchDirection, start)
• FindFirst LastNextPrevious
• FindFirst criteria
• For best performance, the criteria should be in
  either the form "field value"or "field LIKE
  prefix" (e.g., LIKE DATA) where field is an
  indexed field
• Use NoMatch or EOF property to determine whether
  the search is successful.

28
Recordset Object V

• Methods to move around
• Move Move specific number of records
• recordset.Move NumRecords, Start
• MoveFirstLastNextPrevious
• Moves to the first, last, next, or previous
  record
• Bookmark Vs AbsolutePosition
• AbsolutePosition is a sequential number, may
  change when records are added or deleted
• Bookmark is a unique value, not affected

29
Analyze Example (p. 5860)

• DataGrid properties
• DataSource, AllowAddNew, AllowDelete
• Connection
• Provider (property) Open (method)
• Recordset properties
• ActiveConnection, CursorType, LockType
• Method Open

30
Analyze Example (p. 5860)

• Dim (Private) As New
• DoEvents Yields execution so that the operating
  system can process other events.
• With End With Executes a series of statements
  on a single object or a user-defined type.

31
Add Navigation Buttons

• Make the data control to be public to all
  procedures in the form
• rstNwind navigation methods

32
The Factors Related to Permission of Changing
Table

• Properties
• AllowNew, AllowDelete, AllowUpdate
• LockType ReadOnly, Optimistic, BatchOptimistic
• Integrity rules in relationship

33
LockType Options

• ReadOnly Default. Read-onlyyou cannot alter the
  data.
• Pessimistic locking records at the data source
  immediately upon editing.
• Optimistic locking records only when you call the
  Update method.
• BatchOptimistic required for batch update mode as
  opposed to immediate update mode.

34
Important Properties, Methods and Events
Connection Object

• Properties
• ConnectionString Info about opening a connection
• CursorLocation Sets or returns the location of
  the cursor engine (Client or Server side)
• DefaultDatabase Indicates the default database
  for a Connection object.
• Provider Indicates the name of the provider for
  a Connection object

35
Connection Property Example 1

• ' Open a connection using the Microsoft ODBC
  provider. Set cnn1 New ADODB.Connection
  cnn1.ConnectionString "driverSQL Server"
  _ "serverbigsmileuidsapwdpwd" cnn1.Open
  strCnn cnn1.DefaultDatabase "pubs"

36
Important Properties, Methods and Events
Connection Object

• Methods
• Close Close the connection
• Execute Executes the specified query, SQL
  statement, stored procedure, or provider-specific
  text. The result is forward only.
• Open Open a connection.

37
Methods Syntax

• For a nonrow-returning command string
• connection.Execute CommandText, RecordsAffected,
  Options
• For a row-returning command string
• Set recordset connection.Execute (CommandText,
  RecordsAffected, Options)
• Open
• connection.Open ConnectionString, UserID,
  Password, OpenOptions

38
Examples of Openning a Connection

• Use example on P. 59
• Use full strConnection argument after Open method
  (P. 77)
• Use all connection information as properties (P.
  78) - Advantage

39
Important Properties, Methods and Events
Connection Object

• Events. To use the events, the connection must be
  declared by
• Private (Dim) WithEvents cnnName As
  ADODB.Connection
• The usage of events (P. 83)

40
Error Collection and Objects

• Example of using error collection and objects

41
Important Properties, Methods and Events Command
Object
42
Important Recordset Object Properties

• ActiveConnection
• BOF, EOF
• Bookmark
• CursorLocation
• CursorType, LockType
• DataMember, DataSource
• EditMode
• Filter

43
Important Recordset Object Properties

• RecordCount
• Sort
• Source
• adCmdTable generating an internal SELECT query
• adCmdTableDirect retrieve rows directly from
  table
• State About the whole object open or close
• Status About current record (Add/Update/Delete)

44
Important Recordset Object Methods

• AddNew two methods, with or without parameters
  (see example)
• Close, Open, Requery (CloseOpen)
• Delete
• Find (further study about CRITERIA)
• Move, MoveFirst,
• Methods to mover the pointer
• Supports
• Update

45
Batch Update

• Ste LockType to adLockBatchOptimistic
• Set CursorType adOpenKeySet or adOpenStatic
• Set CursorLocation to adUseClient
• Do the editint (Change, AddNew, Delete)
• Call UpdateBatch method to apply the batch update

46
Manipulating Data Object with VBA

• Using DED Easy to use, code less
• Using VBA
• Reduce number of active connections
• Easy to customize and user oriented
• Better readability

47
Independence of ADO Objects

• Three objects Connection, Command and Recordset
  can be independently exist. Whereas DAO has to
  follow hierarchy (See exp. on p138)
• Default CursorLocation using DED it is
  adUseClient, using VBA it is adUseServer
• Example on p. 147-152 (..\Chapter03\adoOpen.vbp)
  provides five methods to create a recordset

48
File for Recordset

• Why need a file to store temp recordset data
  without utilize a local database engine.
• File is in ADTG (Advanced Data TableGram) format
  with extension .rst
• Use recordset method Save to save a the data to a
  file
• rstName.Save FileName

49
Using Array() to Add/Edit Rows

• Returns a Variant containing an array
• Syntax Array(arglist)
• The required arglist is a comma-delimited list of
  values that are assigned to the elements of the
  array contained within the Variant.
• Exp.1 Example in Help system
• Exp.2 rstOrders.AddNew Array(CustomerID,
  OrderDate), Array(VINET,6/6/1998)
• Exp3 rstOrders.Update Array(CustomerID,
  OrderDate), Array(VINET,6/6/1998)

50
Fields Collection and Methods of Referencing a
Field

• A Fields collection contains all the Field
  objects of a Recordset object.
• rstName.Fields(FieldName)
• rstName.Fields(CustomerID)
• rstName.Fields(strName) strNameCustomerID
• rstName.Fields(index) index0,1,2,...
• rstName!FieldName
• rstName!CustomerID
• rstName(FieldName)
• rstName(CustomerID)
• rstName(strName) strNameCustomerID

51
Close Recordset When not is Use

• Minimize active connection
• Most properties are read only when in use
• Note if try to close a recordset not previously
  opened, an error occurs.

52
Methods to Create a Recordset

• Example - Five methods to create a recordset (P.
  147-152, ..\Chapter03\adoOpen.vbp)
• Create a recordset directly
• Open a recordset on a Connection object
• Open a Recordset on a Command object
• Open a Recordset from File
• Open a Recordset from Array

53
Usage of Data Objects

• Connection to build up a connection to a
  database which can be used to host the different
  Command and Recordset objects
• Command normally only used to execute non-record
  return commands such as INSERT, DELETE, UPDATE,
  and so on)
• Recordset real connection to a table or a data
  object

54
Execute and Open Methods

• Execute method is used to create a forward only
  recordset, which is faster and more efficient.
• Open method open a recordset point to a data
  object for read/write purposes.

55
ADO Find Method

• Syntax of Find method (ADO)
• rstName.Find criteria, SkipRows, searchDirection,
  start
• Syntax of Find???? Methods (DAO)
• rstName.Find???? Criteria
• Changes from Find???? To Find
• Criteria is limited, not a SQL Where clause
• Single field
• Common comparison orpertors
• More parameters
• Example code (p. 154-156)

56
Argument Values for Find????

• Find???? Skip SearchDirection Start
• FindFirst 0 adSearchForward
  adBookmarkFirst
• FindLast 0 adSearchBackward
  adBookmarkLast
• FindNext 1 adSearchForward
  adBookmarkCurrent
• FindPrev 1 adSearchBackward
  adBookmarkLast

57
Move Methods

• Move and Move???? Both available in ADO
• Syntax for Move method
• recordset.Move NumRecords, Start
• Syntax for Move???? Methods
• recordset.Move????

58
Find, Seek and SELECT

• ADO doesnt have Seek method
• Find method cant automatically use the built
  indexes
• Use SELECT, which can apply the built-in query
  optimizer to find appropriate index, to extract
  the data
• Use Find method to do refine work on a small,
  local data set

59
Hierarchical Data View

• Two kinds of View
• Tree view (Maximum number of levels 4-5)
• Form/Subform view
• MSHFlexGrid configuration
• Bands (levels)
• Visible Fields
• Difference of Left click and Right click drag

60
Grouping and Aggregate

• Add Grouping command
• Add Aggregate function
• Example on p. 162 (Tree like hierarchy)
• Example of subform hierarchy
• Example of grouping and aggregate

61
Data Bound Controls

• Single-bound controls
• TextBox, CheckBox
• Example on p. 192 (VBAEntry.vbp)
• Complex-bound controls
• DataGrid, DataList, DataRepeater, MSFlexGrid

62
Complex-bound controls

• DataGrid Properties
• General Enabling AllowAddNew, AllowDelete
• Keyboard Enabling Tab navigation
• Columns Link each column to a field
• Retrieve and Clear fields
• Layout behavior of each column
• Format value display format

63
Complex-bound controls

• Data bounded DataCombo and DataList
• Compare with ComboBox and ListBox
• Two methods to bound to a data source
• Use DED
• Use VBA (Run-time assign RowSource, RowMember,
  cant use AddItem)
• Analyze example on p. 198
• Style property DropDownList vs DropDownCombo

64
Complex-bound controls

• MSFFlexGrid
• Doesnt have Columns, Format property sections
• Use Format() to format the cells (code on p. 200)

65
Complex-bound controls

• DataList
• Code on p. 203
• Filter property (faster than create a new
  recordset)
• DoEvent force an operation execute after another
  one

66
Useful Topics

• Ways to link to a table
• Command object recordset (rsCommandName)
• ADODB.Recordset
• Enabling Addition
• Change property EOFAction
• Reuse DED designer files
• Add .dsr file into current project
