Hearing aid components

1

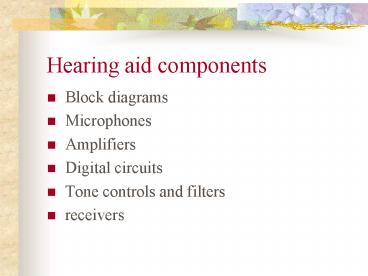

Hearing aid components

• Block diagrams
• Microphones
• Amplifiers
• Digital circuits
• Tone controls and filters
• receivers

2
Block diagrams 1
3
Block diagrams 2
4
Microphones principle of operation
Electret microphone
5
Microphone frequency responses
6
Microphone imperfections

• Exposed to chemical agents such as perspiration
• Random electronic noise
• Vibration and internal feedbacks
• Wind noise

7
Directional microphone
External and internal time delay
8
Polar diagram and directivity index (DI)
Dual microphone Adaptive directional microphone
9
Amplifiers linear amplifiers class A
Constant current flows Inefficient Fast battery
drain Asymmetric clipping Inadequate headroom
10
(No Transcript)
11
Headroom
12
Amplifier linear class B (push-pull)
13
Amplifier linear class D
14
(No Transcript)
15
Amplifier compression
An amplifier that turns down its gain as the
input increases
16
(No Transcript)
17
Digital circuit

• Greater precision
• Less internal noise
• Consume little power
• Ability to do complex operations

• ADC and DAC
• Sampling rate
• Anti-aliasing filter
• bits

18
Sampling rates
19
(No Transcript)
20
Bits 2n Dynamic range Relationship with speech
perception
21
Filters and tone controls
22
Multi-band or multi-channel?

• Interchangeable
• Band frequency range
• Channel physical chain of device
• Channel ????Band ????

23
Receivers principle of operation
24
Receiver frequency responses
