History of Synchrotron Radiation at Daresbury Laboratory

1

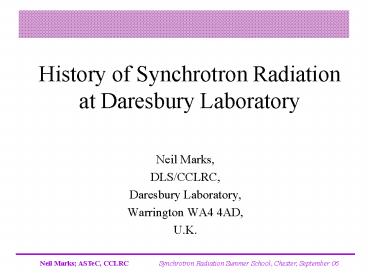

History of Synchrotron Radiation at Daresbury
Laboratory

• Neil Marks,
• DLS/CCLRC,
• Daresbury Laboratory,
• Warrington WA4 4AD,
• U.K.

2
A quiet, fertile field in Cheshire.....
3
down a quite country lane.....
4
by a tranquil canal.....
5
was chosen......
Feb. 1964
6
not without incident....

7
but based on sound foundations....

8
for Daresbury Laboratory!

1972
9
NINA buildings under construction
1964
10
The NINA tunnel without magnets.
1964
11
Before shielding was complete.

1965
12
The NINA Tunnel

1966
13
Formal opening by Harold Wilson 1966.

Dec 1966
14
NINA beam on 2nd December 1966.

15
NINA Parameters

• Type fast cycling e- synchrotron
• Circumference 220 m
• Rep. frequency 53 Hz
• Injection energy 43 MeV
• Normal peak energy 4.0 GeV
• Maximum peak energy 5.4 GeV
• Max. circ. current 35 mA
• Max. extract. current 1 ? A
• Number of dipoles 40
• Peak field (5.4 GeV) 0.9 T
• Radiation loss (5GeV) 2.7 MeV

16
Experimental hall being expanded.
1970
17
Later layout of experimental hall.

18
K0 beam passes through the wall!

c 1969
19
H.E.P experiments
20
The Mancaster spectrometer.

21
Ian Munroe proposes an s.r. facility

Jan. 1966.
22
Layout of s.r. experiment inside the NINA tunnel

Annual Report, 1968 The wavelength range
accessible ... extends only down to 2000 Å due to
the quartz window....
23
Ian Munroe and Scott Hamilton

1968
24
Looking up-stream

25
S.R. beam line inside NINA tunnel

1969 Annual Report
26
S.R. intensity from NINA, 5 GeV, 15 mA.

1974 Annual Report
27
NINA beam energy/time (4GeV operation)

28
NINA critical wavelength/time (4 GeV)

29
NINA s.r power/time (4 GeV)

30
Proposed national s.r. facility (1Å -2000Å)

1969 Annual Report
31
SRC Paper supporting a national fascility

15th April 1970
32
Proposed layout of new S.R.F.
1970 Annual report The Science Research Council
has agreed to fund the setting up of a national
facility at Daresbury..to use synchrotron
radiation from NINA.
Construction started before the end of 1970
and..is due to become operational at the
beginning of 1972.
33
S.R.F. layout c 1972

34
New SRF building.

1971 Annual Report
35
Two s.r. beams now go through the wall.

36
Experimental equipment in SRF

1971 Annual Report
37
Details of SRF layout

38
The Horizontal Wadsworth monochromator.

39
Ian Munroe tends his equipment

40
Joan Bordas and Geoff Worgan

41
The fully mature SRF.

1976
42
SRF Absorption Spectroscopy

1974 Annual Report
43
SRF photo-electron spectroscopy

1974 Annual Report
44
SRF Photo-ionisation of gasses

1974 Annual Report
45
SRF Small Angle Scattering

1974 Annual Report
46
The closure of NINA

1st April, 1977
47
Spectrum of Proposed New Storage Ring

c 1974
48
Proposed SRS layout

1974 Annual Report
49
First plans for SRS beam-lines

1974 Annual Report
50
NINA is gone the way is clear for the SRS
late 1977
51
Magnets for SRS booster synchrotron

1977
52
The SRS Booster takes shape
late 1977
53
Beam in the Booster Synchrotron

1979 Annual Report
54
Storage Ring Assembly advances

1979 Annual Report
55
The SRS Storage ring

late 1979
56
Storage Ring Commissioning

12th January 1981
57
The drive for high beam currents at rated energy

21st September 1981 479 mA at 0.6 GeV
(injection) 356 mA at 1.0 GeV 309 mA at 1.8
GeV 144 mA at 2.0 GeV.
58
Plans for VUV6 and XR7

1979 Annual Report
59
Monochromator being installed on beam-line 3.

60
Physics Today, May 1981

The SRS appears on the international stage the
worlds first, dedicated, purpose built
synchrotron source.
61
Early plans for a s.c.wiggler.

c 1977 note reference to 1 A beam max current
rating subsequently reduced to 350mA.
62
Design for 5 T s.c. wiggler

63
Installation on beam-line 9.

1983
64
Wiggler radiation down beam-line 9

Observed during commissioning in 1983. The
radiation has passed through 6mm of copper and is
split into 7 segments to serve separate
experimental areas.
65
Plans for the high-brightness-lattice (HBL)

Planning commenced early 1986, installation March
to June 1987.
66
H.B.L. advantages

• Lattice and brilliance parameters

67
First undulator to be installed (U5)

c 1985
68
Visible radiation from U5

69
Narrow gap vessel in m.p. wiggler

70
High field m.p. wiggler

71
Helical wiggler assembly

72

73

74
Commercial activities -DRS

c 1989
75
Typical LIGA devices, supported by DRS

76
Daresbury Analytical Research and Technology
Service

- set up in response to requests from industrial
SR users - a data collection service for
industry, utilising key SR techniques - gives
access to CLRC Daresbury Lab staff skills and
experience - provides beamtime - two targeted
types of customer - no need to become expert in
SR techniques, - competitive pricing based on
SR beamtime and manpower used, - full analysis
and interpretation provided - if required, -
fast turnround times possible in certain cases,
- confidentiality fully maintained.
commenced 1998
77
Helios 1

Accelerator design by DL staff Manufacture by
Oxford Instruments Delivered to IBM
Designed 1985 - 87
78
Helios parameters

• e- energy 700 MeV
• dipole bending field 4.5 T
• max. stored beam current 600 mA
• beam lifetime c 10 hours
• photon 'critical energy' 1.5 keV
• beam ports 20.

79
Helios lithography beam-lines

80
DIAMOND

Designed at Daresbury, 1992 present Manufacture
still strongly supported at DL Being built at
RAL.
81
DIAMOND insertion device spectra
82
The future for s.r. at Daresbury.

• the closure of the SRS in 2008.
• the construction of the ERLP!
• the construction of EMMA?
• the construction of 4 GLS?
