Title: Mobile Networks


1

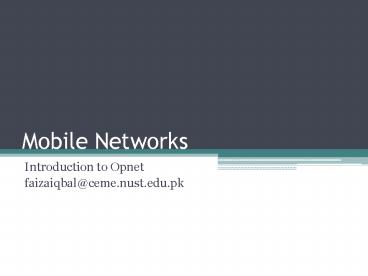

Mobile Networks
  • Introduction to Opnet
  • faizaiqbal_at_ceme.nust.edu.pk

2
Opnet Workflow
  • Project Editor

Run Simulation
View and Analyze Results
Create Network Models
Choose Statistics
3
Opnets editors
  • Network Models
  • Represent data networks
  • Run simulations on network
  • Node Models
  • Model devices in the network
  • Process Models
  • Represent communication protocols, CPUs, queuing
    systems

Process
Node
Network
4
Network model Project Editor
Project Editor Workspace
5
Node model Node editor
6
Process model Process Editor
  • Finite state machines (FSM)
  • States and transitions coded in C or C

7
And many more editors
  • Link editor
  • Path editor
  • Packet format editor
  • Probe editor
  • Simulation sequence editor
  • Modulation curve editor
  • Antenna pattern editor, etc.

8
Projects and Scenarios
  • Project-and-Scenario approach to modeling network
  • Project collection of related network scenarios.
  • Scenario is a single instance of the network.
    Typically, a scenario represents a unique
    configuration of the network.

9
The Project/Scenario Workflow
  • Create Project
  • Create Baseline Scenario
  • Import or create topology
  • Import or create traffic
  • Choose results
  • Run simulation, view results
  • Duplicate Scenario
  • Make changes
  • Re-run simulation
  • Compare results

Iterate
10
Object Hierarchy
  • Subnets represent various network objects in a
    single component (may contain various LAN, node
    and link models)
  • LAN a local area network abstracted as a single
    node
  • Nodes represent servers, switches, gateways,
    workstations, or any other physical device
  • Links represent the physical link between nodes

11
Organizing Models Object Palettes
  • An object palette is a graphical dialog box that
    displays a group of nodes and link models
  • Object palettes can be customized to contain only
    the nodes and links that we need

12
Run Simulation
View and Analyze Results
Create Network Models
Choose Statistics
1) Create the network
New project New scenario -gt Startup Wizard
Topology Rapid Configuration Star
Choose switch Choose wkst (30
stations) Size office network, 100 x 100
m
Object Palette Choose server
Choose link
between server and switch (10BaseT)
2) Create the traffic Object Palette
Application configuration (database access)
Profile definition
13
Run Simulation
View and Analyze Results
Create Network Models
Choose Statistics
3) Choose statistics
Object statistic (server) SERVER LOAD
(bps) Global statistic ETHERNET DELAY (sec)
4) Simulation Configure simulation
Time 0.5 h Seed
14
  • Well do the small internetwork example in the
    lab
  • Important concepts to remember
  • Project Editor gt to create a network
  • Node Editor gt to model network equipment
  • Process Editor gt to model modules (functions)
  • of the network equipment
  • Object Palette gt a collection of node models
  • Project scenario 1, scenario 2, ..

Process
Node
Network
15
Simple Client-Server Network
  • simple example of OPNET IT Guru to demonstrate
    the basic operations in creating and simulation a
    model

16
  • Start a new project File-gtNew...-gtProject. Give
    a useful name to the project and scenario (e.g.
    ProjectDemoClientServer).
  • Follow the dialog boxes, selecting the following
    options
  • Initial Topology Create Empty Scenario
  • Network Scale Office
  • Size 100m by 100m
  • Model Family ethernet

17
  • The office area will be created and the Object
    Palette opened. Place the following objects in
    the network Application Config
  • Profile Config
  • ethernet_wkstn (will be our client)
  • ethernet_server (will be our server)
  • ethernet16_switch (a 16 port switch to connect
    our client and server)
  • 100BaseT links (connect the client to switch and
    switch to server)

18
  • Give the objects meaningful names by right-click
    and select Set Name. E.g. Client, Switch, Server,
    Applications, Profiles.
  • In the Application Definition object (now called
    Applications), right-click and select Edit
    Attributes
  • Select Application Definitions and set the rows
    to 1
  • For Row 0, give the application a name (such as
    Web)
  • In the Description attribute, for HTTP, select
    Image Browsing Press Ok to close the attributes
    for the Applications.

19
  • Edit attributes for the Profiles, add a new
    profile with name Web User For the Web User
    profile, add a new application (set rows to 1)
  • Select the Web application Press Ok to close the
    attributes for the Profiles.
  • Right-click on the Server and select Edit
    Attributes Set Application Supported Services to
    All, and then press Ok
  • Right-click on the Client and select Edit
    Attributes Under Application Supported Profiles
    add a new row and select the Web User profile,
    then press Ok

20
  • Right-click on the Client and select Choose
    Individual Statistics Select all items under
    Client HTTP (they will have green ticks after you
    select them)
  • Repeat the above two steps for the Server and
    Switch, however select the statistics Server HTTP
    for the Server and Switch for the Switch.
  • From the main menu select Simulation-gtChoose
    Individual Statistics... Under Global Statistics,
    select all items under HTTP and Ethernet, and
    then press Ok

21
  • From the main menu select Simulation-gtConfigure
    Discrete Event Simulation... Press the Run
    button.
  • Your simulation will take several seconds to
    execute, finally ending with a message showing
    the Beginning simulation and time and Simulation
    Completed - Collating Results.
  • Press the Close button. From the main menu select
    Results-gtView Results... Select the following
    three statistics
  • Object Statistics-gtOffice Network-gtClient-gtClient
    HTTP-gtTraffic Sent (bytes/sec)
  • Object Statistics-gtOffice Network-gtClient-gtClient
    HTTP-gtTraffic Received (bytes/sec)
  • Object Statistics-gtOffice Network-gtClient-gtClient
    HTTP-gtPage Response Time (seconds)
  • Press the Show button

22
  • After looking at the results (you can right-click
    in the results window to make changes), return to
    the View Results window Click on the As Is option
    and select instead average, then press Show
    again.
  • Close both of the plot panels - select Hide for
    each.
  • Close the View Results window.

23
Lab Task
  • From the main menu select Scenarios-gtDuplicate
    Scenario... and select a name such as
    Client2_Server
  • Add a new client (you can use copy and paste) so
    you now have Client1 and Client2 From the main
    menu select Results-gtDelete All Panels
  • Choose the same statistics for Client2 as in the
    previous scenario, run a simulation and view the
    results again.
  • Compare the page response time for Client1 and
    Client2.
