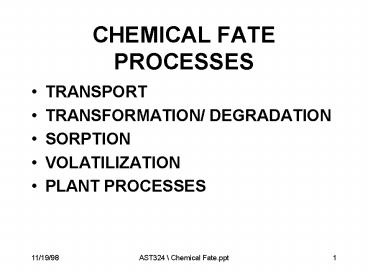

CHEMICAL FATE PROCESSES

1
CHEMICAL FATE PROCESSES

• TRANSPORT
• TRANSFORMATION/ DEGRADATION
• SORPTION
• VOLATILIZATION
• PLANT PROCESSES

2
PESTICIDE FATES
Atmospheric losses
Application
Crop Removal
Photo-Decomposition
Volatilization
RUNOFF (water and sediment)
Pest Uptake
ADSORPTION
Biological Decomposition
Leaching (water)
Chemical Decomposition
3
CHEMICAL TRANSPORT PROCESSES

• RUNOFF AND EROSION
• WIND
• LEACHING

4
Transformation and Degradation Processes

• Biological Transformations due to microorganisms
• aerobic
• anaerobic
• facultative
• Most Important

5
Transformation and Degradation Processes

• Chemical Transformations
• Hydrolysis
• Oxidation-Reduction
• Photochemical Processes
• Only in the presence of light
• Only on or near the surface

6
Transformation and Degradation Processes

• Usually assumed to follow a first-order linear
  function
• This leads to an exponential decay function for
  the concentration

7
Transformation and Degradation Processes

• K is the Degradation Coefficient
• K is related to the Half-Life of the chemical in
  the environment (TH)
• The Half-Life is the time required for the
  concentration of the chemical to become half of
  the initial value. Usually expressed in days.

8
Transformation and Degradation ProcessesEXAMPLE

• Metolachlor (Dual) TH90 days
• Initial Concentration 1.5 kg/ha
• Estimate the concentration at 120 days.

9
Transformation and Degradation Processes EXAMPLE

• TH90 days Co 1.5 kg/ ha
• Estimate the concentration at 120 days.
• Alternate Approximate Solution
• After 90 Days C 0.5x1.5 0.75 kg/ ha
• After 180 days C 0.5x0.75 0.375
• After 120 days 0.75 gt C gt 0.375 and closer to
  0.75. (approx. 0.6)

10
SOIL-WATER ADSORPTION PARTITIONING COEFFICIENT
Cs Kd Cw
1
Cs
Kd
Concentration in Soil
Linear, Instantaneous, Reversible Adsorption
Model
Concentration in Water Cw
11
Soil Properties Influencing Adsorption

• Organic Matter Content
• Clay Content
• Soil Water Content
• Soil Bulk Density
• Soil Temperature

12
Chemical Properties Influencing Adsorption

• Electronic Structure (ionic or non-ionic)
• Water Solubility
• Solution Composition
• Solution Concentration
• pH

13
Organic Carbon Partitioning Coefficient
14
Organic Carbon Partitioning CoefficientExample

• KOC200
• OM 3.5
• Kd 2003.5 / 172.4 4.06

15
Chemical Transport Pathways

• Kd gt 250 The chemical is so strongly adsorbed
  that very little will be transported except with
  eroded soil particles.
• 250 gt Kd gt 50 Transport depends on the sediment
  concentration of the runoff.
• 50 gt Kd gt 1 Enough will stay in solution that
  most will be transported with surface runoff
  water.

16
Chemical Transport Pathways

• 1 gt Kd gt 0.1 The loss pathway will depend on
  the amount of infiltration occurring prior to
  initiation of surface runoff.
• Kd lt 0.1 The chemical is so weakly adsorbed
  that the first rainfall will wash it into the
  soil profile before initiation of runoff.

17
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER

• GIVEN
• WA The total mass of chemical A in a liter of
  moist soil, mg / L
• ? The volumetric moisture content of the soil,
  L water/ L soil
• Kd The soil-water partitioning coefficient for
  chemical A, (L water/ kg soil)

18
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER

• GIVEN
• Bd The soil bulk density,
• kg soil / L soil
• FIND
• Cw Concentration of chemical A in the soil
  water, mg / L

19
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER

• SOLUTION
• Cw? mass of chemical A contained in the soil
  water, mg / L
• Cs Concentration of chemical A adsorbed on the
  soil particles, mg/kg
• Cs KdCw
• CsBd mass of chemical A adsorbed on the soil
  particles, mg / L
• CsBd KdCwBd

20
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER

• SOLUTION
• Total mass of chemical A in a liter of moist
  soil
• WA Cw? KdCwBd
• Cw(? KdBd)
• Cw WA/ (? KdBd)

21
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER

• EXAMPLE
• Chemical A is applied at a rate of 2 lb/ac on a
  field and incorporated to a depth of 2 in. The
  soil bulk density is 1.4 kg/ L and the moisture
  content is 20 by volume. The partitioning
  coefficient for this soil-chemical combination is
  5L/ kg.
• Determine the concentration of chemical A in the
  soil water.

22
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER
First determine the volume of soil in liters.
23
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER
Next determine the total mass of chemical in the
soil in mg/L
24
PARTITIONING OF CHEMICAL BETWEEN SOIL AND WATER
Now compute the concentration of chemical A in
the soil water
25
VOLATILIZATION

• Of concern for surface applied chemicals
• Particularly important for spray application
• Affected by
• temperature and soil water content
• adsorptivity and concentration
• vapor pressure and solubility (Henrys Constant)

26
Plant Processes affecting Chemicals

• Interception
• Washoff
• Root Uptake
• Translocation
• Residue Decay
• Harvest
