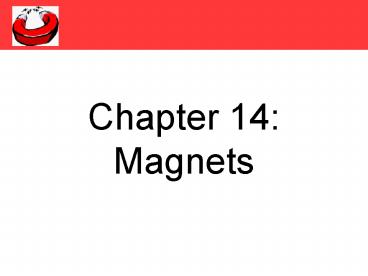

Chapter 14: Magnets

1
Chapter 14 Magnets
2
Magnets

• Some materials can be made into permanent
  magnets.
• Ex Iron?easy to magnetize, but loses it easily
• Cobalt?hard to magnetize, but doesnt lose it
  easily
• Magnets exert magnetic forces on each other.
• Ex nail can be temporary magnet.
• Like pole repel, opposite poles attract.

3
Magnetic Fields

• Used to detect magnetic force.
• The traits of magnetic fields
• Lines farther apart? weaker field
• Strongest at poles
• Compasses can track magnetic fields.
• Points in direction that lies along magnetic
  field.

4
(No Transcript)
5
(No Transcript)
6

• Earths magnetic field is like a bar magnet.
• Core too hot to retain magnetic properties.
• Magnetic field changes?171 reversals in 71
  million yrs. (magnetization preserved in
  sea-floor rocks)
• Earths magnetic poles arent the same as
  geographic poles (for now).
• N means north-seeking and S means
  south-seeking for historical reasons.

7
(No Transcript)
8
Magnets Electricity

• Electric currents produce magnetic fields.
• Right hand rule thumb direction of current
• fingers direction of magnetic
  field
• Magnetic field of a coil of wire resembles a bar
  magnet.
• Solenoid long, wound coil of insulated wire.
• Electromagnet magnetic field created by current
• Ex Junk yard magnet
• Magnetism is caused by moving charges
• Domain area of magnetic field

9
(No Transcript)
10

• Electromagnetic devices
• Galvanometers detect measure current voltage.
• Electric motors convert electrical energy to
  mechanical energy.
• Stereo speakers use magnetic force to produce
  sound.

11
Electric Currents from Magnetism

• Electromagnetic induction production of a
  current in a conducting circuit by a change in
  strength, position, or orientation of an external
  magnetic field.
• Faradays Law an electric current is produced
  in a circuit by a changing magnetic field.
• Some bacteria contain magnetosomes, which align
  with the magnetic field. Human brain cells also
  contain magnetite crystals.

12
(No Transcript)
13

• Generators convert mechanical energy to
  electrical energy.
• Generators produce electrical energy to use in
  home, but not efficient.
• Alternating current (AC) electric current
  changes directions at regular intervals.
• Ex outlets in your house.

14

• Electromagnetic wave consists of electrical
  magnetic field waves at right angles.
• Transformers can change AC and increase or
  decrease voltage.
• Real transformers contain 1000s of turns.

15
BACK
16
BACK
17
BACK
18
Galvanometer
BACK
19
Electric Motor
BACK
20
BACK
21
Transformers
BACK
22
