What is a lake

1

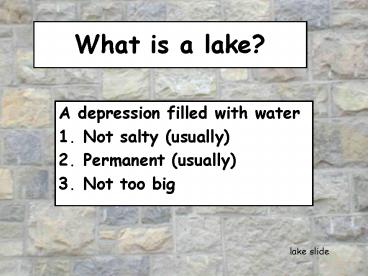

What is a lake?

• A depression filled with water
• Not salty (usually)
• Permanent (usually)
• Not too big

lake slide
2
Depression the lake BASIN
3
Origin of lake basins

• 168 pages in Hutchinsons Treatise on Limnology
  76 ways lake basins are formed

4
I. Tectonic basins

• Earthquakes
• Reelfoot Lake, TN 1811

slide
5
Graben Lakes
Depressions between tectonic plates Located in
areas of seismic activity Typically long and
narrow and deep Graben grave
Lake Tahoe, CA (502 m deep) Lake Baikal, Russia
(1,741 m deep) Lake Tanganyika, Africa (1,435 m)
3 slideS
6
I. Tectonic basins

• Changes in sea level uplift lakes
• 1. Lake Okeechobee, FL (4 m deep)
• Lake Drummond, VA (Dismal Swamp)
• Typically very shallow

Lake Okeechobee
7
II. Volcanic origin

• A. Filling of a caldera
• 1. Crater Lake, OR (610 m deep)
• Small watershed
• Very clear
• Secchi depth 60-70 m
• 2. Ecuadorian lake

Volcano Crater Lake (2) Ecuador lake
8
II. Volcanic origin

• B. Lava dam or mud flow
• 1. Lava dam (Oregon)
• 2. Spirit Lake, OR (Mt. St. Helens)

lava dam (2) Spirit Lake (2)
9
III. Lakes formed by ice

• (Mostly Pleistocene glaciation)
• A. Morainic Impoundment river valley dammed by
  the gravel till left at the end of glacial advance

Lateral moraine
Terminal moraine
Glacial advance
4 slides
10
A. Morainic impoundments

• Lake McDonald, MT
• Waterton Lake, Canada
• New York Finger Lakes

McDonald (3) Waterton NY
11
More morainic impoundments

• Tarn -- a small morainic impoundment, usually
  high in the mountains, at the base of a glacier
  or in the cirque where a glacier was.
• Paternoster lakes -- a series of morinic
  impoundments formed by the advance and retreat of
  a glacier

Avalanche Lake Siyeh Pass
12
Paternoster Lakes
Someone thought they looked like prayer beads
hence paternoster (Our Father )
13
B. Kettle Lakes (or prairie potholes)

• Formed from chunks of ice left behind by the
  glaciers
• Typically small and shallow
• Many have been filled in by the process of
  natural eutrophication

4 slides
14
C. Glacial scour lakes

• Great Lakes (though very complex tectonic
  processes also involved)

Slide of Great Lakes
15
D. Cryogenic lakes

• Formed by freezing and thawing in areas of
  permafrost
• Typically small and shallow
• Often oval and oriented with long axis
  perpendicular to the prevailing summer wind

Slide of tundra lakes
16
IV. Solution basins

• Formed by the dissolution of bedrock in an area
  of carbonate rock (e.g., limestone) when a
  sinkhole connects to underground water.

17
IV. Solution basins

• Montezuma Well, AZ
• Silver Springs, FL

Montezuma Well (2) Silver Springs
18
V. Landslides

• Landslide dams up a valley -- often temporary
• Gros Ventre River, WY, 1925
• Lake San Cristibol, Slumgullion landslide
• Mountain Lake

San Cristibol (2) Mnt. Lake (2)
19
VI. Fluviatile lakes

• Lakes formed by rivers
• Ponding by tributary sediments
• Lake Pipin, WI, where Chippawa R. joins
  Mississippi R.
• Oxbow lakes -- in floodplain

3 slides
20
VII. Deflation basins

• Lakes formed by wind
• Usually small
• Usually temporary

Oregon coast slide
21
VIII. Meteoric origin

• Meteor Crator, AZ
• Carolina Bays, SE U.S.
• 500,000
• Shallow
• NW-SE orientation

AZ (3) Carolina (2)
22
Carolina Bays

• Meteor shower
• Deflation basins
• Schooling fish (whale wallows)
• Solution basins
• Burning of peat

23
IX. Animal origin

• Beaver dams
• Pre-European 60-400 million in NA
• Killed 10,000/y in CN and MA in 1620-1630
• Killed 80,000/y in Hudson R. in 1630-1640
• 3rd leading export from Virginia at one time
• Almost extinct by 1900
• Now 6-12 million

2 slides
24
Reservoirs

• Human impoundment
• For over 4000 y
• Farm ponds to massive (Aswan -- 3.8 km)
• 12,000 in U.S. over 15 m high
• Typically dendritic
• Downstream effects

8 slides
