Design of Flexible Retaining Walls

1

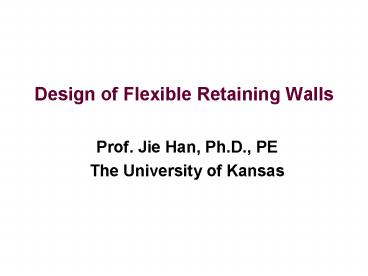

Design of Flexible Retaining Walls

• Prof. Jie Han, Ph.D., PE
• The University of Kansas

2
Outline of Presentation

• Design of Cantilever Sheet Pile Walls
• Design of Anchored Sheet Pile Walls
• Design of Braced Sheet Pile Walls
• Design of Slurry Walls
• Other Related Design

3
Flexible Retaining Walls
H
H
H
Anchor
Cantilever sheet pile wall (lt 3m)
Anchored sheet pile wall (gt 3m)
Braced sheet pile wall (gt 3m)
4

• Design of
• Cantilever Sheet Pile Walls

5
Wall Rotation
Pivot or rotation point
6
Theoretical Earth Pressure Distribution for Sands
H
Active
Sand
Passive
Passive
Active
7
Actual Earth Pressure Distribution
?a
?p
?p
8
Simplified Earth Pressure Distribution for Sands
?a
?p
?p
9
Earth Pressure Distribution for Sands (Details)

• Use a modified
• passive earth pressure
• coefficient Kp by a factor
• of 1.5 to 2.0
• Lines CD and DF have
• the same slope and the
• slope can be determined
• by
• ? ?? (Kp- Ka)

A
?a
B
C
D
E
?p
?p
F
G
10
Earth Pressure Distribution for Sands (Details)

• Determine z1 by
• z1 pa(B)/?
• z2 and z3 can be solved
• by
• Pa(AC)Pp(CE)- Pp(EF)
• MC(AC)Pp(EF)(z22z3/3)
• - Pp(CE)(z2/2)

A
?a
Pa(AC)
B
C
Pp(CE)
MC(AC)
D
E
?p
Pp(EF)
?p
F
G
11
Maximum Moment

• The maximum moment
• occurs where the shear
• equals zero
• The maximum moment
• should be less than the
• allowable flexural
• capacity

Mmax
zm
12
Earth Pressure Distribution for Two Sand Layers
13
Theoretical Earth Pressures for Clays
Active and passive earth pressures

• Short-term analysis
• - Based on undrained strengths (csu and ?0)
• Ka Kp 1
• Long-term analysis
• - Based on drained strengths (cc and ? ?)

14
Simplified Earth Pressure Distribution for Clays
Hc
Hc
H
H
4su-??H
4su??H
Short-term
Long-term
15

• Design of
• Anchored Sheet Pile Walls

16
Simplified Earth Pressure Distribution for Sands

• The embedment depth
• can be computed by
• MOPp(H-zfzp) Paza0
• The required anchorage
• resistance
• F Pa Pp

zF
F
O
za
H
Pa
zC
C
zp
D
Pp
??(Kp-Ka)(D-zC)
17
Simplified Earth Pressure Distribution for Clays

• The embedment depth
• can be computed by
• MOPp(H-zfD/2) Paza0
• The required anchorage
• resistance
• F Pa Pp

zF
F
O
za
H
Pa
??z
C
Pp
D
zp
(4c-??z)
18
Sheet-Pile Anchorages
Final ground
Anchor rod
Anchor rod
Excavation of trench to pour a deadman
Original ground
Piles
Cast-in-place deadman
Piles used as anchors
19
Sheet-Pile Anchorages
Steel rod
Auger hole
d
z1
Pressure grout anchor in soil or rock
L
Soil or rock (tieback) anchor
20
Load Capacity of Deadman Anchor
Passive zone
Active zone
Pp
Pa
F
?p
F (Pp - Pa)L/FS
L
FS 1.25 to 1.5
21
Sheet-Pile Anchorages
Auger hole
d
z1
L
22

• Design of
• Braced Sheet Pile Walls

23
Construction Sequence of Braced Wall
Earth pressure
Strut 1
Excavate
Add 1st strut
Excavate next depth
24
Construction Sequence of Braced Wall
Strut 2
3rd excavation
Add 2nd strut
25
Simplified Earth Pressure Distribution
0.65?HKa
?H 4c
(0.2 to 0.4)?H
0.25H
0.25H
H
0.50H
0.75H
0.25H
(a) Sand
(b) Soft to medium clay
(c) Stiff-fissured clay
26
Consistency vs. Unconfined Compression Strength
of Clays
qu
Consistency
tsf
kPa
Very soft
0 0.25
0 24
Soft
0.25 0.50
24 48
Medium
0.50 1.00
48 96
Stiff
1.00 2.00
96 192
Very stiff
2.00 4.00
192 383
Hard
gt 4.00
gt 383
27
Forces on Struts in Braced Sheet Pile Walls
FA
FA
Pa1
A
Hinge
zA
z1
FB
B


FC
C
FD
FD
D
FAzAPa1z1
FB1Pa1 - FA
28
Location of First Strut
Tension crack
The first strut location should not exceed the
depth of the potential tension crack
hc
29

• Slurry Walls

30
Construction of Slurry Walls

• Trench excavation
• Slurry for maintaining
• stability of excavation
• Backfilled with clay or
• concrete

Slurry
Filter skin
31
Design of Slurry Walls (Clay)
For clay without slurry, the critical depth is
With slurry in the trench (clay and undrained)
Clay
32
Design Example
Clay su 35kPa, ? 18.2kN/m2
FS 1.5
4 (35)
Solve for height
H
1.5 (18.2-?s)
?s
?s (kN/m3)
H (m)
(g/cm3)
1.1
10.79
12.6
1.15
11.28
13.5
1.2
11.77
14.5
1.25
12.26
15.7
33
Design of Slurry Walls (Sand)
With slurry in the trench (cohesionless soil)
Pa Pw
34

• Other Issues Related to Excavations

35
Wall Movement
Settlement, s
Deflection, d
Heave, sh
36
Settlement Calculation

• Steps
• Compute the wall
• deflection based earth
• pressures and wall
• properties, ?
• 2. Compute the volume
• of deflection, Vs
• 3. Compute distance of
• settlement influence, D
• D Htan(450-?/2)
• H H Hp
• Hp B if ?0 or Hp o.5B
• if ?gt0. Bexcavation width

D
s
d
H
sh
37
Settlement Calculation
Steps 4. Compute the surface Settlement at the
wall, sw 5. Assume a parabolic variation of
s, i.e.
D
x
s
sw
38
Base Stability
qs
The ultimate bearing Capacity
B
0.707B
Ht
su
Applied pressure
qb
Factor of Safety
FS qult/q gt1.2 to 1.5
39
Instability due to Seepage
The factor of safety against seepage
Ht
hw
hs
?s
Clay
Sand
