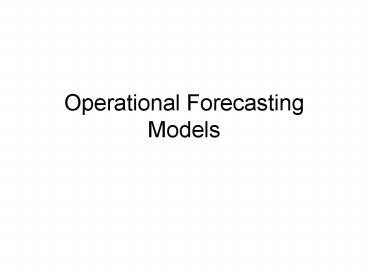

Operational Forecasting Models

1
Operational Forecasting Models
2
NWS Operational Models

• Global Forecasting System (GFS)
• North American Mesoscale (NAM)
• Eta (ETA)
• Nested Grid Model (NGM)
• Rapid Update Cycle (RUC)

3
Global Forecasting System (GFS)

• The GFS model was previously called the Aviation
  (AVN) model and the Medium Range Forecast (MRF)
  model.
• The GFS model was developed by the NWS as part of
  the Global Data Assimilation and Forecast System
  (GDAS).

4
GFS (Cont.)

• The GFS model was originally developed to improve
  forecasts of global, longwave weather systems.

5
GFS (Cont.)

• The GFS model
• is a global model,
• is a spectral model,

6
GFS (Cont.)

• The GFS model
• has 64 vertical levels,
• uses sigma as the vertical coordinate.
• is a hydrostatic model,

7
GFS (Cont.)

• The GFS model
• has a horizontal grid resolution of approximately
  80 km,
• is run to produce forecasts out to 384 hours.

8
The North American Mesoscale (NAM) Model

• The North American Mesoscale (NAM) model is
  designed to provide forecasters with high
  resolution guidance over the U.S. for short range
  forecasts.
• The Weather Research and Forecasting (WRF) model
  replaced the Eta model as the NAM model on June
  20, 2006.

9
NAM (Cont.)

• The NAM model
• is a regional model,
• is a grid-point model,

10
NAM (Cont.)

• The NAM model
• has 60 levels,
• uses sigma as the vertical coordinate,
• is a non-hydrostatic model.

11
The NAM (Cont.)

• The NAM model
• has a horizontal grid resolution of 12 km,
• is run to produce forecasts out to 84 hours.

12
The Eta (ETA) Model

• The ETA model was designed to provide forecasters
  with better guidance about convective
  precipitation, mesoscale flash floods and severe
  weather events.

13
ETA (Cont.)

• The Eta coordinate was developed to try to reduce
  errors in the computation of the horizontal
  pressure gradient force that can occur with the
  sigma vertical coordinate.
• The Eta coordinate is sometimes called the step
  mountain coordinate.

14
ETA (Cont.)

• The ETA model
• is a regional model,
• is a grid-point model.

15
ETA (Cont.)

• The ETA model
• has 60 levels,
• uses Eta as the vertical coordinate,
• is a hydrostatic model.

16
ETA (Cont.)

• The ETA model
• has a horizontal grid resolution of 12 km,
• is run to produce forecasts out to 84 hours.

17
Nested Grid Model (NGM)

• The Nested Grid Model (NGM) was introduced by the
  National Weather Service in 1985 as part of the
  Regional Analysis and Forecast System (RFAS).

18
NGM (Cont.)

• The purpose of the NGM was to provide improved
  numerical guidance through 48 hours, with
  principal emphasis on improved prediction of
  quantitative precipitation and significant
  weather events.

19
NGM (Cont.)

• The NGM has not been changed since 1990.

20
NGM (Cont.)

• The NGM
• is a regional model,
• is a grid-point model.

21
NGM (Cont.)

• The NGM
• has 18 levels,
• uses sigma as the vertical coordinate
• is a hydrostatic model.

22
NGM (Cont.)

• The NGM
• has a horizontal grid resolution of 80 km,
• is run to produce forecasts out to 48 hours.

23
Rapid Update Cycle (RUC) Model

• The Rapid Update Cycle (RUC) model was designed
  to provide accurate forecast guidance for weather
  sensitive users for the next 12 hour period.
• The RUC model was originally implemented in 1994
  and the current version is called RUC-13.

24
RUC Model (Cont.)

• The RUC model
• is a regional model,
• is a grid-point model.

25
RUC Model (Cont.)

• The RUC model
• has 50 levels,
• uses a hybrid isentropic-sigma coordinate,
• is a hydrostatic model.

26
RUC Model (Cont.)

• The RUC model
• has a horizontal grid resolution of 13 km,
• is run to produce forecasts out to 12 hours,
• is run every hour, as new data arrive.

27
Other Forecast Models

• Numerous other government agencies, universities,
  and private businesses in the U.S. and around the
  world run meteorological models to produce
  forecast guidance.

28
NOGAPS

• The U.S. Navy run the Naval Operational Global
  Atmospheric Prediction System (NOGAPS) which is a
  global spectral model with 30 vertical levels and
  a horizontal grid resolution of 55 km.

29
MM5

• The Penn State/NCAR Mesoscale Model version 5
  (MM5) is a grid-point model that can be
  configured to run for any location around the
  world.
• The Byrd Polar Research Center (BPRC) at Ohio
  State runs a version of MM5 centered on Ohio with
  a horizontal grid resolution of 30 km.

30
AFWA

• The Air Force Weather Agency (AFWA) runs a
  non-hydrostatic version of MM5 with 42 vertical
  levels and three nested grids with horizontal
  resolutions of 45 km, 15 km and 5 km.

31
GEM

• The Canadian Meteorogical Centre runs a Global
  Environmental Multiscale (GEM) model that has 58
  vertical levels and approximately a 50 km
  horizontal grid resolution.

32
UKMET and ECMWF

• Both the United Kingdom Meteorological Office
  (UKMET) and the European Center for Medium Range
  Weather Forecasting (ECMWF) run global models for
  weather forecasting.

33
Ensemble Forecasts

• Ensemble forecasts refer to the process of
  combining forecasts from multiple sources.
• For example, an ensemble model forecast might
  combine the results of different models, or
  combine the result of runs of the same model
  initialized with slightly different conditions.

34
NWS Global Ensemble

• The NWS runs a simplified version of the GFS in
  order to create its global ensemble guidance.
• The GFS ensemble consists of 20 members plus a
  control run.

35
NWS Global Ensemble (Cont.)

• The simplified version of the GFS model used for
  the ensemble runs
• has 28 levels, and
• has a horizontal grid resolution of approximately
  300 km.
