Isometric Axes

1

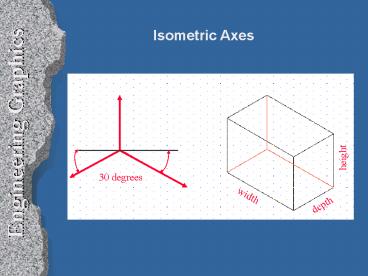

Isometric Axes
Engineering Graphics
height
30 degrees
width
depth
2
5 by 3 Rule for Isometric Sketching
5 Squares
Engineering Graphics
3 Squares
Keeps Lines at Approx.30 Degrees
from horizontal
3
Common Isometric Views
Engineering Graphics
4
Steps to Produce Isometric Pictorials
Engineering Graphics
5
Isometric Ellipses
Engineering Graphics
6
Isometric Cylindersand Holes
Look-through
Engineering Graphics
