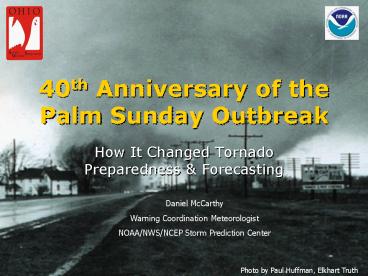

40th Anniversary of the Palm Sunday Outbreak

1
40th Anniversary of the Palm Sunday Outbreak

• How It Changed Tornado Preparedness Forecasting

Daniel McCarthy Warning Coordination
Meteorologist NOAA/NWS/NCEP Storm Prediction
Center
Photo by Paul Huffman, Elkhart Truth
2
Typical Parameters for OH Tornadoes

• gt 80 kt Mid Level Jet over OK
• Coupled ULJ and LLJ
• Area underneath ULJ exit region
• Steep Lapse Rates over the Plains
• Advecting into area behind cold front or dryline
• BRN Shear gt 80
• Presence of Deep Layer Shear

3
Fujita Attributed Outbreak to Several Facets

• Decrease in Best Lifted Index
• Pressure of best lifting
• Strong differential thermal advection
• Occurring with respect to the juxtoposition of
  intersecting jets
• First comprehensive aerial damage survey
• Led to theory of suction vortices
• Enhanced Super Outbreak

4
April 11-12, 1965

• 47 Tornadoes
• 21 Killer Tornadoes
• 260 Fatalities
• 3,442 Injuries

Most significant outbreak since March 18, 1925.
-Fujita
5
Fujitas Plot of Aerial Survey
6
850 mb 11APR65/1800 CST
From Fujita, et. al, 1970
7
500 mb 11APR65/1800 CST
From Fujita, et. al, 1970
8
200 mb 11APR65/1800 CST
From Fujita, et. al, 1970
9
Surface Analysis 1200 CST
From Fujita, et. al, 1970
10
Isotherm Analysis 1200 CST
From Fujita, et. al, 1970
11
Dayton Sounding 1200 UTC
12
Flint, MI Sounding 1200 UTC
13
Dayton, OH Sounding 0000 UTC
14
DAY NAM 24 HR FCST Sounding
15
LAN NAM 24 HR FCST Sounding
16
TOL NAM 24 HR FCST Sounding
17
NAM40 Surface
18
SFC Td Mean RH
19
500 mb Vorticity
20
Upper Jet
21
Low-Level Jet
22
Composite
23
Supercell Parameter

• Most Unstable CAPE (gt1000 Jkg-1)
• BRN Shear (gt40 kt)
• 0-3 km Storm Relative Helicity (gt100 m2s-2)

SCP MUCAPE BRN Shear SRH(0-3km)
24
Supercell Parameters
25
Differential Divergence
After Uccellini and Johnson, 1980
26
Fujitas Aerial Survey
From Fujita, et. al, 1970
27
Storm Data
28
Storm Data
29
Toledo Tornado
From Fujita, et. al, 1970
30
Toledo Tornado
31
IN into NW Ohio
From Fujita, et. al, 1970
32
Bluffton Tornado
From Fujita, et. al, 1970
33
Rockaway Tornado
From Fujita, et. al, 1970
34
Strongsville Tornado
From Fujita, et. al, 1970
35
From Weather Bureau Survey Team Report
36
Problems Identified

• Tornado Forecast issued for 6 hours
• Those interviewed didnt know the difference
  between forecast and warning
• No real urgency until warnings were heard on
  radio and TV
• Radar coverage (WSR-57) inadequate
• Nothing in tornado-prone areas
• Poor communication with media sources

37
Lessons Learned

• Watch/Warning terminology began
• Before 1966 were Tornado Forecasts
• Watches area definition simplified
• Use 4 or less points to define
• Circles, Triangles, portions of states (Florida
  South of line from Tampa to Melbourne, etc.
• Parallelograms implemented in 1970
• 60 miles either side of a line
• 60 miles north and south of a line

38
Lessons Learned

• Hold Preparedness Meetings
• Spotter Talks now
• Saturate public with material on tornadoes
• Ready-Set-Go
• Outlook-Watch-Warning
• Doppler Radar
• Better coverage by NWS
• Private companies provide ability to local TV

39
It Must Work!
40
Thank You!!
Any Questions?
Web Site www.spc.noaa.gov
e-mail Daniel.McCarthy_at_noaa.gov
