Automatic Thread Extraction with Decoupled Software Pipelining

1

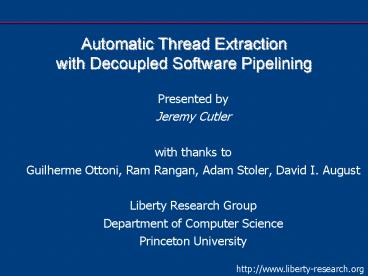

Automatic Thread Extraction with Decoupled
Software Pipelining

• Presented by
• Jeremy Cutler
• with thanks to
• Guilherme Ottoni, Ram Rangan, Adam Stoler, David
  I. August
• Liberty Research Group
• Department of Computer Science
• Princeton University

2
A Fundamental Change

• Transistor trend continues
• Clock rate limited by
• Power delivery
• Heat dissipation
• Design complexity

Source Intel, Wikipedia, Sutter/Dr. Dobbs Journal
3
The Response CMP

• For
• legacy apps (C/C)
• single-threaded
• sequential codes
• Speedup over single core
• 0.0
• Worse
• Shared resources (e.g. caches)
• Simple cores trend
• Must Extract Thread Parallelism!

IBM Power 5 (1.9GHz) Die Photo Source IBM
4
Existing Parallelization Approaches
(Non-speculative)
Scientific Codes (FORTRAN-like)
General-purpose Codes (legacy C/C)
for(i1 iltN i) // C ai ai 1 // X
while(ptr ptr-gtnext) // LD ptr-gtval
ptr-gtval 1 // X
DOACROSS Cytron, ICPP 86
DOALL
5
Pipelined Parallelism for General-Purpose Codes
while(ptr ptr-gtnext) // LD ptr-gtval
ptr-gtval 1 // X
DOACROSS
Decoupled Software Pipelining (DSWP)
Generalization of DOPIPE Davies, UIUC 81
6
Comparison DOALL, DOACROSS, DSWP
DOACROSS
DOALL
DSWP
1 iter/cycle
1 iter/cycle
1 iter/cycle
lat(comm) 1
1 iter/cycle
0.5 iter/cycle
1 iter/cycle
lat(comm) 2
7
Implementing Decoupled Software Pipelining (DSWP)
while(ptr ptr-gtnext) ptr-gtval ptr-gtval
1
Thread 1
Thread 2
Loop
Dependence Graph
DAGSCC
Inter-thread communication latency is a one-time
cost
8
Implementing Inter-Thread Control
DependencesNode Splitting
L1
L2
9
Handling Arbitrary Control Flow Control
Extensions to Dependence Graph
CFG

• Loop-iteration control dependences
• Traditional definition of control dependence
  Ferrante et al., TOPLAS 87 not appropriate for
  loops
• Conditional control dependences
• To implement inter-thread data dependences that
  may or may not occur
• Multi-threaded code generation from the extended
  dependence graph

10
Evaluation

• DSWP implemented in the back-end of IMPACT
  compiler
• Accurate dual-core Itanium 2 model
• Synchronization Array support for comm./sync.
• ISA extended with produce/consume instructions
• Important application loops selected (16-98
  total execution)

11
Evaluation
12
Partitioning and Parallelism181.mcf
Queue Occupancy (elements)
32
DAGSCC
Speedup
45
0
Time (cycles)
48
Time (cycles)
43
Time (cycles)
-2
Currently use a simple load-balancing heuristic
Time (cycles)
13
Evaluation Varying Processor Width

• Modified, half-width Itanium 2 models

1-Core
2-Core (used by DSWP)
Full-width
Half-width

• On half-width model, speedup from DSWP is larger
• Better performance compatibility
• More effective on simpler cores

14
What about more threads?
while(ptr ptr-gtnext) ptr-gtval ptr-gtval
1
2. DOALL Consumer
Producer
Dep. Graph
Consumer 1
Consumer 2
1. Multiple SCCs
15
Breaking SCCs Speculative DSWP
164.gzip 38 speedup with 3 threads
Only one SCC!
181.mcf 2.9x speedup with 4 threads
x
Mis-speculationdetected
x
16
Conclusion

• DSWP extracts pipelined thread-level parallelism
  from general-purpose, sequential programs
• More applicable than traditional parallelization
  techniques
• Handles arbitrary control flow
• Future research directions
• Additional analyses and optimizations
• Break dependence cycles code transformations,
  speculation
• Reduce communication
• Explore DOALL-consumer opportunities
