MACHINE RESCUE AWARENESS

1

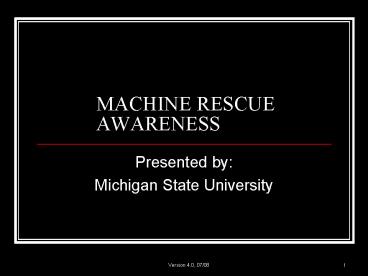

MACHINE RESCUE AWARENESS

• Presented by
• Michigan State University

2
Acknowledgments

• UAW
• Ford
• Focus Group
• Fire Service Instructors
• MIOSHA CET Grant

3
Details

• Restrooms
• Fire Exits
• Tent Cards
• Sign-In Sheet
• Registration Forms

4
Course Description

• 4-hour Awareness Level
• 24-hour Operations Level
• Technician Level

5
(No Transcript)
6
Introductions

• Name
• Job Title
• Machine Rescue Experience

7
Schedule

• Administration
• Introduction to Machine Rescue
• Rescue Scene Management
• EMS Awareness Level
• Final Activity

8
MSU Train-the-Trainer Certification

• Firefighter II
• MFR
• Educational Methodology
• Hazmat Operations Level
• Machine Rescue Operations Level
• Letter from Department
• Roster and Evaluations

9
Terminology

• Machine Rescue
• Rescue Mode
• Recovery Mode
• Large Machine
• Small Machine

10
Table of Contents

• Introduction to Machine Rescue
• Rescue Scene Management
• EMS Awareness

11
Module 1

• Introduction to Machine Rescue

12
Terminal Objective

• Identify general type of machinery and level or
  response

13
Module Outline

• Components of Machinery
• Machine Rescue Terminology
• Levels of Training

14
Lever
15
Pulleys
16
Wedge
17
Screw
18
Wheel and Axle
19
Cams
20
Crank and Rod
21
Gears
22
Chains and Belts
23
Ratchet
24
Compound Machine
25
Man Powered Machine
26
Steam Powered Machine
27
Horse Powered Machines
28
Types of Machine Power Source

• Electric
• Hydraulic
• Pneumatic
• Steam

29
Machine Designs

• Multitude of Tasks
• Simple Machines
• Complex Machines
• Variety of Power Sources

30
Letterman Video Clip
31
Machine Rescue

• Terminology

32
Rescue Mode
33
Recovery Mode
34
Small Machine
35
Large Machines
36
Terminology

• Assessment
• Approach Assessment
• Hazard Assessment
• Medical Assessment
• Extrication Assessment
• Size-Up

37
Terminology

• Rescue Team Officer
• Extrication Officer
• Medical Officer
• Hazards Officer

38
(No Transcript)
39
Terminology

• Risk/Benefit Analysis
• Hot Zone
• Warm Zone

40
Activity 1-1 Terminology

• Machine Rescue
• Approach Assessment
• Working Use of Terms

41
Activity 1-1 Terminology

• Machine 1

42
Activity 1-1 Terminology

• Machine 2

43
Awareness Level

• Recognize Need for Machine Rescue
• Identify Resources
• Initiate Proper Response
• Initiate Site Control and Scene Management
• Recognize General Hazards

44
Operations Level

• Awareness Level
• Size-Up
• Patient Locations and Survivability
• Make Rescue Scene Safe
• Protect Patient
• Access Patient

• Perform Extrication
• Mitigate and Manage General Hazards
• Obtain and Use Resources

45
Operations Level Limitations

• No more than 2 energy sources
• No stored energy
• No specialized fall protection
• No entry into confined spaces
• No lifting, moving or spreading forces over 6,000
  pounds
• No overhead rigging for lifting or stabilization

46
Conveyors
47
Small MachineGear-Chain- Belt Drives
48
Fork Lifts
49
Food Processing
50
Roller Press
51
Material Hoppers
52
Technician Level

• Operations Level
• Extrication from large machines
• Advanced stabilization
• Supervise personnel
• Extrication in confined spaces

53
Power Press
54
Robotics
55
Elevated Machinery
56
Incident 1
57
Incident 2
58
Incident 3
59
Module Summary

• Machine Rescue Terminology
• Components of Machinery
• Levels of Training

60
Module 2 Rescue Scene Management
61
Terminal Objective

• Apply principles of Rescue Scene Management

62
Module Outline

• 4-Phases of SOG
• Functional Components
• Operations Worksheets

63
Standard Operating Guideline

• STEP 1-Initial Actions
• STEP 2- Plan Development
• STEP 3- Sustained Actions
• STEP 4- Incident Termination

64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
Operation Worksheets

• Command Worksheet
• Approach Assessment
• Extrication Planning
• Resource List
• Incident Report

68
Step 1- Initial Actions

• APPROACH
• Determine a safe route
• Initial staging 50-100 feet from machine
• Begin Recon
• Assure PPE levels

69
Step 1- Initial Actions

• NOTIFICATION
• Establish command
• Activate the response system
• Develop a command staging area
• Assign initial action duties

70
Typical Machine Rescue Response

• Emergency Response Team
• Ambulance Company
• Local Fire Department

71
IDENTIFICATION

• Recon Assignment
• Hazard Identification
• Victim Information
• Machine Details
• On-site Resources

72
Hazard Identification

• Power Sources
• Electrical
• Pneumatic
• Hydraulic
• Stored Energy
• Energy Sources
• Gravity
• Momentum/ movement
• Tension

73
Hazard Identification

• Biological Hazards
• Blood-borne
• Airborne
• Urine
• Feces
• Physical Hazards
• Overhead objects
• Sharp objects
• Hot objects
• Slip/ trip
• Atmospheric Hazards

74
Victim Assessment

• Number of victims
• Their Location
• Their Condition

75
Machine Details

• Type of Machine
• Energy and Power sources
• Recycle potential
• Weight
• Above or below ground

76
ISOLATION

• Zoning
• Hot Zone, Warm Zone, Limit Access
• Evacuation
• Injured Victims, Untrained Rescuers, Bystanders,
  Unassigned Emergency Personnel, Trapped Victims
  (self-rescue)

77
(No Transcript)
78
PROTECTION

• Establish PPE Requirements
• Required items
• Prohibited items

79
PROTECTION

• Mitigate hazards from outside the machine
• Power/Energy
• Physical Hazards
• Control Nearby Machines
• Test/Control Atmosphere
• Control Utilities

80
(No Transcript)
81
(No Transcript)
82
(No Transcript)
83
(No Transcript)
84
Assignments for Initial Actions

• Recon
• Zoning (Site Control)
• Hazard Mitigation
• MEDICAL

85
Step 2- Plan Development

• Rescue/Recovery
• Offensive/Defensive
• Operations/Technician
• Resource Needs

86
Risk vs. Gain
87
Operations Level Machine

• Small machines
• No more than 2 power sources
• No stored energy
• Less than 3 tons

88
Typical Operations Level Machines

• Hoppers
• Conveyors
• Gears
• Gears
• Belts

• Pulleys
• Rollers
• Forklifts

89
Typical Technician Level Machines

• Large Machines
• Power Presses
• Robotics
• Machines in confined spaces
• Elevated machinery
• Extreme Loads (gt 6,000 lbs)

90
(No Transcript)
91
Step 2- Plan Development

• Rescue/ Recovery
• Offensive/ Defensive
• Operations/ Technician Level
• Resource Needs

92
Step 3-Sustained Actions
93
Step 3 Sustained Actions (Briefing)

• Scene Awareness
• Incident Action Plan
• Hazards
• PPE Requirements
• Victim Information
• Machine Details
• Decontamination/ Rehab areas
• Communications
• Primary Entry Team Communications
• Secondary Communications
• Emergency Signals

94
Step 3 Sustained Actions (Assignments)

• Hazards
• Recon
• Zoning
• Mitigation
• Medical
• Patient Assessment
• Stabilization
• Transport
• Extrication
• Lifting/ Moving
• Cutting
• Disassembly
• Support
• Equipment

95
Step 4-Incident Termination

96
Step 4-Incident Termination

• Personnel
• On Scene
• Follow up
• Equipment
• Recovery
• Inventory
• Recondition
• Restoration

97
Step 4-Incident Termination

• Site Transfer
• Official transfer to AHJ
• Documented time and name
• Briefing on conditions
• Documentation
• Internal incident report and narrative
• MFIRS

98
Functional Components
99
Module Summary

• 4-Phases of SOG
• Functional Components
• Operations Worksheets

100
Module 3

• EMS Awareness

101
Terminal Objective

• Demonstrate patient care techniques

102
Module Outline

• Duties and Responsibilities
• Medical Hazards
• Medical Resources
• Patient Assessment
• Injuries
• Short-Term Support

103
Duties and Responsibilities

• Prompt Response
• Safety of Responders
• Scene Overview
• Level of Medical Care

104
Medical Hazards

• Bloodborne Pathogens
• Airborne Pathogens
• Hazard Controls CARP
• Body/Substance Isolation

105
Medical Resources

• Nurse
• Doctor
• Emergency Response Team
• Police
• Fire
• EMS

106
Patient Assessment

• Size-Up
• Initial Assessment
• Head to Toe Exam
• Medical History
• Ongoing Assessment

107
Open Fractures
108
De-Gloving
109
Impalement
110
Amputations
111
Clamping Injury
112
Burns
113
Electric Shock
114
Crushed Limbs
115
Crush/ Compartment Syndrome
116
Scene 1

• Injury?
• Medical Hazards?
• Patient Care Provided?
• Level of EMS Response Needed?
• Info to Responding Medical Organization?

117
Scene 2

• Injury?
• Medical Hazards?
• Patient Care Provided?
• Level of EMS Response Needed?
• Info to Responding Medical Organization?

118
Scene 3

• Injury?
• Medical Hazards?
• Patient Care Provided?
• Level of EMS Response Needed?
• Info to Responding Medical Organization?

119
Short-Term Patient Support

• Need for Short-Term Support
• From Beneath or Above
• Makeshift Support
• Engineered Support

120
Short-Term Patient Support Engineered
121
Short-Term Patient SupportMakeshift
122
Module Summary

• Duties and Responsibilities
• Medical Hazards
• Medical Resources
• Patient Assessment
• Injuries
• Short-Term Support

123
First Due-Activity

• Establish and utilize an Incident Management
  System at a machine rescue incident.
• Conduct a size-up.
• Establish site control techniques..
• Identify resource needs.
• Recognize possible non-entry rescue operations.

124
Course Summary

• Module 1 Terminology, Components of Machinery
  and Levels of Response
• Module 2 Rescue Scene Management
• Module 3 EMS Awareness
