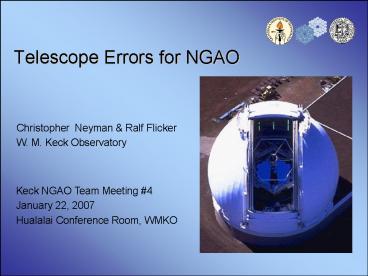

Telescope Errors for NGAO

1
Telescope Errors for NGAO
Christopher Neyman Ralf Flicker W. M. Keck
Observatory
Keck NGAO Team Meeting 4 January 22, 2007
Hualalai Conference Room, WMKO
2
Telescope Wavefront Errors WBS elements

• Changes in scope denoted in red
• 3.1.1.1.2 Telescope Dynamic Performance Data
• Improve/document our understanding of the actual
  primary mirror (telescope) wavefront errors. (set
  spec from simulation)
• 3.1.1.1.3 Telescope Static Wavefront Errors
• Improve/document our understanding of the actual
  primary mirror (telescope) wavefront errors. (set
  spec from simulation)
• 3.1.2.1.9 Telescope Wavefront Errors
• Review new data on the telescope static and
  dynamic wavefront errors. Determine how and
  whether NGAO can correct for these errors.
  Determine the performance benefit of a large
  LOWFS patrol field to enable use of the brightest
  possible NGS (Pending Results of LOWFS study).
  Consider whether a separate sensor outside the
  NGAO FOV would be useful for measuring/correcting
  the telescope errors. Complete when impact on
  current Keck LGS AO system understood and impact
  on NGAO reviewed

3
Overview Slide/Outline

• Telescope Dynamic Errors
• Segment tilt
• Full aperture tilt
• Static Errors
• Segment figure
• Segment phasing

4
AO simulation approach

• Simulate each effect individually, as opposed to
  all in numbers
• Useful for later parameterization in wavefront
  error budget
• Typical parameters
• NGS AO simulation
• 48x48 SH (4x4 pix per sub-ap, 0.5" pixel size),
• 49x49 actuators (Fried geometry)
• PZT modeled influence functions
• No turbulence
• No noise
• WFS integration time 1ms -gt integration 1
  frame delay (readout), pure integrator
• A standard SVD-based wavefront reconstructor was
  used.

5
Dynamic segment errors composite of several
data sets

• Segment motion datasets
• Primary actuator control system (ACS) fast data
  capture
• Erm (TMT) used ACS FDC to estimate segment
  motions
• Highly correlated motion, looks like focus mode
• Power at 29 Hz 10-20 mas rms motion
• Historical problems reconstructing wavefronts
  with this system
• Issues documented in KAON 199
• IF accelerometers on 3 M1 segments
• High noise
• Some uncorroborated peaks
• Calibration was uncertain
• 29 Hz power similar to ACS
• F. Dekens thesis
• Optical measurement 15 mas rms
• Partially correlated motion
• Vibration environment improved during intervening
  time (circa 1997)

6
Dynamic Segment Errors

• Adopt following baseline
• Uncorrelated segment motions
• 3 peaks at 28.3, 29.06, 29.68 Hz
• Total tilt 0.015 arc seconds rms
• Consistent with Dekens, ACS, IF

7
Dynamic Segment Errors

• Adopt following baseline
• Uncorrelated segment motions
• 3 peaks at 28.3, 29.06, 29.68 Hz
• Total tilt 0.015 arc seconds rms
• Consistent with Dekens, ACS, IF

8
Simulation results for dynamic segment tip tilt
errors
Adjusted loop gains for optimal results NGAO
June proposal allocation was 23 nm Last column
infinite bandwidth, no WF sensing/reconstruction
error
9
Snap shot of simulation time series shows AO
amplification
Top input Bottom residual

• Left to right 0.5x,1x,2x,4x baseline

0.5x 1x
2x 4x
10
AO reconstruction of segmented wavefront
amplifies error
Dekens conjectured that AO will increase the
errors in a segmented wavefront
AO sensor/reconstructor assumes continuous wave
front
AO correction results in tiled wavefront
Amplification of coherent tilts
11
AO reconstruction of segmented wavefront
amplifies error
Dekens conjectured that AO will increase the
errors in a segmented wavefront
AO sensor/reconstructor assumes continuous wave
front
AO correction results in tiled wavefront
Amplification of incoherent tilts
12
Tip/tilt errors

• Same frequencies seen throughout observatory 29
  Hz
• IF Accelerometers on M2, M3
• High noise
• Some uncorroborated resonance's
• Calibration
• AO bandwidth error
• NGS data (van Dam et al. ,Applied Optics 2004)
• STRAP telemetry? (Future)
• NGWFC telemetry? (Future)
• AO simulation
• No significant rejection below 300 Hz sampling
• Poor performance on faint NGS for tracking

13
Static segment figures errors

• CfAO poster results
• UFS segment reconstruction

14
Static segment piston errors

• PCS phasing errors
• 60nm (nominal)
• 10nm (best algorithm)
• Did not include interaction with segment figures
• makes actual wavefront error higher than phasing
  error alone
• AO stack algorithm (future)

100nm rms input
Residual Input

15
Summary of simulation results

• Full aperture tip tilt errors could dominate
  tip/tilt error budget
• Poor sky coverage
• Encircled Energy Science might be impacted less
• Segment motion
• Acceptable error, comparable to NGAO proposal
• Segment figures
• Acceptable error, already included in NGAO
  proposal
• Segment phasing
• Small, interaction with figure errors not tested

16
NGAO instrument system for image stabilization

• Idea scale up commercial image stabilization
  lens by 100x
• How use several uncorrected NGS outside NGAO
  field to stabilize telescope
• Conventional system requires
• 300-600 Hz sampling factor 10x-20x for f-3db
  30Hz
• Large SNR for seeing limited spots scent
  FWHM/SNR
• Limiting magnitude 14, full aperture tilt
• Requires 20 arc minute FOV

17
NGAO instrument system for image stabilization

• Assume IF KAT parametric oscillator as typical of
  improvement
• good rejection at 50-100 Hz sampling
• Limiting magnitude 16, full aperture tilt
• Requires 5 arc minute FOV
• Consider possibility of extended field LOWFS
  (ExLOWFS)
• Could be key for NGAO meeting its error budget

18
NGAO PCS all the time

• Current PCS subapertures would provide low sky
  coverage
• Full aperture solutions for phasing telescope
• Phase Discontinuity Sensing (PDS) - Chanan
• Donut Tokovinin (Neyman MAGIQ guider upgrade)
• Limiting magnitude 15 R mag with minute exposure
  times
• Not needed NGAO appears to cope with current
  errors
• Sample PDS images
• Left Phased
• Right One Segment
• Poked

19
References

• T. Erm, Report of the Keck mission March 10-19
  Part 1. Vibrations, Caltech, 3-31-2004
• T. Erm, Analysis of Keck vibration data from
  4/16/04, 4/29/04, 5/1/04, Caltech, 4-16-2004
• F. Dekens, Atmospheric characterization for
  adaptive optics at the W. M. Keck and Hale
  telescopes, PhD thesis, UCI, 1999
• G. Chanan, et al., The W. M. Keck Telescope
  phasing camera system, SPIE 2198, 1994
• G. Chanan, et al., Phasing the mirror segments
  of the W. M. Keck Telescope II the narrow-band
  phasing algorithm, Applied Optics, 2000
• van Dam, et al., Performance of the Keck
  Observatory adaptive-optics system, Applied
  Optics, 2004
• E. Johansson and G. Chanan, Summary of WFS/FDC
  Vibration Tests, KOAN 199, 2000.
