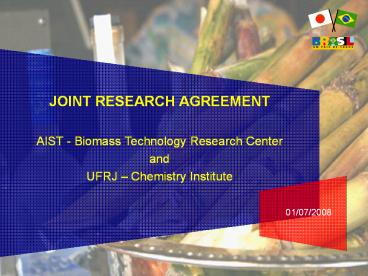

JOINT RESEARCH AGREEMENT

1
JOINT RESEARCH AGREEMENT AIST - Biomass
Technology Research Center and UFRJ Chemistry
Institute
01/07/2008
2
COLLABORATION AREA Research on Sustainable
Biofuel Production from Lignocellulosic Biomass
Resources
01/07/2008
3
PRINCIPLES

• Sustainable zero-carbon emission total system of
  biofuels production
• No competition with food production
• Bioethanol from lignocellulosic biomass resources
• Mainly from sugarcane biomass residue (bagasse)
• Using non- acidic pretreatments
• Enzymatic hydrolysis
• Ethanol fermentation

4
Estimate for 2008 (April 29th)

• Biggest production ever

From 607.8 to 631.5 million tons of sugarcane
will be harvested
Brazil will produce 26.4 - 27.4 billion liters of
ethanol
4.2 billion liters will be exported (2.5 billion
liters to the USA)
Figures are 14.9 to 19.4 higher in comparison
to 2007
Source www.conab.gov.br
5
Biomass Ethanol
6
Sugarcane Plantation
Mechanized?Straw
Haverst
Non mechanized
7
Ethanol from Biomass Residue
Straw and/or Bagasse ? ETHANOL
8
ENZYMATIC Saccharification
Buffer treated corn stover
Enzyme treated corn stover
Acknowledgement NREL - USA
9
Bagasse production and availability/year (kg)
Theoretical ethanol yield from sugarcane biomass
cellulose
10
ETHANOL PRODUCTION VIA ENZYMATIC HYDROLYSIS OF
SUGAR-CANE BAGASSE AND STRAW BRAZILIAN
BIOETHANOL PROJECT Elba P. S. Bon - Scientific
Coordinator Chemistry Institute Federal
University of Rio de Janeiro - Brazil elba1996_at_iq.
ufrj.br
01/07/2008
11
The BIO-ETHANOL Project - Synopsis
RESEARCH NETWORK to develop in Brazil the
technology for the conversion of the sugarcane
biomass (bagasse and straw) into fuel ethanol
using enzymatic hydrolysis.
12
Main Research Areas

• Development of biomass pre-treatment processes
  for sugar cane bagasse and straw
• Raw and pre-treated biomass characterization
• Cellulases / xylanases production
• Enzymatic hydrolysis
• Sugars syrups characterization
• Ethanol fermentation (C6)
• C5 sugars and lignin uses
• Energy optimisation
• Effluents and water

13
Process Overview
Pre-treatment

• Steam explosion
• Milling

Pre treatment
Sugarcane biomass
Enzymatic hydrolysis
Harvest
Fermentation
Destilation
Ethanol
Enzyme Production
Trichoderma reesei RUT C30 and Aspergillus awamori
14
Enzymes Production Area
15
Principles

• Enzyme cost contribution and effectiveness
  depends on the biomass source and pre-treatment
  conditions
• Development of tailored made enzyme blends for
  sugarcane biomass
• Use of crude cellulase/xylanase /accessory
  enzymes preparations
• In house production to reduce cost

16
Sugarcane bagasse enzymatic hydrolysis using
Trichoderma reesei cellulase
17
BIOMASS
Sugarcane Bagasse
Treated Sugarcane Bagasse
18
HYDROLYSIS RESULTS
Hydrolysis of STEAM TREATED bagasse in presence
of an ACID CATALYST Lund University (STBA -
53 cellulose)
FPU/BGU LAC 1 CG 220 0,70 Spezyme CP 0,75
HYDROLYSIS EXPERIMENTS Volume 100 mL Bagasse
conc. 25 g/L ENZYME LOAD 10 FPU/G

• ENZYMES
• GC 220 (Genencor)
• Spezyme CP (Genencor)
• Produced on lactose (LAC)

19
Preliminary hydrolysis experiments using milled
Eucalyptus provided by the AIST Biomass Research
Centre JAPAN
20
HYDROLYSIS EXPERIMENTS USING Eucalyptus
21

• MILLING DOES NOT
•  USE WATER, HIGH TEMPERATURE OR PRESSURE
• ALTER THE BIOMASS COMPONENTS CHEMICALLY
  (ADVANTAGE FOR BIOREFINARY)
• GENERATE INHIBITORS FOR THE HYDROLYSIS AND
  FERMENTATION STEPS
• GENERATE POLLUTANT WATER STREAMS AND SALT
•
• MAY BE EASIER TO SCALE UP IN COMPARISON TO STEAM
  EXPLOSION
• IT IS SAFER TO OPERATE
• ENERGY CONSUMPTION AND MAINTENANCE ARE THE
  SENSITIVE ASPECTS

22
MILLED EUCALYPTUS HYDROLYSIS RESULTS

• Milled Eucalyptus particle size 25 micrometer
• Eucalyptus contains 42 of cellulose
•  Hydrolysis biomass 25g/L, 10 FPU/g, 50ºC, 200
  rpm
• Hydrolysis yields 98 using the ENZYTEC blend
  and 92 using the Acremonium enzyme
• Faster process using the ENZYTEC enzyme

23
HYDROLYSIS RESULTS
Hydrolysis of STEAM TREATED bagasse in presence
of an ACID CATALYST Lund University (STBA -
53 cellulose)
FPU/BGU LAC 1 CG 220 0,70 Spezyme CP 0,75
HYDROLYSIS EXPERIMENTS Volume 100 mL Bagasse
conc. 25 g/L ENZYME LOAD 10 FPU/G

• ENZYMES
• GC 220 (Genencor)
• Spezyme CP (Genencor)
• Produced on lactose (LAC)

24
Sugarcane biomass hydrolysis using the ENZITEC
enzyme blend
25
HYDROLYSIS EXPERIMENTS (STBA 53 cellulose)

• 130 g/L of treated sugarcane bagasse
• ENZITEC blend 10 FPU/g
• Sodium citrate buffer pH 4.8
• Temperature - 50ºC
• Agitation - 200 rpm

26
STBA HYDROLYSIS RESULTS

Glucose Syrup 60 g/L (87Yield)
Ethanol fermentation
Lignin
STBA ENZITEC Enzyme
Solid hydrophobic fuel
27
